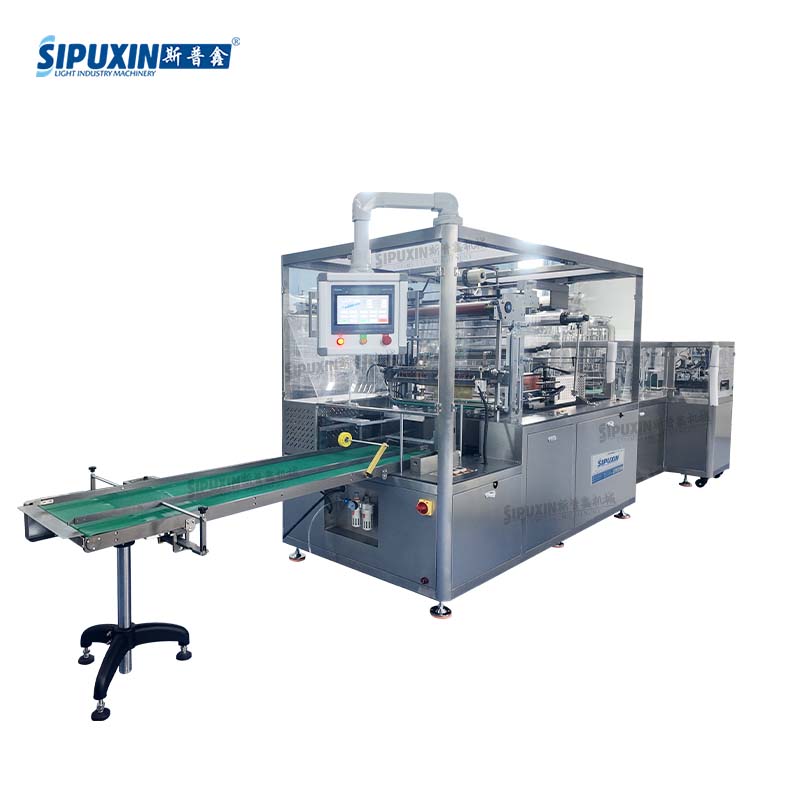

Fully Automatic High Speed Cosmetic Carton Wrapping Machine Cellophane Cigarette Box Overwrapping Packaging Machine

spx-w624-zxw

SIPUXIN High Speed Cellophane Wrapping Machine Auto Cigarette Box Film Overwrapper For Cosmetic Pharmaceutical Carton Packaging Equipment

Quantity:

Contact Now

add to cart

Video Description

Fully Automatic High Speed Cosmetic Carton Wrapping Machine Cellophane Cigarette Box Overwrapping Packaging Machine

Machine composition:

consists of feeding conveyor, film unwinding device, folding wrapping mechanism, hot sealing assembly, PLC touch control system, stainless steel frame with transparent safety shield and finished product discharge conveyor. All key transmission parts adopt servo motor and precision gear bearing for stable high-speed running.

Usage and Application:

It adopts fully automatic integrated workflow: auto feeding, film wrapping, folding, heat sealing and discharging. Users only need to set speed and temperature on touch screen, replace molds to match different carton dimensions for continuous mass production. Suitable for transparent cellophane film wrapping of square hard boxes, covering cosmetic, pharmaceutical, tobacco, tea and daily commodity industries, to realize dust-proof, moisture-proof and high-grade anti-counterfeit packaging for perfume, medicine, cigarette, mask and gift cartons.

Core Advantage

Detailed Version

1. Fully Automatic High-Speed OperationServo-controlled transmission system supports stable continuous wrapping, production speed reaches 30–80 cartons per minute, greatly cutting manual labor cost and boosting output efficiency.

2. Precise & Neat Wrapping EffectMulti-group adjustable folding mechanisms ensure flat film folds without wrinkles or bubbles; constant-temperature hot sealing delivers firm, smooth sealing lines for premium shelf appearance and anti-counterfeit performance.

3. Wide Compatibility & Easy Size SwitchingQuick-change forming molds fit various square hard cartons (perfume boxes, medicine boxes, cigarette packs, tea gift boxes). Parameters can be saved on PLC touch screen for one-click recall when switching product specifications.

4. Safe & Sanitary StructureFull SUS304 stainless steel body with fully enclosed transparent safety guards, dust-proof and easy to clean, complying with cosmetic and pharmaceutical hygiene standards; equipped with emergency stop and overload protection to avoid operational risks.

5. Low Operation Cost & Long Service LifeEnergy-saving constant-temperature heating module reduces power consumption; core transmission parts use high-precision gears and wear-resistant bearings, featuring low noise, stable running and long service life with minimal maintenance.

6. User-Friendly Intelligent ControlColor touch screen PLC control panel supports visual parameter adjustment, fault self-diagnosis and real-time running status display, lowering technical thresholds for new operators.

Item	Specification
Production Capacity	40–60 cartons/min
Applicable Carton Size	Max L200×W150×H80mm; Min L50×W30×H20mm
Power Supply	AC 380V/220V, 50/60Hz
Total Power	3.5kW
Air Pressure	0.5–0.7MPa
Sealing Temp	0–300℃, PID constant temperature control
Control System	PLC + color touch screen, parameter storage & one-click recall
Drive System	Servo motor + precision gear reducer for accurate positioning
Heating System	Independent temperature control for upper & lower sealing heads
Machine Frame	Full SUS304 stainless steel, corrosion-resistant & easy to clean
Safety Protection	Transparent safety shield, emergency stop, overload & overheat protection
Conveying & Film Unit	Anti-slip PVC conveyor, auto tension film unwinding, pneumatic cutting
Applicable Industries	Cosmetic, pharmaceutical, tobacco, daily commodity, food & gift
Applicable Products	Perfume boxes, medicine cartons, cigarette packs, tea, mask & gift boxes
Packaging Functions	Dustproof, moisture-proof, anti-counterfeiting, crease shaping
Compatible Films	BOPP, PVC, PET, aluminized film
