Ultrasonic Master-Slave Tube Sealing Machine
Product Introduction

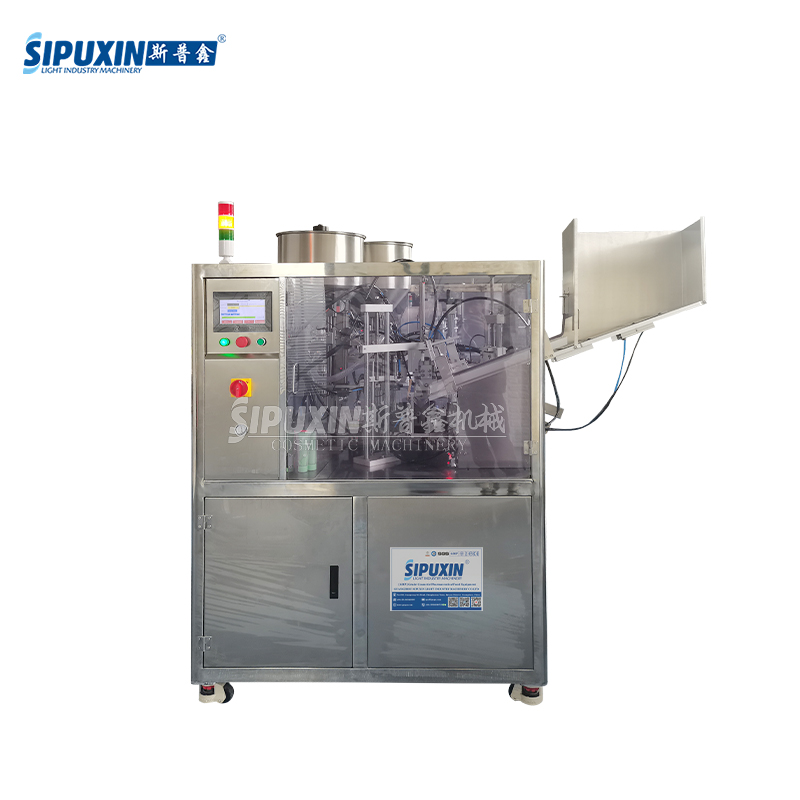

SIPUXIN Master-Slave Tube Ultrasonic Filling Sealing Machine is professional packaging equipment for double-layer tube (tube-in-tube / master-slave tube). Different from ordinary single-tube filling machines, it features dual independent dosing systems, which realize separate filling of two raw materials in inner and outer tubes.
Ultrasonic sealing replaces traditional hot air heating. It only generates localized high-frequency welding, so the tube surface will not overheat, keeping cosmetic active ingredients stable. It is the preferred equipment for two-component cleansing tubes, dual-effect skincare cream tubes and medical compound ointment.
Working Flow
Automatic Tube Feeding → Tube Positioning & Color Mark Alignment → Independent Inner & Outer Tube Quantitative Filling → Ultrasonic Sealing → Tail Trimming → Finished Product Discharge
Core Advantages
Dual independent filling channels, no material cross-contamination
Ultrasonic local sealing, no tube deformation, suitable for heat-sensitive formulas
PLC touch screen control, English operation interface
Pneumatic driving, stable running, “no tube no filling” protection
Main contact parts SUS304, SUS316L optional, meet cosmetic hygiene standard
Customizable filling volume & tube mold according to customer tube samples
Technical Parameters
Automation: Fully Automatic
Drive: Pneumatic
Speed: 30~50 tubes/min
Filling Accuracy: ±0.5%
Filling Range: Customized 10~1000ml
Air Pressure: 0.6~0.8Mpa
Voltage: 220V/50Hz
Applicable Tube: Plastic master-slave tube / tube-in-tube double-layer tube
Applicable Material: Cream, Lotion, Gel, Ointment, Dual paste cosmetic raw materials
Application Industry
Cosmetic, Daily Chemical, Pharmaceutical Industry
Two-component facial cleanser, dual-effect skincare cream, compound medical ointment, double gel tube products
Service
1 year warranty, lifelong technical support, overseas engineer on-site service available. We can customize machine structure and molds according to your tube samples and production requirements.
