SPX Automatic Double Head Heated Gear Pump Filling Machine

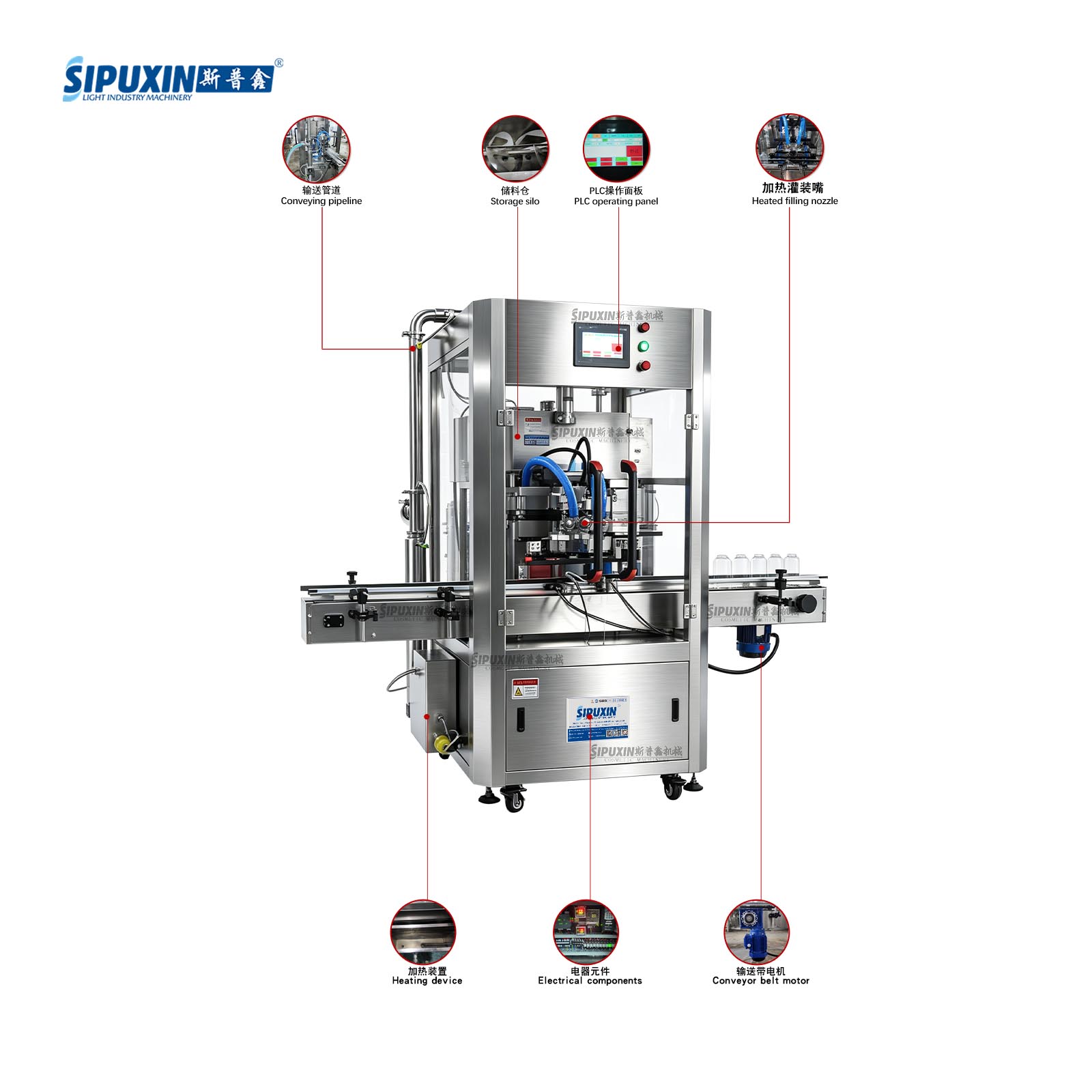

Automatic Double Head Heated Gear Pump Filling Machine
This double head heated gear pump filling machine is specially developed for high viscosity materials which are easy to solidify at room temperature, such as vaseline, body scrub, facial cream, body butter, wax paste and ointment.
With independent heating system for both storage tank and filling nozzles, it keeps materials in stable fluid status and prevents blockage. Servo gear pump ensures stable and accurate filling volume. The whole machine is made of food grade stainless steel, easy to disassemble and clean, meets cosmetic GMP requirement.
It can run independently or connect with capping machine, labeling machine to build a full automatic production line.
Technical Parameters
| Item | Specification |
|---|---|
| Machine Name | Automatic Double Head Heated Gear Pump Filling Machine |
| Filling Heads | 2 heads |
| Filling Range | 10–1000ml (customizable) |
| Filling Accuracy | ±1% |
| Heating Temperature | Room temp ~90℃ adjustable |
| Material Contact Part | SUS304 / SUS316L optional |
| Control System | PLC + Touch Screen |
| Bottle Type | Round bottle, flat bottle, wide mouth bottle |
| Power | 3.5kw |
| Voltage | 220V / 380V customizable |
Features
✅ Double-head simultaneous filling to improve production capacity
✅ Dual heating system: tank + filling nozzle anti-solidification & anti-dripping
✅ Servo gear pump, high filling precision, stable output
✅ SUS stainless steel body, easy disassembly & cleaning
✅ Quick parameter setting on touch screen, easy formula save & changeover
✅ Equipped with bottle detection, no bottle no fill function
Application Materials
Vaseline, body scrub, face cream, body butter, hair wax, ointment, cosmetic paste and other high viscosity materials easy to solidify.
Our Advantage
SIPUXIN is a professional cosmetic machinery manufacturer. We provide one-stop solution for cosmetic production line, custom machine according to your bottle and material, offer after-sales support, overseas installation & training service.
