SPX 200L Single-Tank Hydraulic Lifting Vacuum Emulsifying Machine

spx-e0829
SIPUXIN 200L Single‑tank Hydraulic Lifting Vacuum Emulsifying Machine, for producing cosmetic cream, lotion, ointment, mayonnaise and paste products. Equipped with hydraulic lifting cover, scrape wall stirring, high‑speed homogenizer, vacuum deaeration and electric heating. Contact us for detailed quotation.
Quantity:
Contact Now
add to cart

Product Overview

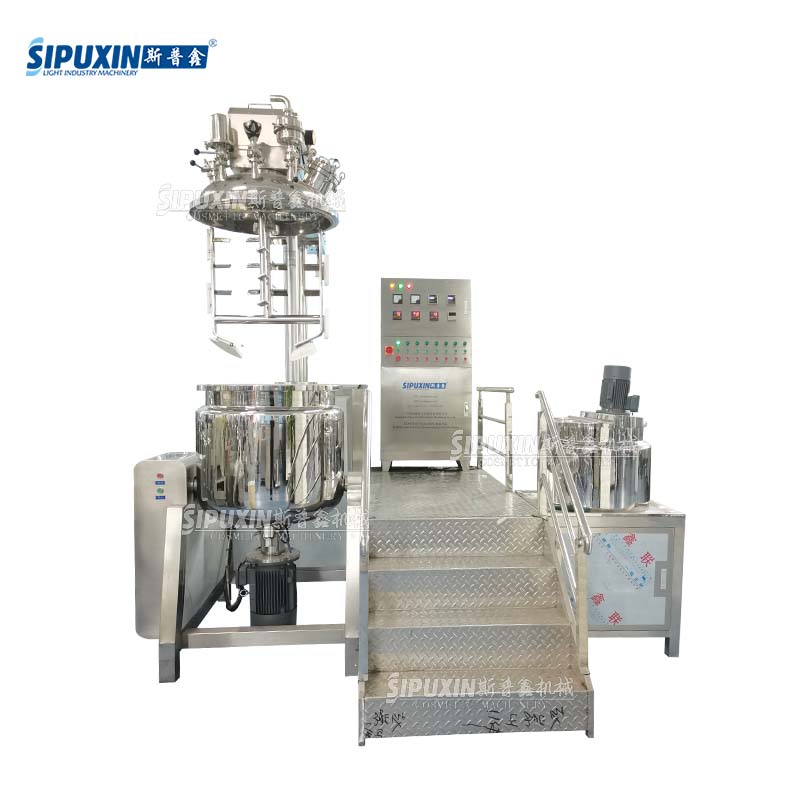

The 200L single‑tank hydraulic lifting vacuum emulsifying machine is designed for medium‑batch production of cream, lotion, ointment and food paste. The hydraulic lifting lid can be raised automatically, which brings great convenience for internal inspection, residue cleaning and formula test. Working under vacuum environment eliminates air bubbles inside finished products, improving product texture and stability. It is matched with independent water‑phase tank, electric heating oil‑jacket system, PLC control cabinet and operation platform.

Technical Parameters

ItemSpecification
ModelSPX‑ZJR200 Single‑tank Vacuum Emulsifier
Effective Volume200L
Main Tank MaterialContact parts SUS316L stainless steel; outer shell SUS304
Lifting ModeHydraulic lifting for top cover
HomogenizerBottom high‑shear homogenizer
Stirring SystemFrame type scrape‑wall slow stirring
Heating MethodElectric thermal‑oil jacket heating
Vacuum Degree‑0.09~‑0.098MPa
Supporting UnitWater phase dissolving tank, electric control cabinet, anti‑slip operation platform with stairs
ApplicationCosmetic cream, lotion, ointment, hand cream, mayonnaise, salad paste and other viscous materials


Main Features

  1. Hydraulic Lifting Structure: The top mixing‑homogenizer assembly lifts up and down hydraulically. Workers can clean tank interior and replace raw materials conveniently.
  2. Double Mixing System: Slow scrape‑wall frame stirring prevents material sticking to tank wall; bottom high‑speed homogenizer realizes ultra‑fine emulsification.
  3. Vacuum Defoaming Function: Mixing in vacuum condition removes air bubbles, finished paste is smooth without pores.
  4. Safe Heating System: Electric thermal oil jacket provides stable heating for paste production. Temperature can be set and displayed on control panel.
  5. Food‑grade Hygienic Design: All parts touching product use SUS316L stainless steel, polishing surface, easy to wash, meet cosmetic & food hygiene standard.

Application Scope

Cosmetic industry: Face cream, body butter, eye cream, hand cream, facial cleanser, lotion, ointment. Food industry: Mayonnaise, salad sauce, thick paste condiment. Pharmaceutical industry: Medical ointment, topical paste.

Our Service

  • Customized voltage & configuration according to your local requirement.
  • Complete equipment test before delivery.
  • Operation manual and video guidance provided.
  • After‑sales technical support.
