vacuum emulsifier

small capacity 50-200L vacuum emulsifier for cosmetic facial cream lotion ointment homogenizer mixing tank

spx-RH 100
Vacuum Emulsifier equipment refers to the equipment professionally used for high-speed shearing, dispersion and mixing of materials. It can make the material fully emulsified and fine, mixed evenly, and remove air bubbles in the production process. Professionally used for cosmetic cream materials and chemical cream materials.
Quantity:
Contact Now
add to cart
Product Overview
1.Our company produces a wide range of vacuum emulsifier. The homogenization system includes upper homogenization,lowerhomogenization, internal and external circulation homogenization. The mixing system includes one-way mixing, two-way mixing and
spiral ribbon mixing.
The lifting system includes single-cylinder lifting, which can be Customized according to customer requirements
1. The triple mixing adopts imported frequency converter to adjust the speed, which can meet the needs of different
processes
2. The homogeneous structure is made by German technology. The machine adopts imported double-end mechanical sealing effect. The maximum emulsification speed can reach 3500rpm, and the high shear fineness can reach 0.2-5μm.
3. Vacuum defoaming makes the material meet the requirements of sterility, and vacuum suction of the material can avoid dust.
4. The main pot cover can adopt a lifting system, which is convenient to clean, and the cleaning effect is more obvious. The main pot can be used for
inclined discharge The pot body is welded with 3 layers of imported stainless steel plates, and the pot body and pipes are mirror polished, which conforms to the GMP standard.
Product parameter
Product name
Vacuum homogenizing emulsifier
Material
SUS304/316
Application scope
cosmetic,food,  facial cream, shaving cream, sunscreen cream
Range of spindle speed
0-63 rpm, speed be adjusted
Capacity
 Design Capacity:120L, working capacity: 100L
Main vacuum pot power(KW)
3kw
Frequency mixing power(KW)
1.3KW
Vacuum pump(KW)
0.09-0.02Mpa, 1.1KW
Weight (KG)
450 KG
Heating types
Electric heating (15KW）steam heating（48KW)
Homogeneous speed
0-3000rpm, speed be adjusted

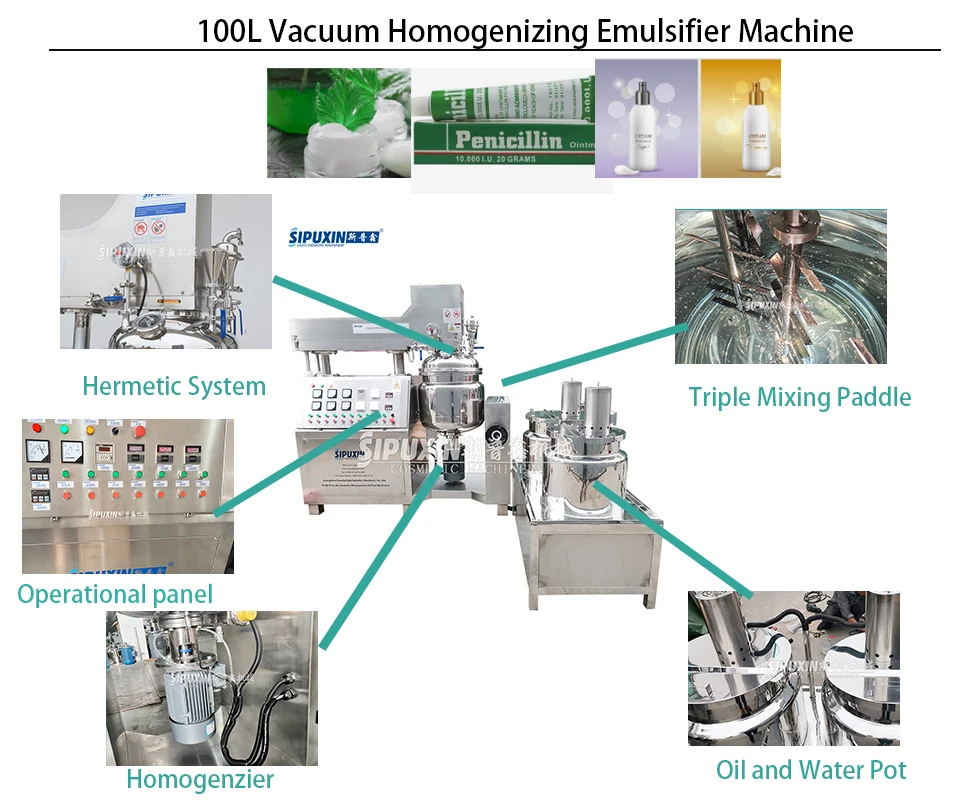

Machine components details
Details Images
Top Accessories
These accessories have functions can well perform tasks such as observation and mixing during the production process.
Button control pannel
The control panel convenient for the operator to operate various functions, adjustable frequency, quick start, and immediate stop, which is very sensitive.
Mixing system
the mixing system consists of inter fix paddle,scrapper mixer and clockwise direction blender,which the retation speed can reach 63 times per minute.and the perfect mixing result increase the mixing efficiency and performance,as well as heating efficiency.
Water Tank And Oil Tank
The water tank and fuel tank are pretreated by electric heating and stirring. On the one hand, it is to microprocess the material which is difficult to dissolve. The other is to reduce damage to the main pot.
