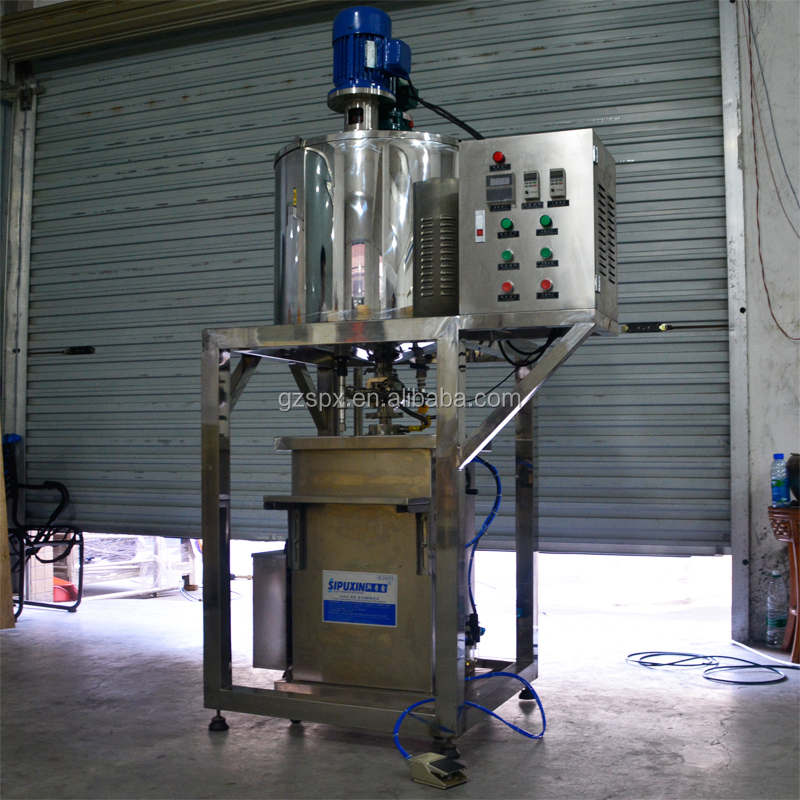

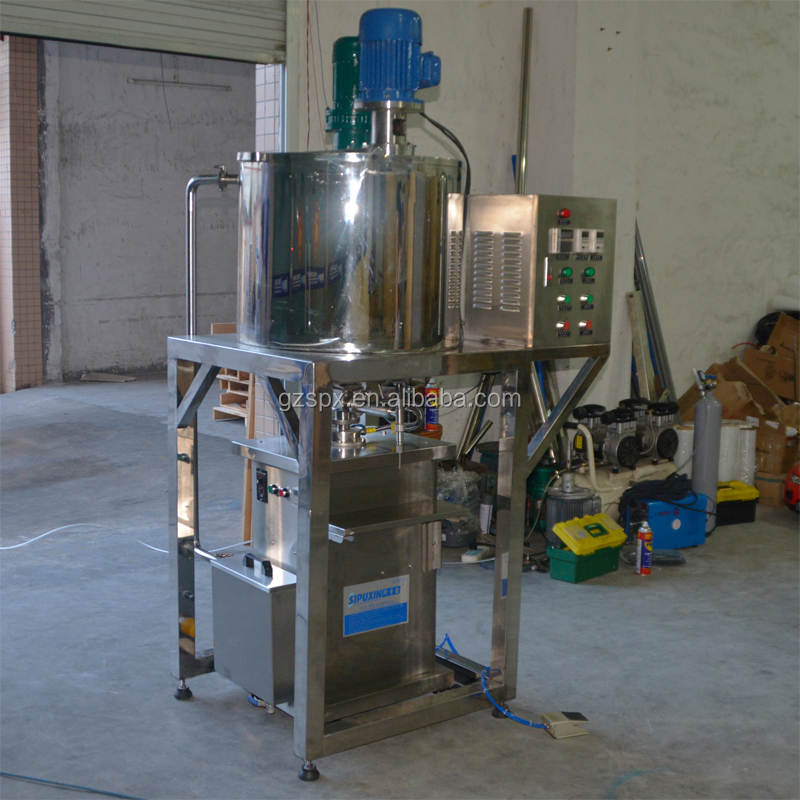

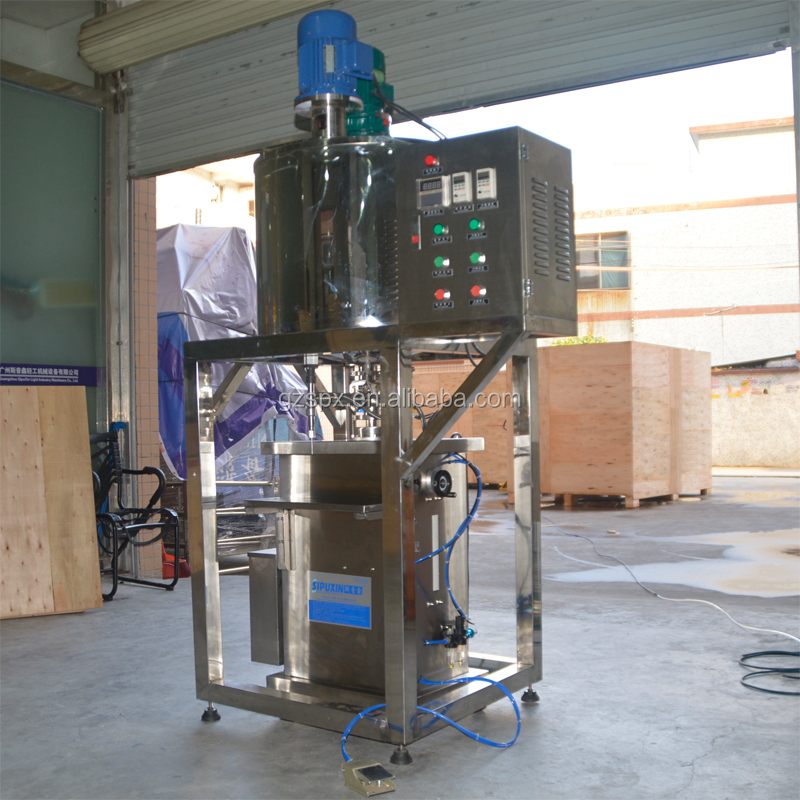

Sipuxin Semi Auto Filling Machine with Heating for High Standard Constant Temperature Filling Machine
Semi Auto Filling Machine with Heating for High Standard Lipstick Filling
This product suitable for filling ointment liquid and viscosity materials. Filled by hand or automatic system according to the speed .
Its principle of work is adopted the air compressor and air driven piston to complete the suction.
Structure & Performance
This product suitable for filling ointment liquid and viscosity materials.Filed by hand or automatic system according to the speed .
For manufacturing,pneumatic components are mostly adopts importedparts,such as pneumatic components using FESTO.
According to the needs,install of heating, stirring system.
The cylinder body adopts the high quality stainless steel, the piston is made of polytetrafluoroethylene , the cylinder connecting parts is connected with fast, convenient dismounting and cleaning.
Technical Parameter | |||||
Model | Filling volume (ml) | Filling precision | Air consumption (L/min) | Air sourcepressure(mpa) | Productivity (bot/min) |
SGZ-L-15 | 5-150 | ±0.2% | 23 | 0.2-0.8 | 20-50 |
SGZ-L-25 | 10-250 | ±0.2% | 30 | 0.2-0.8 | 20-50 |
SGZ-L-50 | 30-500 | ±0.2% | 44 | 0.2-0.8 | 20-40 |
SGZ-L-100 | 60-1000 | ±0.2% | 87 | 0.2-0.8 | 20-30 |
SGZ-L-250 | 250-2500 | ±0.2% | 160 | 0.4-0.8 | 10-25 |
SGZ-L-500 | 500-5000 | ±0.2% | 300 | 0.4-0.8 | 5-15 |

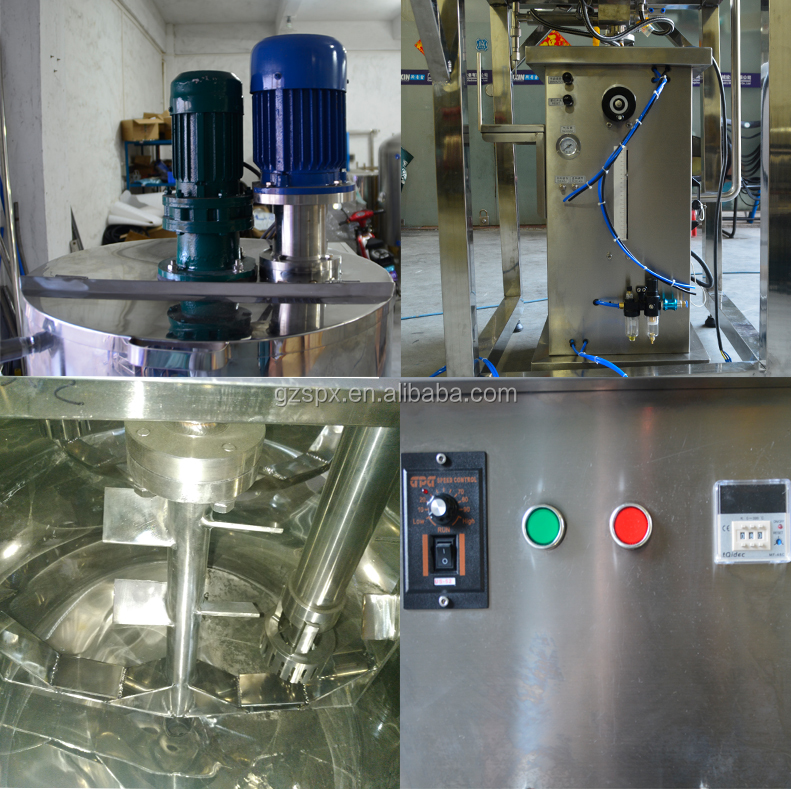

Details display
Products are exported to USA,Mexico,Brazil,Western Europe,Middle East, South Africa,Southeast Asia, Australia, etc. with long enjoyed a good reputation all over the world.
1. All the equipment provided by our company, we will be responsible for the installation and commissioning of equipment acceptance to product eligibility, normal acceptance of equipment, into the production state.
2. Responsible for layout design, process design and process design of equipment.
3. Provided normal equipment training, training 2-3 engineers and technicians for the demander, fully master the production process.
4.All the equipment provided 1 year guaranteed.
5. Life-long maintenance: in the period of the warranty period, a free door-to-door comprehensive service is provided every year.
