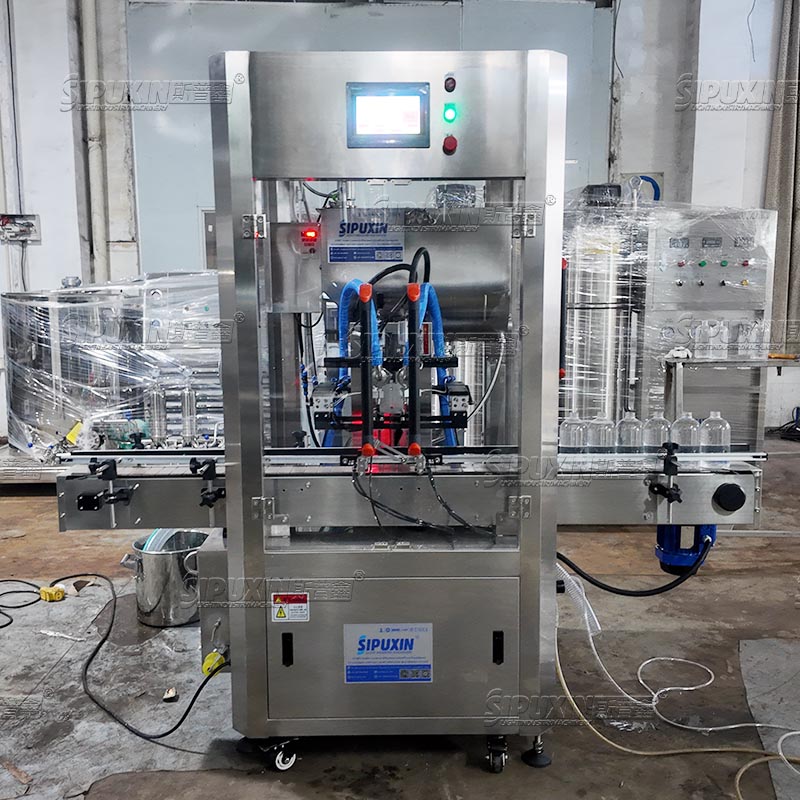

SIPUXIN Automatic Double Head Heating Gear Pump Filling Machine
Product Introduction
SIPUXIN Automatic Double Head Heating Gear Pump Filling Machine is a high-efficiency viscous material filling equipment. The double gear pump realizes synchronous filling. The heating jacket tank keeps materials at constant temperature to prevent solidification, solving the filling difficulty of high-viscosity paste.
Main Features
✅ Double-head synchronous filling, higher production capacity ✅ Integrated heating system to avoid paste solidification ✅ SUS316L stainless steel contact parts, sanitary and easy to clean ✅ Precision gear pump metering, filling tolerance ≤±1% ✅ Wide filling range: 10ml–1000ml adjustable ✅ Stable pneumatic drive, low failure rate ✅ Suitable for jars, round bottles, plastic containers
Application Scope
Cosmetics: face cream, body butter, hair wax, hand cream, mask cream Pharmacy: various ointments, medicinal pastes Food: chocolate paste, peanut butter, jam
Technical Parameters
- Driving mode: Pneumatic
- Automation grade: Fully automatic
- Filling heads: Double head
- Air pressure: 0.6–0.8 Mpa
- Filling speed: 30–50 bottles/min
- Voltage: 220V/50Hz
- Dimension: 340016702350mm
- Weight: 100kg
- Warranty: 1 year
