Single-head Hot Filling Chilling Tunnel 304 Stainless Steel Cosmetic Lip Balm Perfume Wax Hot Fill Quick Freezing Solidifying Conveyor Cooling Machine
spx-zuhe-729
This integrated single-head hot filling & chilling tunnel is specially designed for hot-melt cosmetic products, such as lip balm, solid perfume, hair wax, candle wax, vaseline. Equipped with top heat-preservation mixing tank, constant temperature single filling head and closed low-temperature freezing tunnel, it completes hot filling, rapid cooling and solidification in one automatic assembly line. Full SUS304 food & cosmetic grade stainless steel structure, adjustable conveying speed and refrigeration temperature, stable operation, high production efficiency, fully meets GMP cosmetic production standards
minimum order
1 set
Supply Ability
60set / Month
Country of Origin
China
Stock Time
30-35Day
Quantity:
US $7000.00 - US $9000.00
/ set
Single-head Hot Filling Chilling Tunnel 304 Stainless Steel Cosmetic Lip Balm Perfume Wax Hot Fill Quick Freezing Solidifying Conveyor Cooling Machine
Product Overview

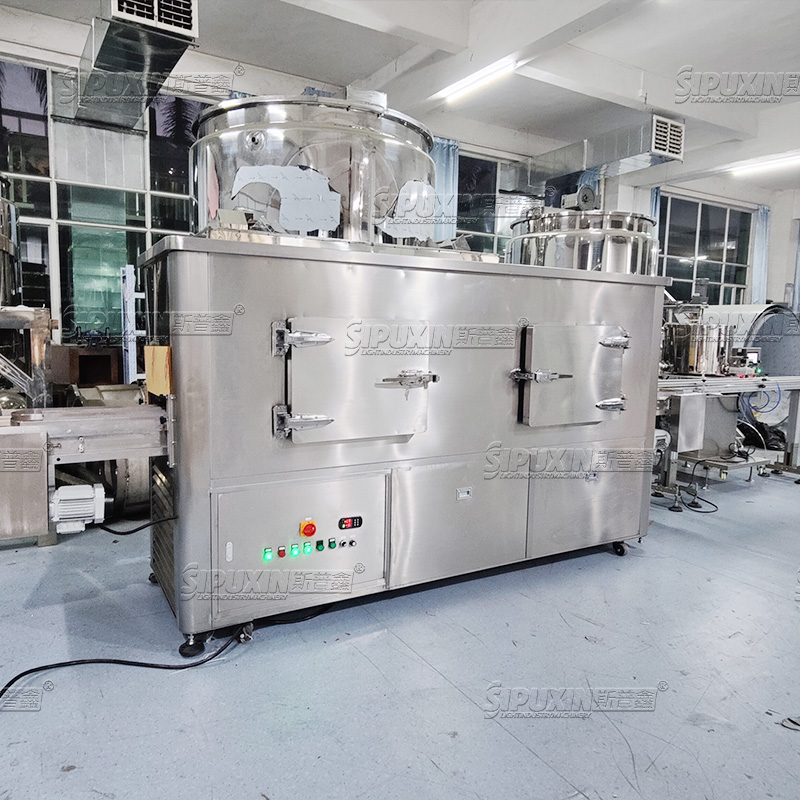

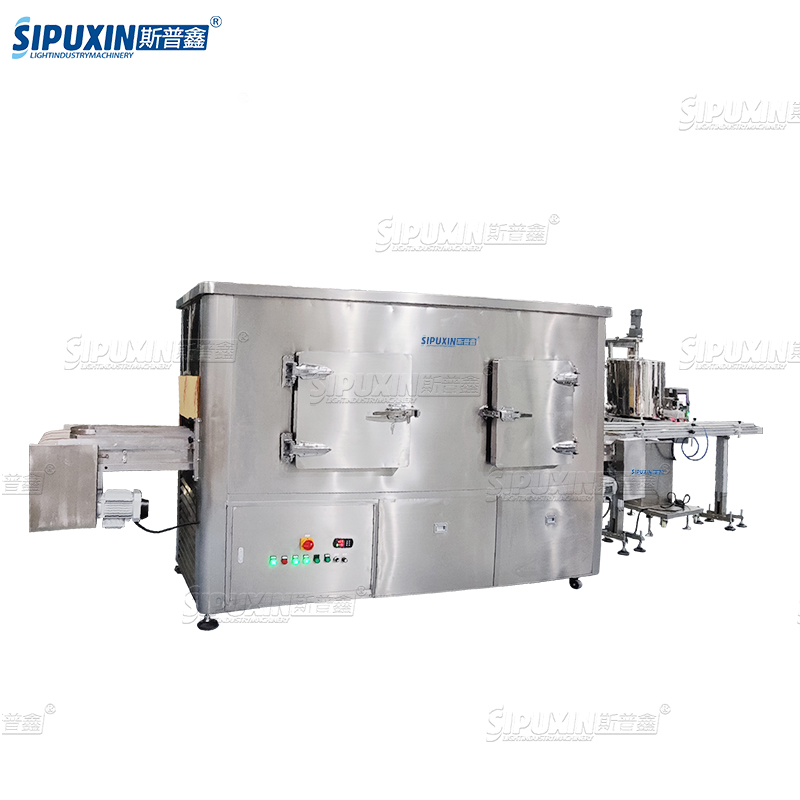

Our SIPUXIN single-head hot filling freezing tunnel is an all-in-one automatic production line integrating raw material heat preservation stirring, precise hot filling and continuous low-temperature quick freezing.Hot melt raw materials (wax, paste, balm) are stored and kept liquid in the top insulated mixing tank, then quantitatively filled into containers through the constant-temperature single filling nozzle without blockage. Filled products are conveyed into the sealed cooling tunnel, circulated cold air quickly reduces temperature to complete solidification, avoiding product deformation, overflow and uneven forming.Widely used in cosmetic factories for lip balm, lipstick, solid perfume, hair styling wax, depilatory wax, aromatherapy candle and other hot-fill wax paste products
Core Advantages
✅ Integrated one-piece design: Mixing, hot filling and quick freezing combined into one machine, save workshop space, reduce separate equipment purchase cost.
✅ Constant temperature whole pipeline: All material contact parts with heat tracing function, hot wax raw materials keep liquid all the way, eliminate clogging failure.
✅ Fast uniform solidification: Closed circulating cold air tunnel, evenly cool all surfaces of filled products, no local soft or deformed finished goods.
✅ Sanitary 304 stainless steel: Whole machine material contact parts adopt cosmetic grade SUS304 mirror polishing, no dead corners, easy to clean, conform to GMP production requirement.
✅ Full parameter adjustable: Cooling temperature, conveyor speed, filling flow can be freely set according to different wax melting points and container sizes.
✅ Low failure & easy maintenance: Independent sealed maintenance doors on tunnel side, convenient to clean air duct and refrigeration components; core compressor with 1-year warranty.
Machine Composition
- Top heat-preservation mixing tank: Double-layer insulation stainless steel tank with agitator, keeps wax materials at constant high temperature to prevent solidification and agglomeration.
- Single-head constant temperature filling unit: Heat tracing filling nozzle, accurate quantitative filling, no dripping, no material blocking.
- Closed freezing cooling tunnel: Full SUS304 sealed cabinet, internal circulating low-temperature air duct, multi-group maintenance doors for easy internal cleaning.
- Adjustable speed conveyor belt: Food-grade PU conveyor, stable transmission, adjustable running speed to control cooling time.
- Integrated electric control panel: Digital display temperature, conveyor speed, refrigeration switch, with emergency stop button, simple operation.
- Refrigeration compressor unit: High-efficiency industrial refrigeration system, adjustable minimum cooling temperature to -18℃, stable cooling effect阿里巴巴中...
| Item | Standard Parameter |
|---|---|
| Machine Model | SPX-HFCT-3000 |
| Overall Material | SUS304 Stainless Steel |
| Power Supply | 380V / 3Phase / 50Hz |
| Total Power | 7.5KW |
| Cooling Temperature Range | 0℃ ~ -18℃ adjustable |
| Conveyor Speed | 0~10m/min stepless adjustable |
| Production Capacity | 300~1200 pcs per hour |
| Tunnel Effective Length | 3000mm |
| Conveyor Width | 400mm |
| Overall Dimension | L3000 × W760 × H1400mm |
| Net Weight | 600KG |
| Refrigerant | R404A environmental refrigerant |
| Warranty | 1 year for core compressor & motor |
