2018 SPX semi automatic horizontal paste piston filling machine for food pharmacy etc.

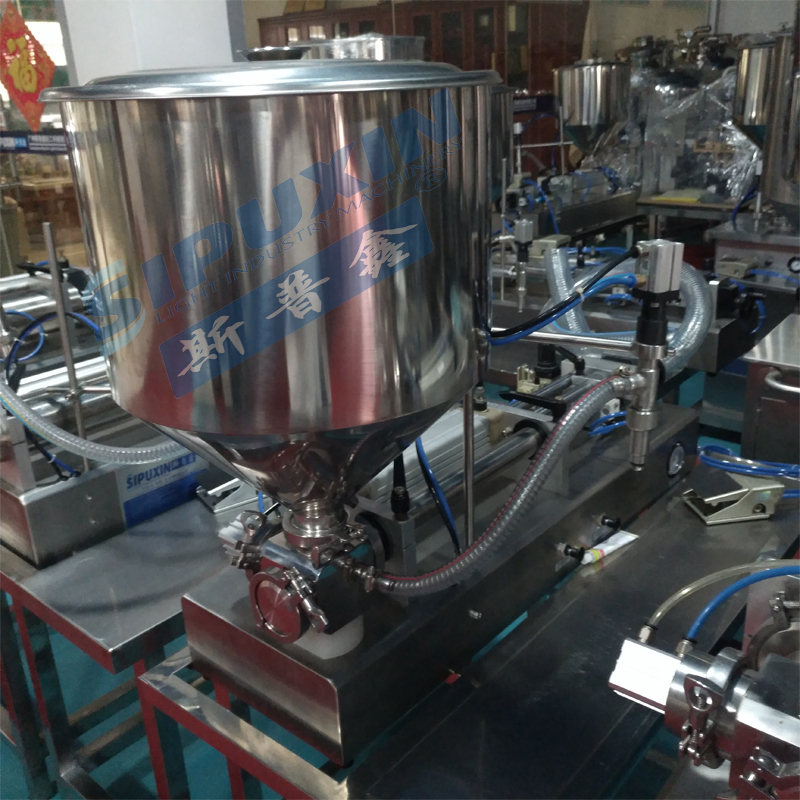

2018 SPX Self-suck horizontal piston filling machine for viscous liquid
Machine Production
The Self-suck horizontal small bottling machine is suitable for cream, paste, jam, ointment products, widely used in chemical, food, cosmetic, medical, grease industries etc.

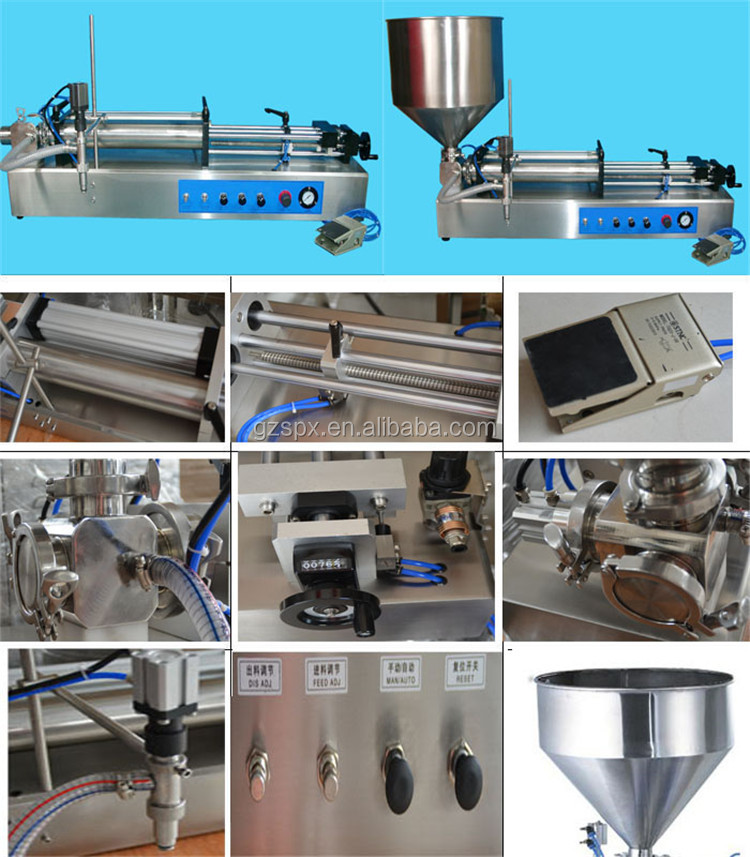

Composition | Material hopper, filling piston, air cylinder, material cylinder, filling nozzle. It is pneumatic, namely driven by pressed air. |
Material | Stainless steel,Baosteel brand, China top 1, world top 7. |
Usage | It is for filling liquid and cream inlow viscosity. When filling material in high viscosity like Vaseline, heating and mixing function are needed. |
Famous brand | FESTO air cylinder, high quality, made by a whole piece of stainless steel plate, no air leakage which can ensure the filling accuracy. |
Speed adjustment | Filling speed of machine is steplessly speed adjusted; it can be set in any number in the speed range. |
High accuracy | 7 filling volume to fit your real need. 5-60ml, 10-120ml, 25-250ml, 50-500ml, 100-1000ml, 250-2500ml, 500-5000ml. Also it can be customized volume. |
Features | Pneumatic elements replace electrical control circuit, suitable for anti-explosion requirement. |
Filling volume and Filling speed can be adjusted and the machine can fill in high precision | |
It is convenient to disassemble and clean for that its parts is all connected by ferrules. |
Technical Parameter | ||||
Model | Filling volume (ml) | Filling precision | Air consumption (L/min) | Productivity (bot/min) |
SGZ-W-15 | 5-150 | ±0.2% | 23 | 20-50 |
SGZ-W-25 | 10-250 | ±0.2% | 30 | 20-50 |
SGZ-W-50 | 30-500 | ±0.2% | 44 | 20-40 |
SGZ-W-100 | 60-1000 | ±0.2% | 87 | 20-30 |
SGZ-W-250 | 250-2500 | ±0.2% | 160 | 10-25 |
SGZ-W-500 | 500-5000 | ±0.2% | 300 | 5-15 |
Market Distribution
Products are exported to USA,Mexico,Brazil,Western Europe,Middle East, South Africa,Southeast Asia, Australia, etc. with long enjoyed a good reputation all over the world.
Our service
1.All the equipment provided by our company, we will be responsible for the installation and commissioning of equipment acceptance to product eligibility, normal acceptance of equipment, into the production state.
2.Responsible for layout design, process design and process design of equipment.
3.Provided normal equipment training, training 2-3 engineers and technicians for the demander, fully master the production process.
4. All the equipment provided one year guaranteed.
5. Life-long maintenance: in the period of the warranty period, a free door-to-door comprehensive service is provided . The time can be decided by both sides. Any other time, if there is a equipment failure, our company sends people to service.(Repair spare parts and others not higher than market price.)
