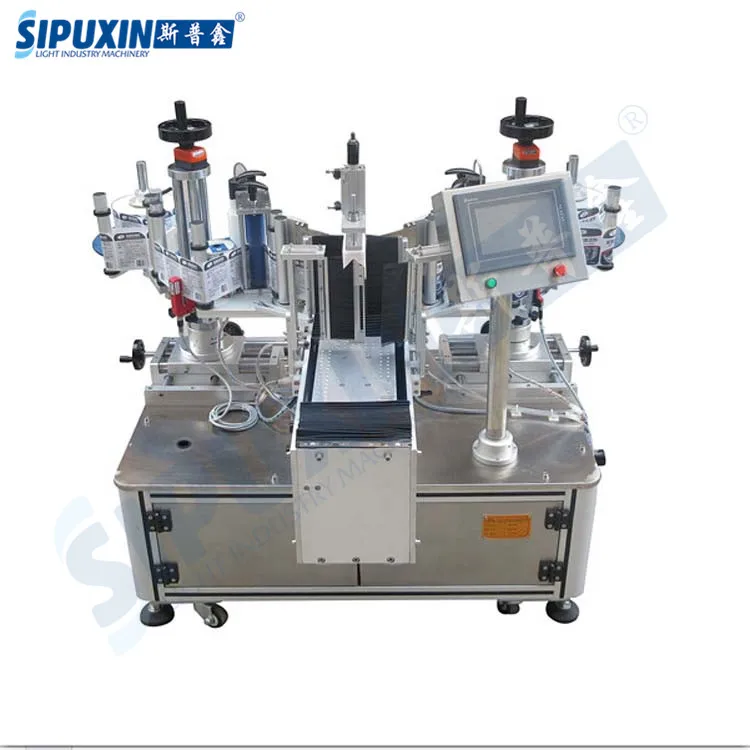

Double-side automatic labeling machine

Automatic twin sides labeling machine multfunctions labeler

Application :

The auto matic twin sides labeling machine is designed for front and back labeling on flat / oval shape containers .

Feature :

A. the machine main construction by stainless steel 304.

B.PLC combined with touch screen control system .

C. high accuracy labeling .

D. servo motor driven labeling head , labeling speed is automatically synchrnized with conveyor speed and top press belt to ensure high speed and quality labeling .

E. Push and press sponge attachment is used to ensure smooth labelig without wrinkles or bubbles .

F. equiped with bottle separating wheel to keep distance between two bottles .

3.Technical parameter

Power supply : AC220V , 50HZ , 1200w

Labeling capacity :60m/min

Labeling accuracy : ±1mm

Labeling max . height : 205mm

product size : 20-120mm

Labeling paper core's inn. dia. : 76.2mm

Labeling ext. dia. 350mm

Overral measurement :L 2000*W1200*H1500mm

Air source : 3-5kg 30L/min

WE CAN SEND TO U SOME VIDEOS ABOUT THE MACHINE ,PLEASE CONTACT WITH US .
