Labeling machine

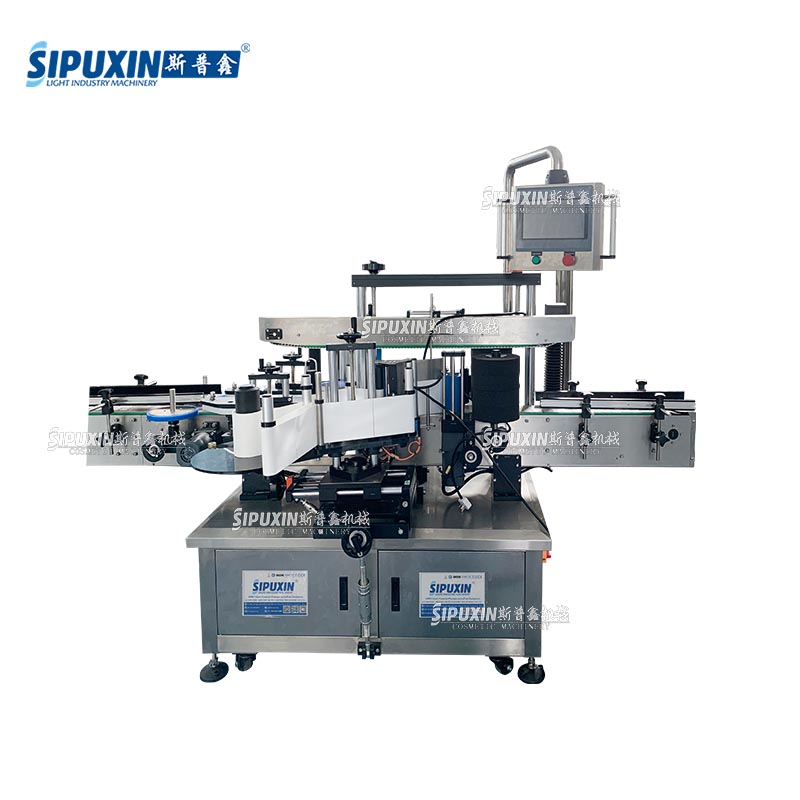

SPX Automatic Double Sides Labeling Machine For Round & Flat Bottles Cosmetic Sticker Labeler

SPX-STB-1
All-in-one machine for double-sided labeling on flat jugs and fixed-position labeling on round bottles.
Quantity:
Contact Now
add to cart

Automatic double sides labeling machine features:

1. Labeling height and angle are adjustable.
2. Power spacer separates containers into fixed space.
3. Conveyor belt and labeling speed are adjustable.
4. Top Hold-Down Conveyor supports containers stand vertically.
5. Controlled by Microprocessor system with Touch screen.
6. Labeling counter, easy to manage.
7. Specifically selected sponges flap labels after labeling to make labels attached perfectly.
8. Advanced detection system makes precise labeling.
9. Labeling speed is synchronized with conveyor belt.
10. The conveyor belt meets MCC standard.
11. Emergency stop button.
12. All are made of stainless steel and high quality aluminum alloy.
Performance
1. Be applicable to rectangular, square, round and flat bottles in double side labeling.
2.The independently shape structure is designed specially and independently to label irregular bottle in cosmetic industry, the optional air driving and roller labeling set can label round bottle precisely.
3.The shape belt can be inclined, and the labeling head can be adjusted at eight orientations, so the machine can be adjusted successfully in several minutes for any bottles.
4.The machine apply the famous serve motor, so it realizes real closed loop controlling and it avoids the phenomenon of the ordinary stepper motor, high-precision refinement, built-insoute encoder, all this is designed to improve the accuracy.

Application
The machine is applicable to rectangular, square, round and flat bottles in double side labeling.
Voltage
220V,Can customize according to the voltage in your factory
Control way
PLC +Touch screen
Suitable sticker roll
DN76mm, φmax 350mm
Machine rack
Stainless steel +aluminum profile
Labeling speed
45 bottle/min
Conveyor
114 wide POM chain belt
Details Images
Bottle separation structurBottle separation structure Adjust the product spacing by adjusting the difference between motor speed and conveying speed.
Roll paste device
It is mainly used to combine the label with the bottle body more closely. It consists of sponge board and rolling belt.
Conveyor belt &motor
The conveyor belt is used to drive the products to be labeled to the labeling area and send the labeled products out of the labeling area.
Guide chain
Through chain guide structure The left and right positions of the product are corrected so that the product is transported in a straight line.
