High Precision Automatic Round Bottle Labeling Machine for Glass/Plastic Bottles

SPXTBJ
Quantity:
Contact Now
add to cart
The SIPUXIN automatic round bottle labeling machine is a fully automated, high-efficiency labeling solution designed for cylindrical containers. Built with 304 stainless steel and premium aluminum alloy, this machine ensures durability, hygiene compliance, and stable performance for 24/7 production runs. It is widely used in cosmetics, pharmaceuticals, food & beverage, daily chemicals, and other industries requiring accurate, wrinkle-free label application.

✅High Labeling Precision With advanced servo motor control and photoelectric sensor detection, the labeling accuracy reaches ±1mm, eliminating misalignment, wrinkles, or air bubbles. Supports both full-wrap and half-wrap labeling on round bottles.
✅Wide Compatibility Works with various round containers (diameter 25–100mm) made of glass, plastic, metal, or paper. Ideal for bottles, jars, cans, tubes, and vials of different heights.
✅Smart PLC Control System Equipped with a user-friendly touch screen interface for quick parameter setting, recipe storage, and real-time monitoring. Supports automatic bottle feeding, separation, and label correction to prevent missing or repeated labeling.
✅Stainless Steel Construction The machine body is made of food-grade 304 stainless steel, easy to clean and disinfect, meeting GMP hygiene standards for pharmaceutical and food applications.
✅Easy Integration & Customization Can be seamlessly connected to filling, capping, and packaging lines. Optional upgrades include date coding printers, double-sided labeling modules, and bottle orientation systems.

Technical Parameters

Item                                                                              Specification
Labeling Speed   20–40 bottles/min (varies by bottle size)
Labeling Accuracy±1mm
Applicable Bottle Diameter25–100mm
Max Label Width260mm
Power Supply220V/50Hz, 1.5kW
Machine Dimension1700×600×1300mm
Weight220kg

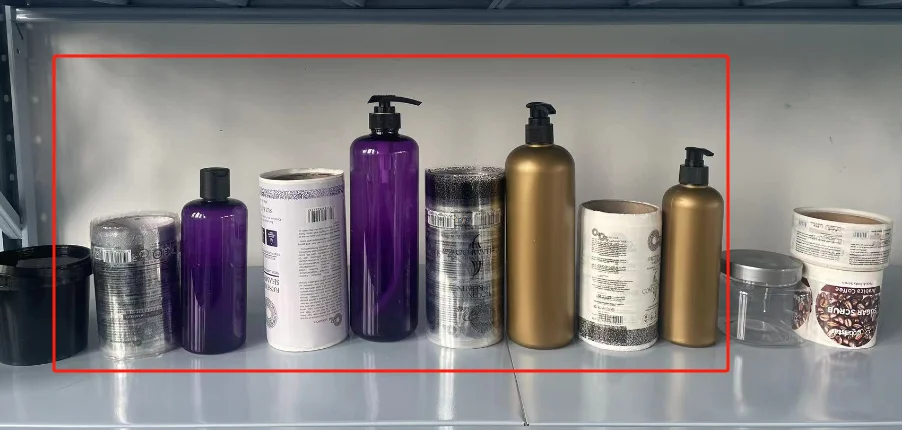

This labeling machine is suitable for a wide range of products, including:
  • Cosmetics: Shampoo bottles, lotion containers, essential oil vials
  • Pharmaceuticals: Syrup bottles, pill jars, eye drop containers
  • Food & Beverage: Sauce jars, beverage bottles, honey jars
  • Daily Chemicals: Detergent bottles, cleaning agent containers
  • Chemicals: Industrial liquid bottles, reagent cans
  • Details Images
    Labeling roller. Apply the label that has been removed from the backing paper evenly and smoothly to the item to be pasted.
    Drive roller
    Drive roller. Composed of a set of active friction wheels. Usually one is a rubber roller and the other is a metal roller, with the backing paper passing through them. The function is to drive the drum material and achieve normal labeling.
    Peel off the board.
    Peel off the board. There is an angle (usually less than 30 °) at one end of the peeling board, in order to make it easier for the label to be released and detached from the substrate when the substrate changes direction after passing through the peeling board, and to achieve contact with the labeled object.
    Reeling wheel.
    motor
    Reeling wheel. The driving wheel with friction transmission device is used to rewind and label the backing paper. The rotation of the paper receiving wheel does not interfere with the handling of paper by the driving wheel, and the synchronous transmission is adjusted by a friction device.
    Company Introduction
    About Us
    Guangzhou Sipuxin Light Industrial Machinery Equipment Co.,Ltd.with Yangzhou Sipuxin Light Industrial Machinery Equipment Factory as a solid backing,specializing in cosmetics,food,daily chemicals and other industries complete sets of equipmer manufacturers,to provide customers with a variety of special application fields of solutions .

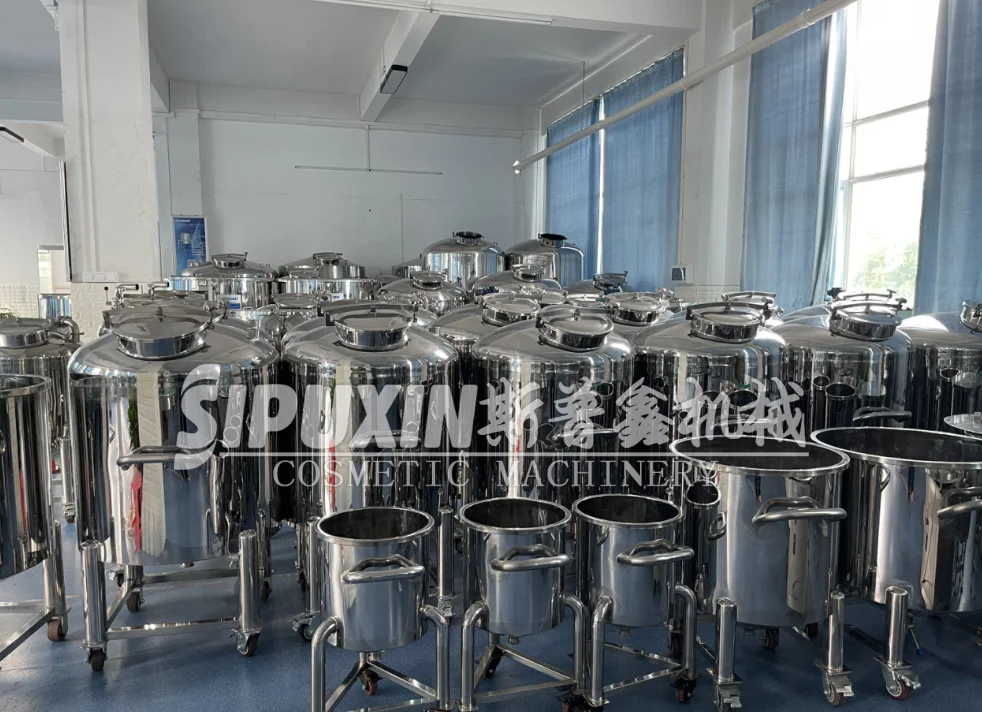

    The main products include vacuum homogenizing emulsifier,high-shear liquid detergent mixer,storage tank various cream,various bottle capping machine and other cosmetic and perfume whole-set production line,laboratory equipment,conveyor,etc.
