1000L Movable Mixing Tank with Horizontal Motor | No Bottom Homogenizer for Daily Chemical Liquid Mixin

SPX-902

our 1000L movable mixing tank equipped with horizontal side‑mounted motor, without bottom homogenizer. Made of SUS304 stainless steel with movable casters, it is ideal for small‑batch mixing of shampoo, shower gel, liquid soap and detergent. Compact low‑height design suits pilot lab and small workshop. Custom capacity, heating function and impeller types are available. Contact us for quotation and full specification.
Keywords: movable mixing tank, horizontal motor mixing tank, daily chemical mixing machine, liquid mixing tank

Delivery

EXW

minimum order

1 piece

Supply Ability

15piece / Month

Country of Origin

China

Stock Time

30Day

Quantity:

US $11000.00 - US $13200.00 / piece

Contact Now

add to cart

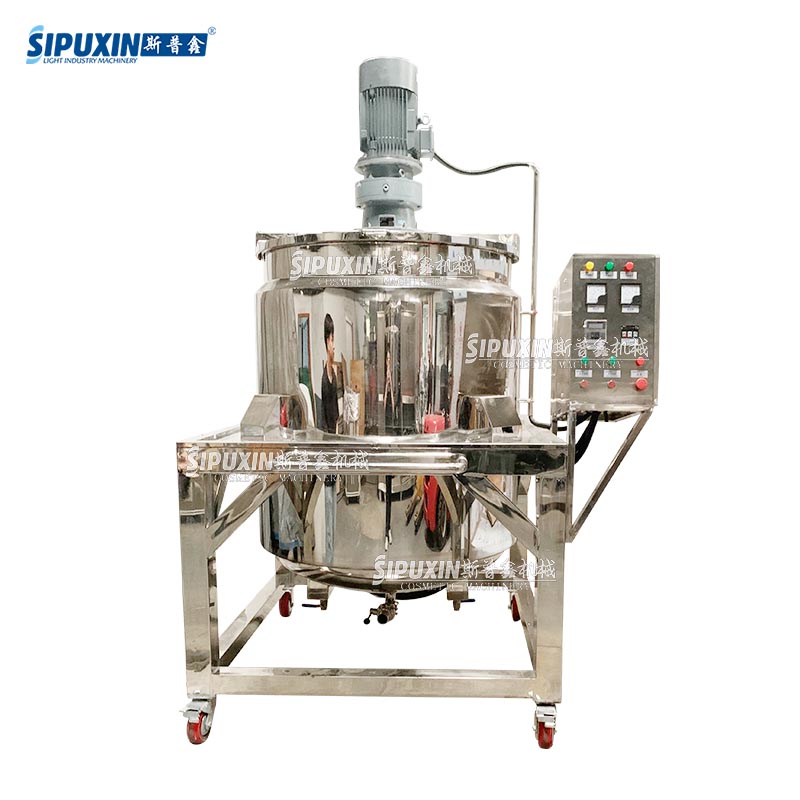

Sipuxin_1000L movable type mixing tank without homogenizer

Machine introduction

Core Structure

1000L total capacity large‑volume mixing tank, matched with heavy‑duty integrated stainless‑steel supporting frame
Robust frame improves overall stability, reduces shaking during stirring and moving, convenient for material discharging operation
Equipped with heavy‑load anti‑wear casters, the whole unit can be transferred freely inside workshop; lock casters before equipment operation
Tank body adopts SUS304 stainless steel as standard option, inner wall mirror polished for hygienic production; SUS316L is optional for corrosive formula

Heating & Temperature Control System

Built‑in electric heating jacket for material heating and constant‑temperature holding
Independent temperature control panel, users can set target temperature according to raw material requirements
Outer thermal insulation layer effectively cuts heat loss, improves heating efficiency and lowers surface temperature
Heating power can be adjusted and customized based on customer production conditions

Mixing Performance

Top‑mounted stirring motor for large‑capacity liquid blending, stable running for long‑time continuous work
Multiple impeller styles optional to adapt different liquid viscosity
Standard version is for liquid stirring only, without bottom high‑shear homogenizer, not for cream and paste emulsification
Large‑volume processing for mass daily‑chemical liquid production, recommended working batch: 700‑800L, avoid over‑filling overflow risk

Operation & Maintenance

Complete centralized control panel, simple operation, low failure rate for ordinary operators
Reasonable tank interior structure, easy manual rinsing and auxiliary CIP cleaning
Optimized discharge outlet design for fast and smooth material outflow, less residual inside tank
No complicated foundation installation required, just place on flat solid ground

Production Application

Suitable for large‑batch production of shampoo, shower gel, liquid soap, hand wash, laundry detergent and other household liquid detergents
Fit for medium‑size cosmetic and detergent manufacturing workshops
Support non‑standard customization: material upgrade, heating parameter, discharge port form, impeller type

Service Note

Machine is fully assembled before delivery, comes with English operation manual
1‑year warranty for main machine (wear‑resistant sealing parts excluded)
Spare‑parts supply and remote technical guidance are available

How's your service

Been machine manufucturer, we have been regular customers around the world. We do want to cooperate with the fresh and old customer with"Professional design experience, Leading manufacturing technology, Excellent equipment, and Sincere operation"concepts, in order to create the prosperous future hand in hand. Welcome all the friends at home and abroad to visit, guide, and negotiate business.

* Pre-sale: According to email communication or further more communication to make sure the details about the machine.

* Under-sale: We make sure to check the machine before the shipping, and for machines, we support 1 years warranty and lifelong positive service.
* After-sale: We can install the machine in your factory, but the cost of accommodation, air ticket, and technician fee will be on your account. However, for small machine, we can install here and shooting the video to send you. When you get the machines, you operate on basic of operation instruction and video.

About our company

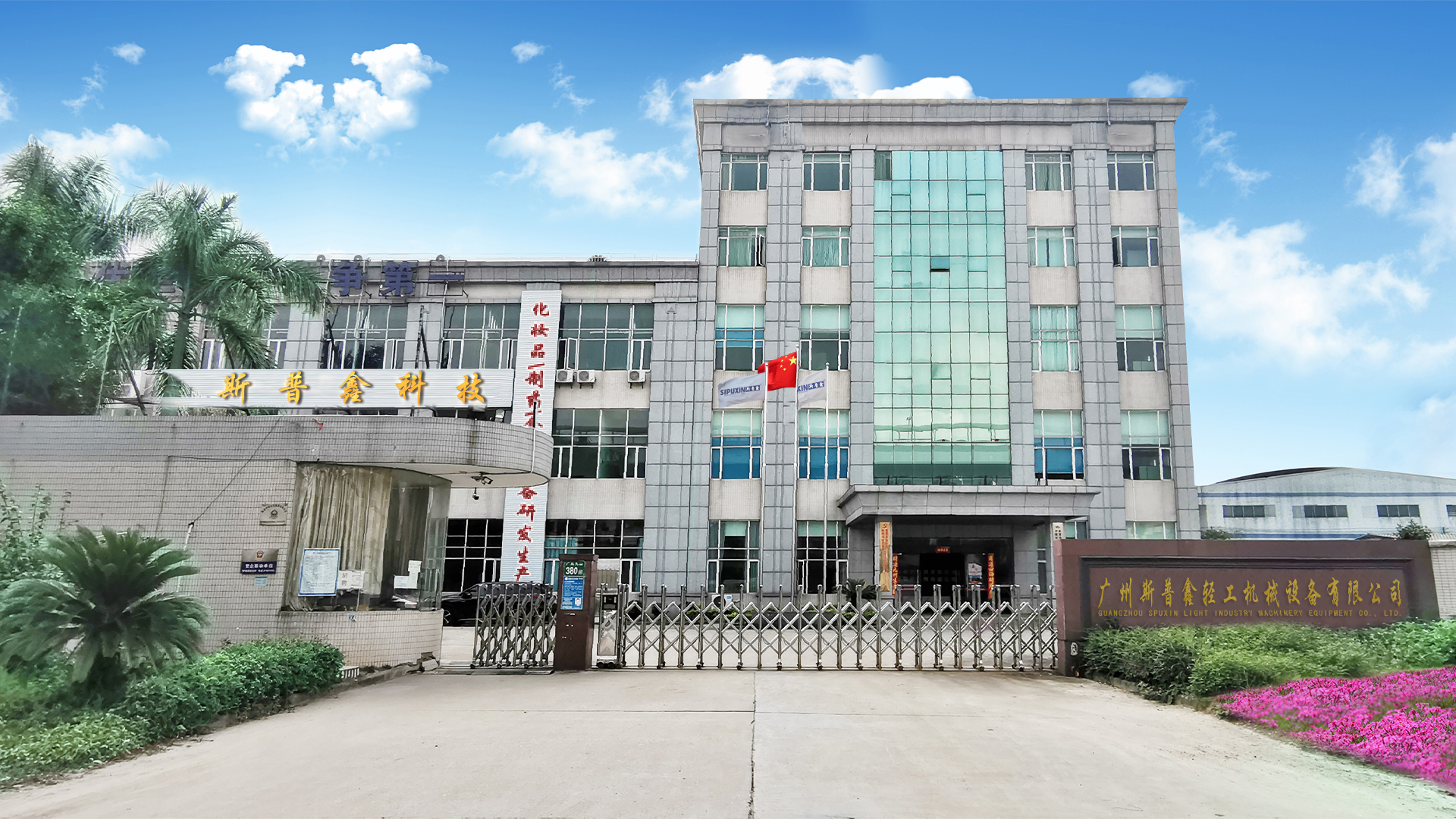

* Brief introduction:
