2000L vacuum homogenizer

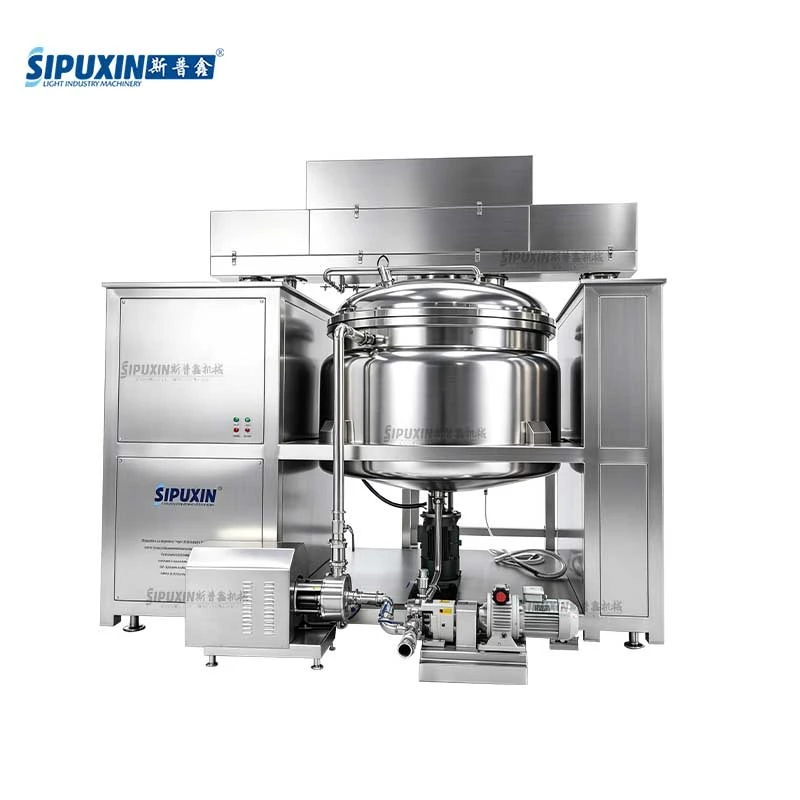

2000L Hydraulic Lifting Vacuum Homogenizing Emulsifier with External Circulation Pump & Oil‑Water Pots

SPX-2000S
Industrial 2000L hydraulic lifting vacuum homogenizing emulsifier fitted with external circulation high‑shear pump and independent oil‑water pots. SUS316L GMP standard for large‑batch cosmetic, pharmaceutical and food paste production.
Delivery
EXW
minimum order
1 piece
Supply Ability
25piece / Month
Country of Origin
China
Stock Time
45Day
Quantity:
US $25000.00 - US $26000.00 / piece
Contact Now
add to cart
This 2000L hydraulic lifting vacuum homogenizing emulsifier is industrial‑grade large‑volume emulsification equipment.


  • Equipped with independent oil‑water pots for raw material pre‑melting and dissolving.
  • Adopts external circulation high‑shear emulsifying pump, effectively eliminates mixing dead corners for large tank, finer particle size and stable product quality.
  • Hydraulic lifting upper assembly, easy for tank inspection, feeding and thorough cleaning to avoid cross‑contamination.
  • Wetted parts: SUS316L stainless steel with mirror polishing, comply with GMP hygiene requirements.
  • Built‑in PTFE wall‑scraping agitator, PLC touch‑screen automatic control for heating, cooling, vacuum defoaming and circulating emulsification.
  • Multiple safety interlock protection for long‑time continuous factory operation. Optional accessories: CIP cleaning system, vacuum feeding device, discharge pump.
  • You can know more about
    • Independent Oil‑Water Pot System: Matched with separate oil‑phase pot and water‑phase pot. Oil‑based raw materials such as grease, wax and emulsifier are heated and melted in oil pot; water‑phase ingredients are stirred and dissolved in water pot. Finished pre‑treated materials transfer automatically into main tank, realizing standardized pretreatment and improving batch‑to‑batch consistency.
    • External Circulation High‑shear Emulsifying Pump: Core highlight of this industrial unit. Material is continuously pumped out from main tank bottom, going through high‑speed shear, dispersion, crushing and emulsification inside external pump, then flows back to tank. Full circulation eliminates dead mixing corners inside 2000L large tank, delivers finer particle size, better product stability and shortens overall production cycle.
    • Hydraulic Lifting Structure: The whole upper stirring assembly can be lifted integrally by hydraulic system. Operators gain full access to tank interior for manual feeding, residue inspection, residue removal and thorough cross‑batch cleaning, effectively preventing cross‑contamination for formula switching. Multiple safety limit switches ensure safe lifting operation.
    • GMP‑grade Sanitary Construction: All material‑contact components including tank body, circulation pipeline, emulsifying pump cavity and agitator are made of SUS316L stainless steel with high‑precision mirror polishing, no sanitary dead corners. Food‑grade silicone sealing parts are adopted; optional Viton seals are available for special solvent‑containing materials.
    • Wall‑scraping Agitator & Vacuum Degassing: PTFE flexible wall scraper follows tank contour, continuously scraping high‑viscosity materials sticking on inner tank wall to guarantee homogeneous mixing. High‑efficiency water‑ring vacuum pump achieves stable vacuum degassing, removing micro‑bubbles inside paste to get smooth, bubble‑free finished goods.
    • Intelligent PLC Touch‑screen Control: Integrated automatic control for heating, cooling, stirring speed, homogenizing time, vacuum degree and circulation pump working status. Production parameters can be saved and recalled, making batch reproduction simple and stable. Temperature error controlled within ±1℃.
    • Reliable Safety Protection: Equipped with over‑temperature protection, vacuum interlock, hydraulic anti‑falling and overload protection, supporting long‑hours non‑stop industrial continuous operation.
    • Customizable Optional Parts: CIP automatic cleaning system, vacuum feeding machine, material discharge pump, online temperature monitoring module are available to build complete automatic production line.
