counter-rotating dual agitator vacuum mixer

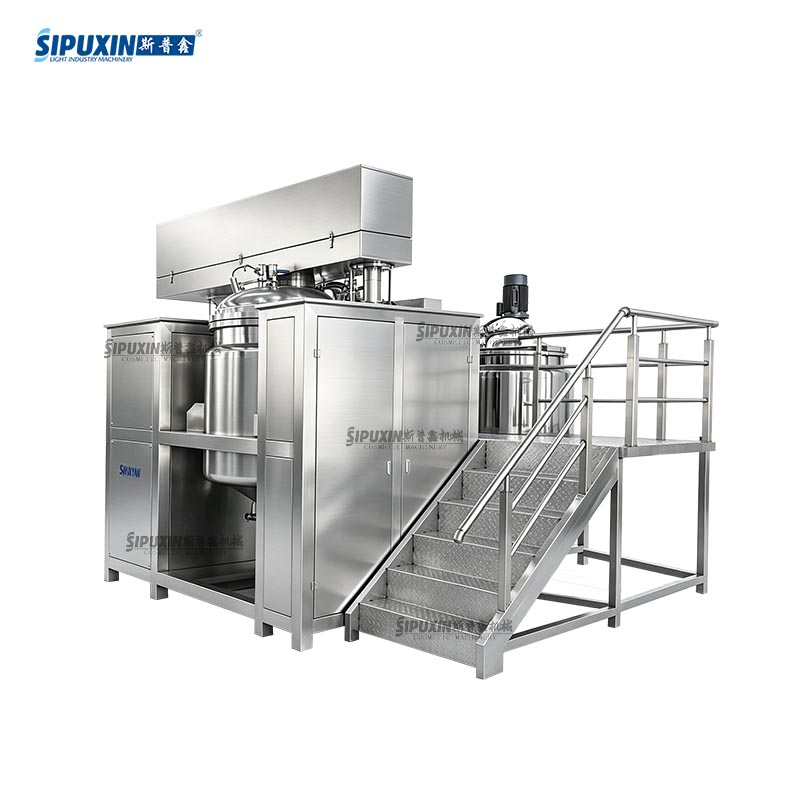

1000L Hydraulic Lifting Vacuum Emulsifier with Double Agitation & Bottom Homogenizer

SIPUXIN-6731

This video demonstrates our 1000L double hydraulic cylinder lifting vacuum emulsifier. It features counter-rotating double agitation, wall scraper and bottom high shear homogenizer. SUS316L sanitary construction, vacuum defoaming. Suitable for cosmetic cream, lotion, food mayonnaise and ointment production. Custom configurations available.

Delivery

EXW

minimum order

1 piece

Supply Ability

25piece / Month

Country of Origin

China

Stock Time

30Day

Quantity:

US $20000.00 - US $21000.00 / piece

Contact Now

add to cart

Sipuxin_1000L Hydraulic Lifting Vacuum Emulsifier with Double Agitation & Bottom Homogenizer

Machine introduction

1. Lifting Structure

Double hydraulic cylinders drive the whole mixing and homogenizing unit for synchronous lifting. The tank can be fully opened, which facilitates feeding, inspection, maintenance and thorough cleaning. It greatly reduces cross-contamination during frequent formula switching.

2. Mixing System

Internal and external counter-rotating double agitation equipped with PTFE wall scrapers. The scrapers continuously strip viscous materials from tank walls and bottom, eliminating mixing dead zones and ensuring uniform blending for high-viscosity paste.

3. Homogenizing Function

Bottom-mounted high-shear homogenizer generates strong mechanical shear. It fully disperses oil and water phases, breaks down particles, and produces delicate, stable emulsions without delamination.

4. Vacuum Working Environment

Operates under stable vacuum to remove air bubbles inside materials. It prevents oxidation, improves product gloss and texture, and extends shelf life of creams, ointments and sauces.

5. Sanitary Construction

Material contact parts are SUS316L mirror-polished stainless steel, complying with GMP cosmetic and food-grade standards. Jacket heating and cooling system enables precise temperature control for different formulas.

6. Intelligent Control & Safety

PLC touch screen operation, adjustable frequency speed regulation. Equipped with emergency stop, safety door interlock and multiple protection alarms to ensure stable and safe production.

7. Wide Application

Suitable for cosmetic cream, body lotion, skincare paste, pharmaceutical ointment, food mayonnaise, salad dressing and various daily chemical emulsified products.

8. Customizable Options

Explosion-proof electric cabinet, CIP cleaning system, tilting discharge, independent oil-water phase tanks, global voltage and matching operating platform are optional.

How's your service

Been machine manufucturer, we have been regular customers around the world. We do want to cooperate with the fresh and old customer with"Professional design experience, Leading manufacturing technology, Excellent equipment, and Sincere operation"concepts, in order to create the prosperous future hand in hand. Welcome all the friends at home and abroad to visit, guide, and negotiate business.

* Pre-sale: According to email communication or further more communication to make sure the details about the machine.

* Under-sale: We make sure to check the machine before the shipping, and for machines, we support 1 years warranty and lifelong positive service.
* After-sale: We can install the machine in your factory, but the cost of accommodation, air ticket, and technician fee will be on your account. However, for small machine, we can install here and shooting the video to send you. When you get the machines, you operate on basic of operation instruction and video.

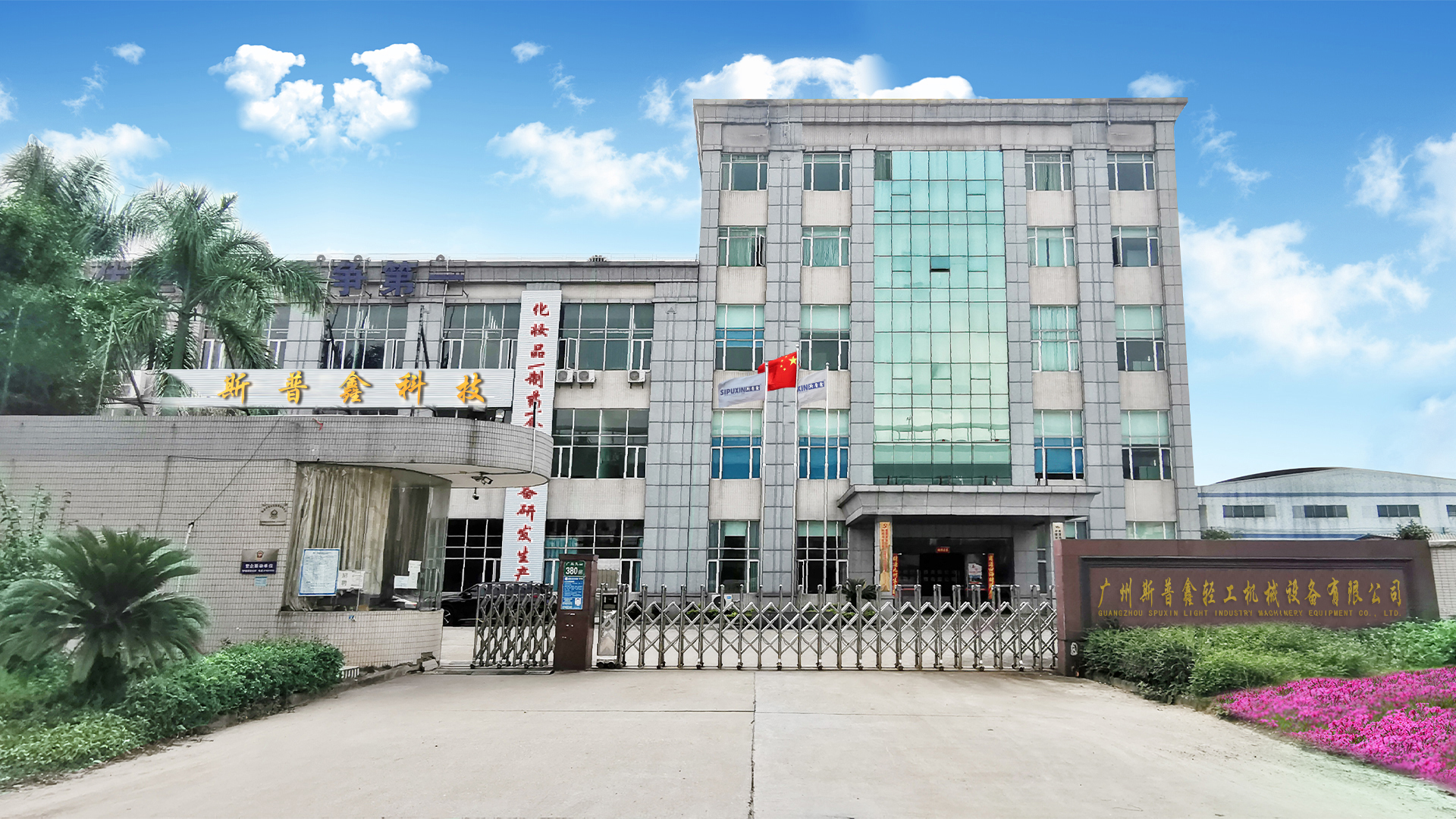

About our company

* Brief introduction:

Guangzhou Sipuxin Light Industry Machinery Co., Ltd. is a professional technology-oriented machinery manufacturer integrating research, development, production, sale, engineering installation, technical consultation and after-sales service. We are mainly engaged in production and installation of equipment for pharmacy, food, cosmetic, chemical industry, etc., providing one-stop prompt service for customers.

Professional design experience, leading manufacturing technology, excellent equipment quality and sincere operation concept are the basis for our company to develop. We will continue implementing the concept as usual. Welcome the new and old customer at home and abroad to visit and instruct us.

* Our showing room:

* Factory & workshop:

Production line

line

There are three main production line, which is the paste production line,liquid production line and the perfume production line.

*We are the machine manufacturer specialize in RO water treatment equipment, vacuum homogenizer, blending tank, storage tank, bottle drying and sterilizing machine, paste filling machine, heating mixing filling machine, liquid filling machine, pressure filling machine,manual filling machine,conveyor, date code printing machine, capping machine, labeling machine, sealing machine, shrink film packing machine, other lab equipment and so on.
