Double Head Anti-Corrosion Liquid Filling Machine Vertical Pneumatic Filler For Disinfectant, Bleach, Acid Liquid, Toilet Cleaner, Cosmetic Chemical Liquid
spx-gzj-728
Vertical double-head anti-corrosion pneumatic filling machine, all liquid contact parts adopt anti-corrosion PP plastic material, resistant to acid, alkali and corrosive liquid. Suitable for filling disinfectant, bleach, toilet cleaner, chemical detergent, acidic cosmetic raw liquid, no corrosion, long service life.
minimum order
1 set
Supply Ability
60set / Month
Country of Origin
China
Stock Time
30-35Day
Quantity:
US $7000.00 - US $9000.00 / set
Double Head Anti-Corrosion Liquid Filling Machine Vertical Pneumatic Filler For Disinfectant, Bleach, Acid Liquid, Toilet Cleaner, Cosmetic Chemical Liquid
Product Overview

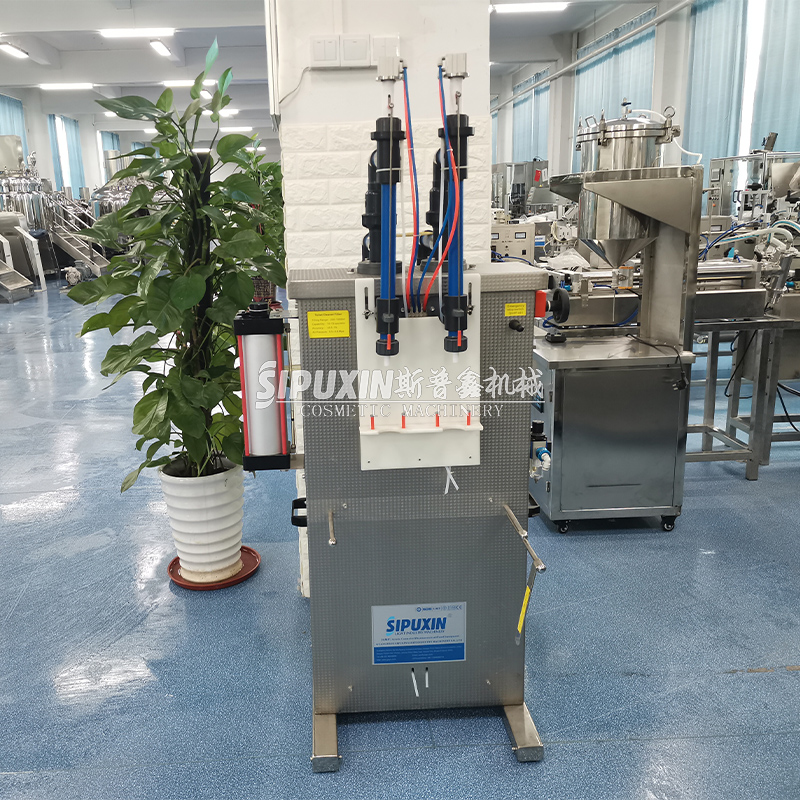

This vertical double-head anti-corrosion filling machine is specially developed for filling various acid, alkali, corrosive chemical liquids, widely used in daily chemical, disinfection, chemical industry.
The machine adopts fully pneumatic driving, no motor, safe for flammable and corrosive materials. The filling valve, material cylinder, feeding pipeline are all made of anti-corrosion PP polypropylene material, completely resistant to bleach, toilet cleaner, disinfectant, acidic and alkaline detergent liquid. Double filling heads greatly improve filling efficiency compared with single head small filler.
Core Advantages
1.Double filling head design, two bottles filling at the same time, high production efficiency, suitable for medium batch production of corrosive liquid.
2. Full anti-corrosion structure: all parts touching liquid are food & chemical grade PP plastic, resist acid, alkali, chlorine-containing disinfectant, will not rust or corrode, solve the problem of stainless steel being corroded by bleach and toilet cleaner.
3. Pure pneumatic drive system, without electric motor, no spark risk, safe for flammable disinfection liquid workshop, explosion-proof performance.
4. Adjustable filling volume, each head can be calibrated separately, filling range 50ml~1000ml, filling precision error ≤±2%.
5. Vertical integrated frame, stainless steel outer cabinet, stable structure, easy to move and install, simple pneumatic operation panel, workers can master operation quickly without complex training.
6. Wide application range: toilet cleaner, 84 disinfectant, bleach, hand sanitizer disinfectant, acidic descaling agent, alkaline detergent, chemical raw liquid, corrosive cosmetic solvent liquid filling.
Machine Composition
1.Double anti-corrosion PP filling heads & filling cylinders
2. Pneumatic control valve and air cylinder driving system
3. Vertical stainless steel outer frame & support stand
4. Pneumatic volume adjustment knob for each filling head
5. Air pressure regulating filter assembly 6. Material feeding pipeline and anti-drip filling nozzles
| Parameter | Specification |
|---|---|
| Model | SPX-D2 Double Head Anti-Corrosion Pneumatic Filling Machine |
| Filling Head Quantity | 2 Heads |
| Liquid Contact Material | Anti-corrosion PP Polypropylene |
| Driving Mode | Full Pneumatic (No Motor, Explosion Proof) |
| Filling Volume Range | 50ml ~ 1000ml (Customizable) |
| Filling Precision | ≤ ±2% |
| Working Air Pressure | 0.4~0.6Mpa |
| Outer Frame Material | SUS304 Stainless Steel |
| Applicable Liquid | Acid, alkali, chlorine-containing disinfectant, bleach, toilet cleaner, corrosive chemical liquid |
