8-Head Servo Piston Liquid Filling Machine, Automatic Bottle Filler for Cosmetics, Food & Beverage

SPX-SGZ
This automatic servo piston liquid filling machine is fully constructed with SUS304 stainless steel, equipped with a fully enclosed transparent safety shield, PLC touch screen control cabinet and conveying belt. It features high-precision piston metering cylinders, suitable for filling lotion, shampoo, perfume and other cosmetic & daily chemical liquids. The machine runs stably, supports quick specification change and easy internal cleaning without dead corners.
Quantity:
Contact Now
add to cart
Product Description

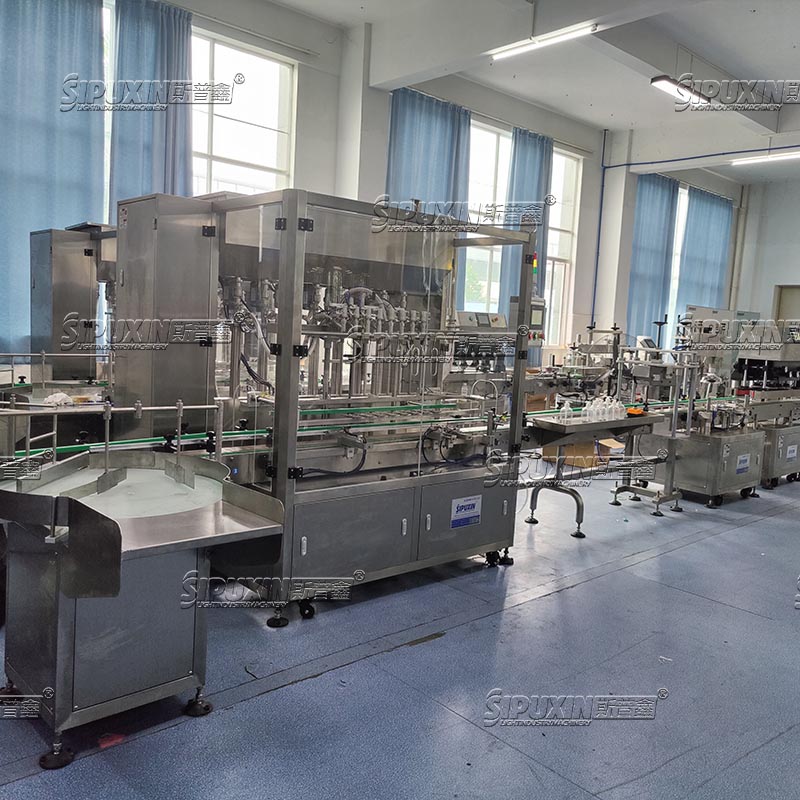

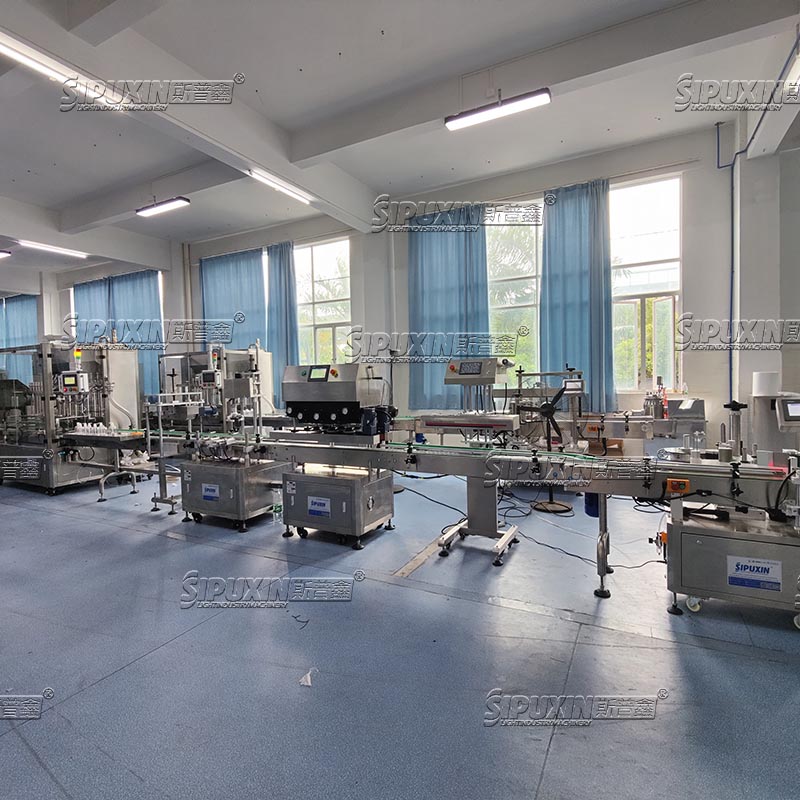

8-Head Automatic Perfume Filling Production Line (Complete Set)
1. Production Line Overview
This SUS304 stainless steel servo piston filling line adopts PLC touch screen control, equipped with multi-head high-precision filling cylinders and matching conveyor. With enclosed safety cover, it fits perfume, lotion and other liquids, featuring stable operation, easy cleaning and fast size change.
.
2. Technical Specifications
* Speed: 30-60 bottles/min (depends on bottle size)
* Filling Accuracy: ≤±0.5% of target volume
* Pump Compatibility: Standard 18/410, 20/410, etc.
* Power Supply: 220V/380V, 50Hz
* Materials: 316 stainless steel (contact parts)

3. Advantages
✅ End-to-End Automation – From empty bottles to finished labeled products
✅ Flexible Configuration – Adjustable for different bottle shapes (50-150mm height)
✅ High Precision – Servo-driven filling and labeling
✅ Easy Changeover – Quick-adjust mechanisms for bottle/pump sizes
Module
Function
Key Features
Bottle Unscrambler
Automatically feeds & aligns empty bottles
Vibration plate/starwheel sorting

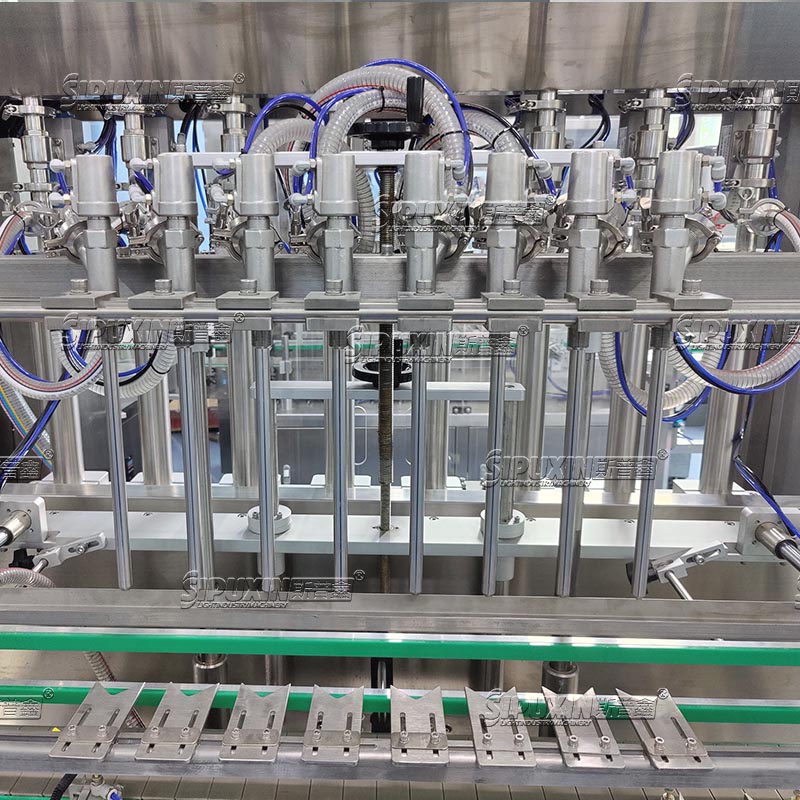

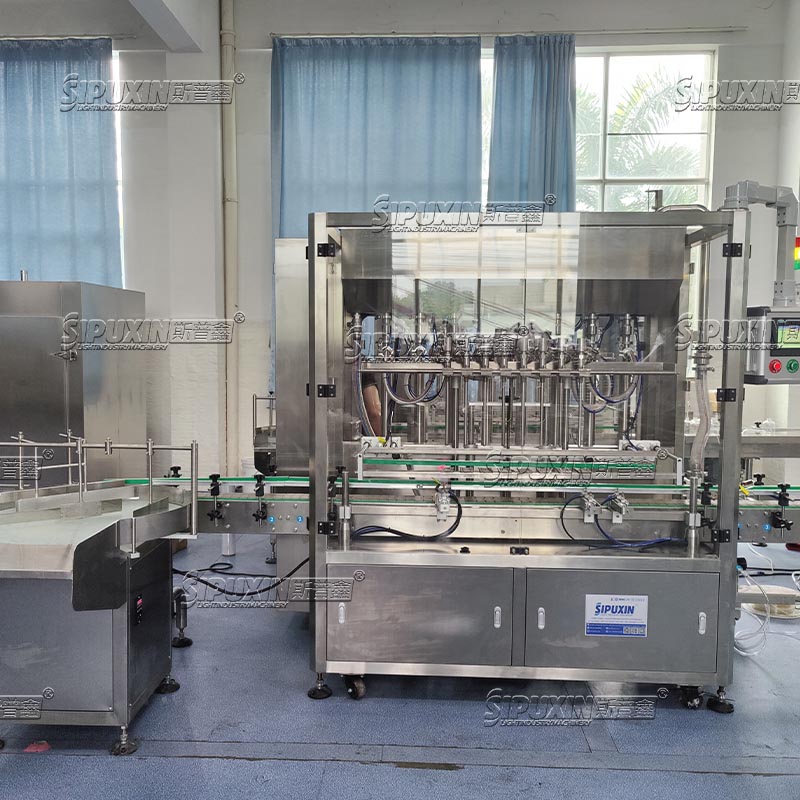

8-Head Filling Machine
Precision liquid filling (perfume/alcohol-based)
Servo piston filler, accuracy ±0.5%
 Automatic Pump Feeder
Orients & installs spray pumps
Vibratory bowl + robotic placement
Capping Unit
Screws/compresses pump heads
Torque-controlled, adjustable for different pumps
Mid-Collar Assembly
Feeds & presses metal/plastic collars
Pneumatic pressing, force control
Round Bottle Labeler
Applies front/back labels (oval/round bottles)
Servo-driven, ±0.3mm precision
Conveyor System
Links all modules
Variable speed, stainless steel construction
