Automatic Negative Ion Air Bottle Washing Machine, Dust Removing Air Rinsing Machine For Cosmetic Glass Plastic Bottles Jars Pre-filling Cleaning

spx-zxw622

Suitable for removing dust, fiber debris and particles inside cosmetic glass bottles, plastic bottles, cream jars, perfume vials before filling process, widely matched with filling and capping production line.

Quantity:

Contact Now

add to cart

Description

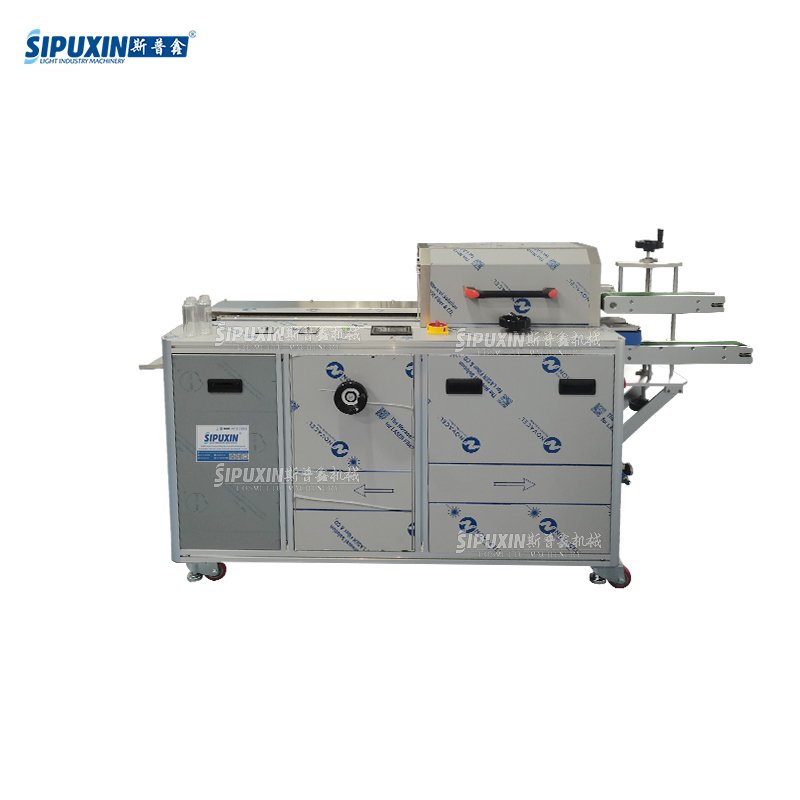

Automatic Negative Ion Air Bottle Washing Machine, Dust Removing Air Rinsing Machine For Cosmetic Glass Plastic Bottles Jars Pre-filling Cleaning

Machine composition:

1. Stainless Steel Conveying Frame

Supports bottle transmission, with casters for flexible position adjustment.

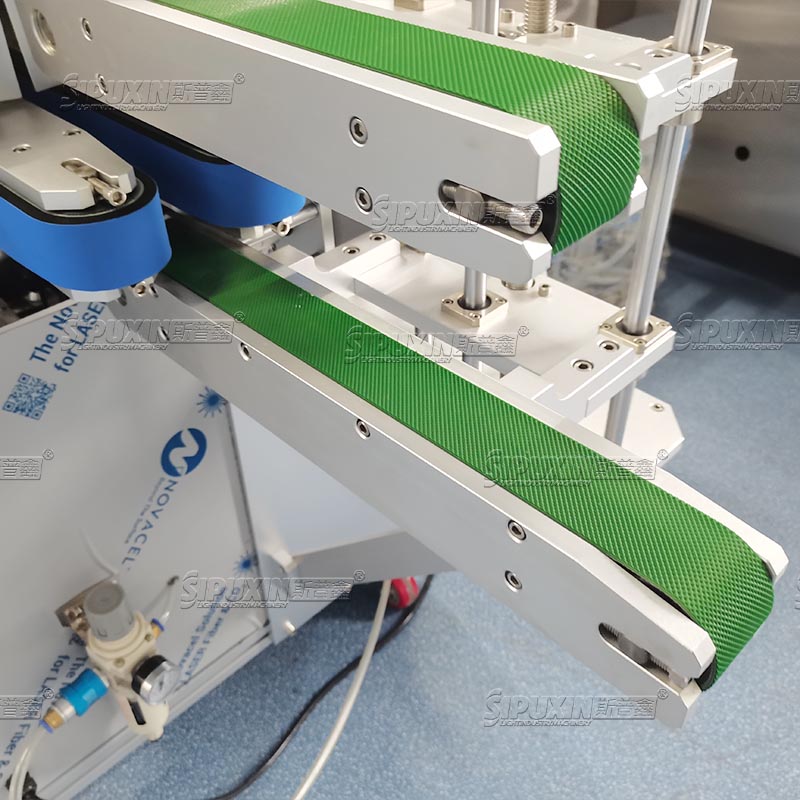

2. Adjustable Bottle Conveyor Belt

Fits glass bottles, plastic jars, perfume vials of different heights & diameters.

3. Negative Ion Static Elimination Blower Assembly

Generates negative ions to neutralize static, blows away internal dust & debris.

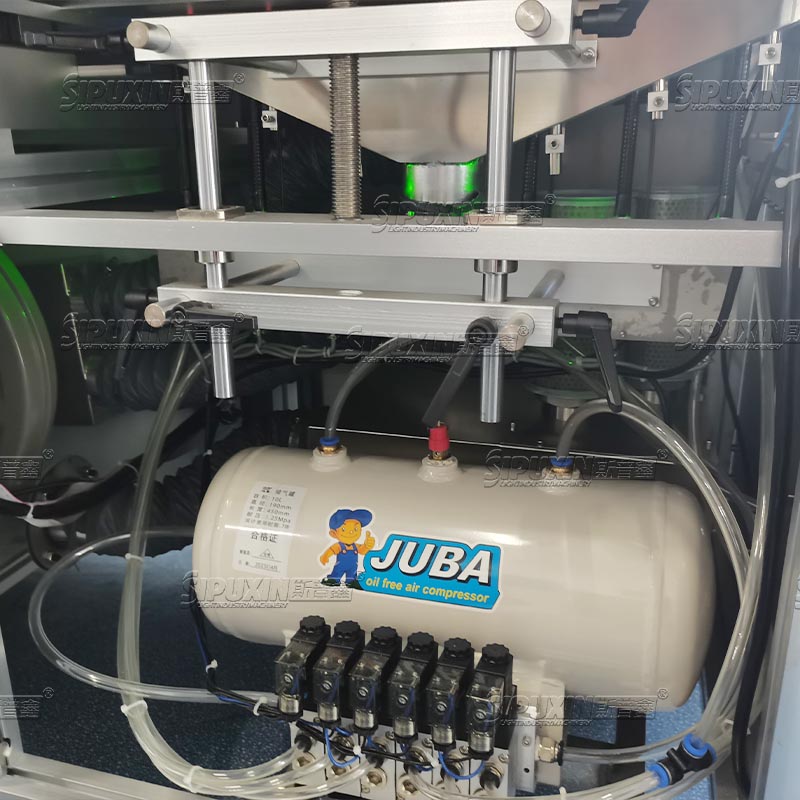

4. High-pressure Air Pump

Supplies clean dry airflow for bottle inner cleaning.

5. Famous Brand PLC Control Panel & Touch Screen PLC

Regulates conveying speed, air volume and working cycle, easy parameter setting.

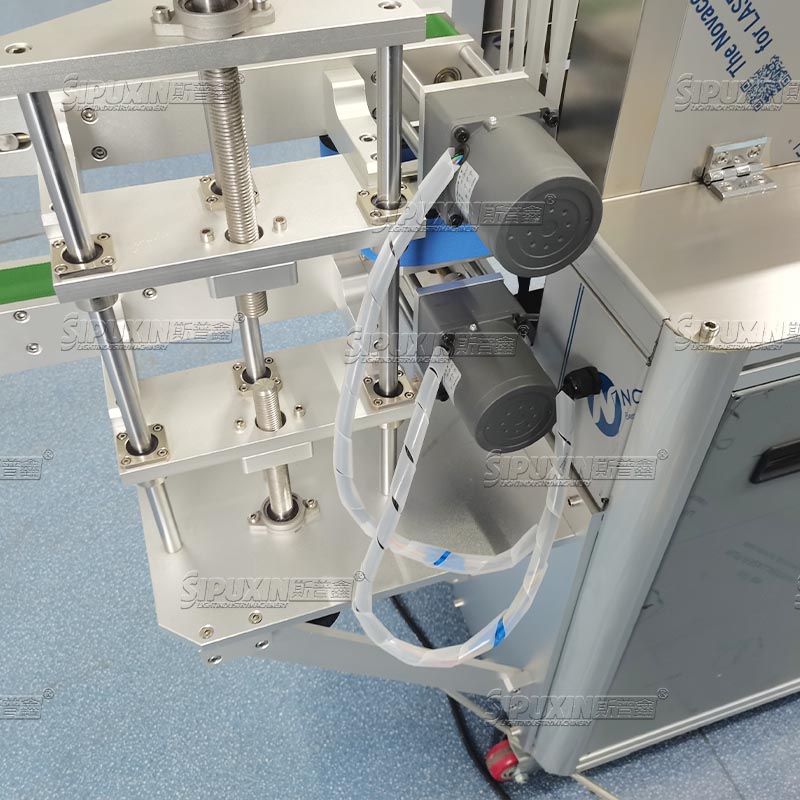

6. Transmission Gearbox & Driving Motor

Stable power output for continuous bottle feeding.

7. Sealed Bearings & Drive Gears

Low friction, wear-resistant for long-term continuous operation.

8. Dust Collection Box

Collects blown dust to keep workshop clean.

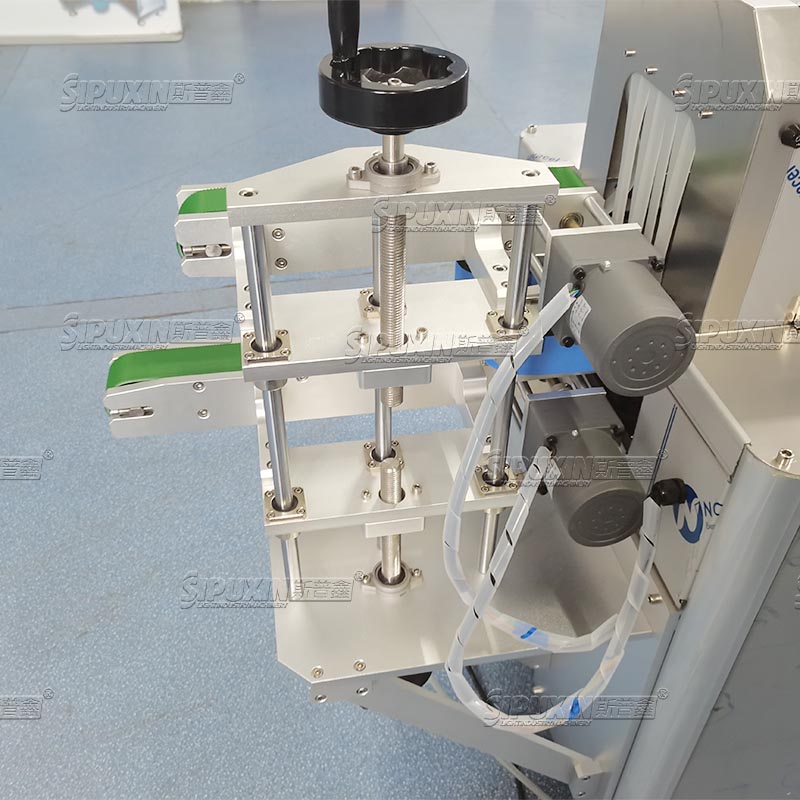

9. Adjustable Height Handwheel

Modify air knife height to match various bottle sizes.

10. Safety Emergency Stop Button

Real-time shutdown for operational safety.

Usage and Application:

1. Working Usage

1. Place empty cosmetic bottles/jars on the conveyor belt; the machine automatically conveys bottles to the cleaning station.
2. Negative ion wind knife neutralizes static electricity inside containers, and high-pressure dry air blows out dust, fiber fragments and particle residues from bottle interiors.
3. Clean bottles are conveyed out continuously, ready for the subsequent filling, emulsifying and capping procedures.
4. Operators can adjust conveying speed and air flow volume via the PLC touch screen to match different bottle sizes and cleanliness standards.

2. Application Scope

• Applicable containers: Glass perfume vials, cosmetic cream plastic jars, toner bottles, essential oil bottles, lotion bottles, and all cosmetic packaging containers before filling.

• Applicable industries: Cosmetics, daily chemical, personal care, pharmaceutical ointment manufacturing factories.

• Production line matching: Can be seamlessly connected with vacuum homogenizer, automatic filling machine, capping machine and labeling machine to form a complete automated cosmetic production line.

• Production advantage: Effectively reduce defective products caused by dust pollution inside bottles, improve finished product quality and pass inspection standards.

Core Advantages

1. Negative Ion Static Elimination TechnologyNeutralizes static electricity inside bottles thoroughly, so fine dust will no longer adhere to the container inner wall, achieving better cleaning effect than ordinary air blowers.

2. Full Automatic Continuous Operation, High ProductivityEquipped with PLC touch control system, bottles are automatically fed, cleaned and output without frequent manual intervention. It can run synchronously with filling production lines to boost overall output.

3. Wide Compatibility for Various ContainersThe conveying height and air knife position are adjustable via handwheel, fitting glass perfume vials, plastic cream jars, lotion bottles, essential oil bottles and other cosmetic packaging of different sizes.

4. Easy Operation & Precise Parameter ControlFamous brand PLC touch screen supports one-click start and flexible adjustment of conveying speed, air flow and cleaning cycle. Operators can master the operation within minutes.

5. Durable Stainless Steel Body & Long Service LifeThe whole frame and contact parts adopt stainless steel, wear-resistant, corrosion-proof and easy to clean. Matched with stable motor, gearbox and sealed bearings for long-time non-stop production.

6. Dust Collection Design for Clean Workshop EnvironmentComes with an independent dust collection box to gather blown debris, avoiding secondary dust pollution and meeting cosmetic factory hygiene standards.

7. Safe & Flexible Layout

Installed with movable casters for easy position shifting; emergency stop button is equipped to cut off operation instantly in case of abnormal conditions to guarantee production safety.

8. Perfect Matching for Complete Cosmetic Production Line

Seamlessly connects with vacuum homogenizer, filling machine, capping machine and labeling machine, realizing one-stop automatic production from raw material emulsification to finished packaging.
