Fully Automatic Double-head Lotion Filling Machine with Adjustable Molds & Automatic Bottle Feeding System

SPX_f-zxw26617
Automatic double-head lotion filling machine with adjustable molds & auto bottle feeding, high filling precision for cosmetic water & milk, full stainless steel, factory direct price, production video available.
Quantity:
Contact Now
add to cart

Product Description:

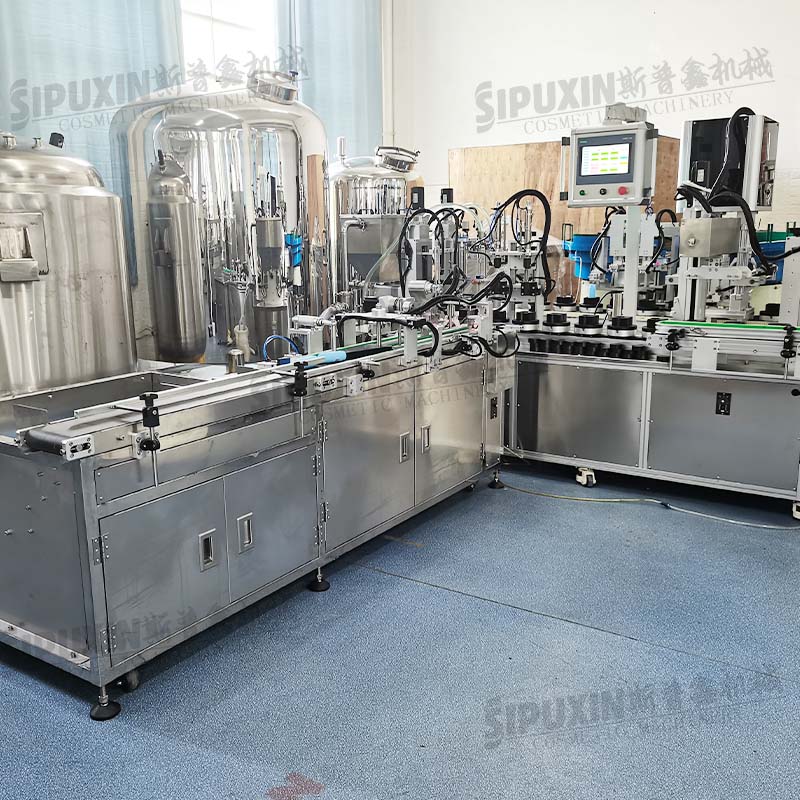

The integrated automatic production line combines filling, capping and conveying functions, matched with front mixing tanks.
Controlled by PLC touch screen, it achieves continuous automatic production for toner, lotion and essence.
All material contact parts are SUS304 stainless steel, with high filling precision, stable operation and easy maintenance, ideal for large cosmetic factories.
Key Features and Functions:
1. Integrated assembly with filling, conveying and capping stations, matched with mixing tanks for full cosmetic liquid production workflow.
2. PLC touch screen centralized control; filling volume, line speed and operation parameters are adjustable directly on screen.
3. Precise piston filling system with accuracy up to ±0.5% FS, effectively preventing liquid overflow and waste.
4. Stable rotary capping mechanism, suitable for plastic and glass bottles with tight, leak-free sealing effect.
5. SUS304 stainless steel for all material contact parts, meeting GMP sanitary standards, easy to disassemble and clean.
6. Adjustable conveyor guide rails, compatible with multiple sizes of cosmetic bottles without frequent mold replacement.
7. Continuous automatic bottle feeding, filling and capping, greatly cutting manual labor and boosting output to 2000–4000 bottles per hour.
8. Low-noise stable operation system with durable core components for long-term mass production.
ItemSpecification
Full Line NameAutomatic Cosmetic Liquid Filling Capping Production Line
Applicable MaterialsToner, lotion, essence, body milk, cosmetic liquid
Filling Precision±0.5% FS
Production Capacity2000–4000 BPH
Filling Range10–1000ml adjustable
Applicable BottleRound glass & plastic cosmetic bottles
Control SystemPLC + Touch Screen HMI
ConveyorAdjustable-speed PVC conveyor belt
Material Contact PartsSUS304 stainless steel
Total Power3.8kW
Power Supply380V 50Hz 3 Phase, customizable voltage & frequency
Core ComponentsPLC, Motor, Pump, Gear, Bearing, Gearbox
Matching EquipmentVacuum emulsifying tank, storage mixing tank, CIP cleaning system
Compliance StandardGMP hygiene standard

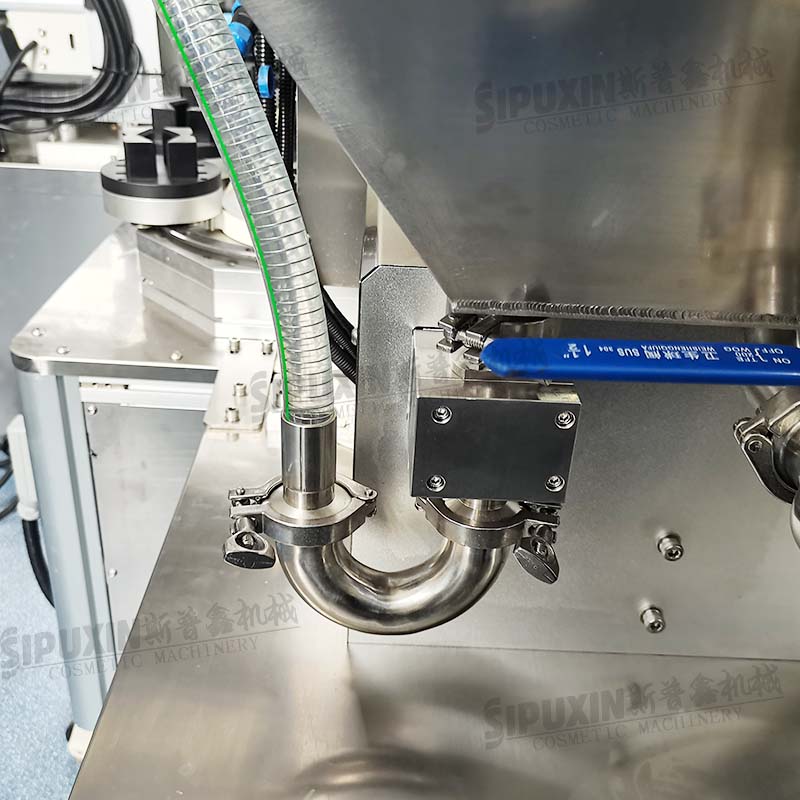

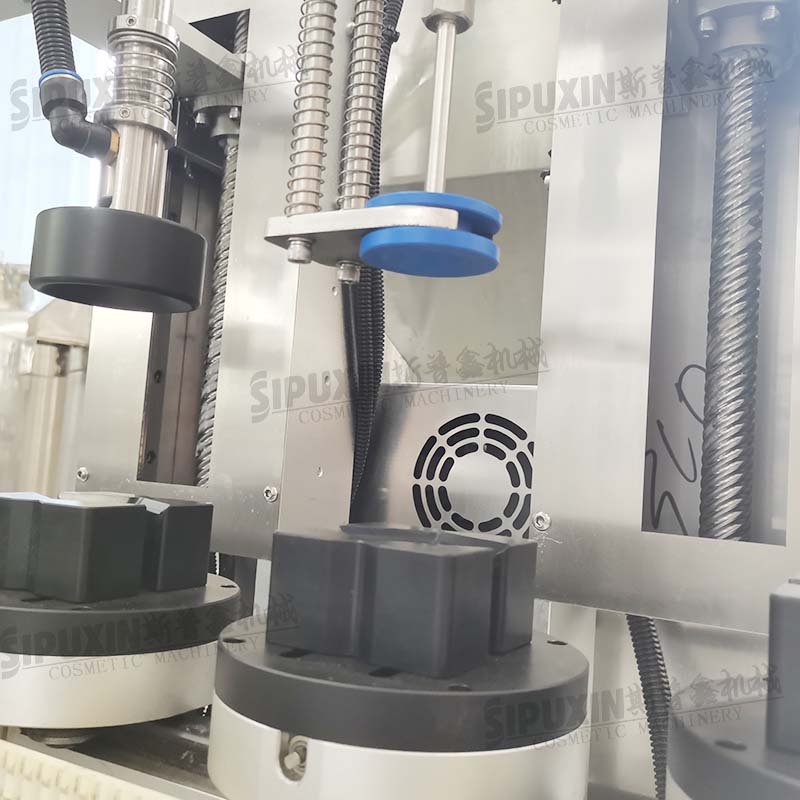

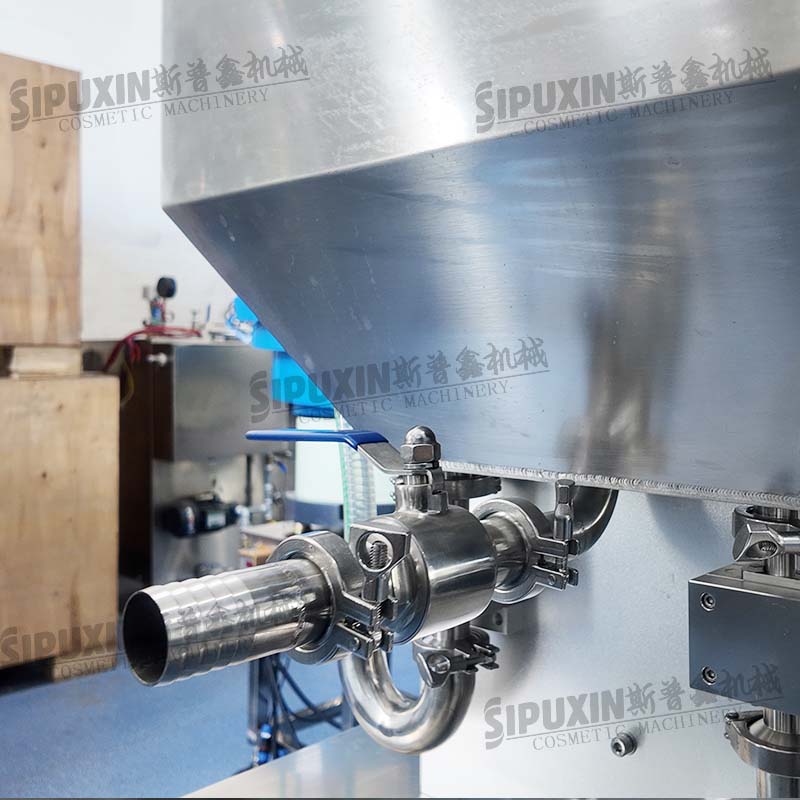

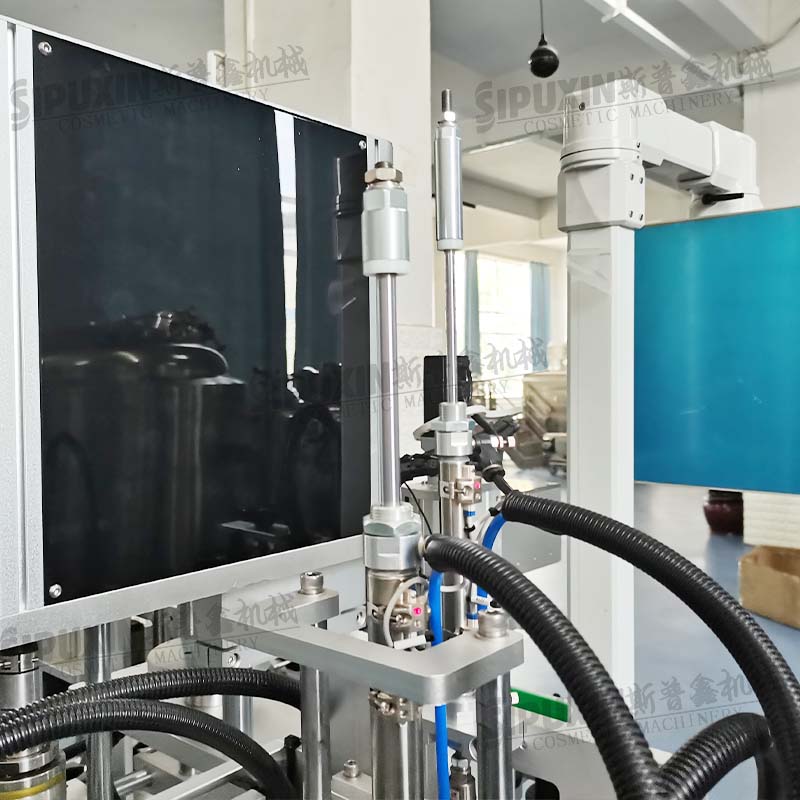

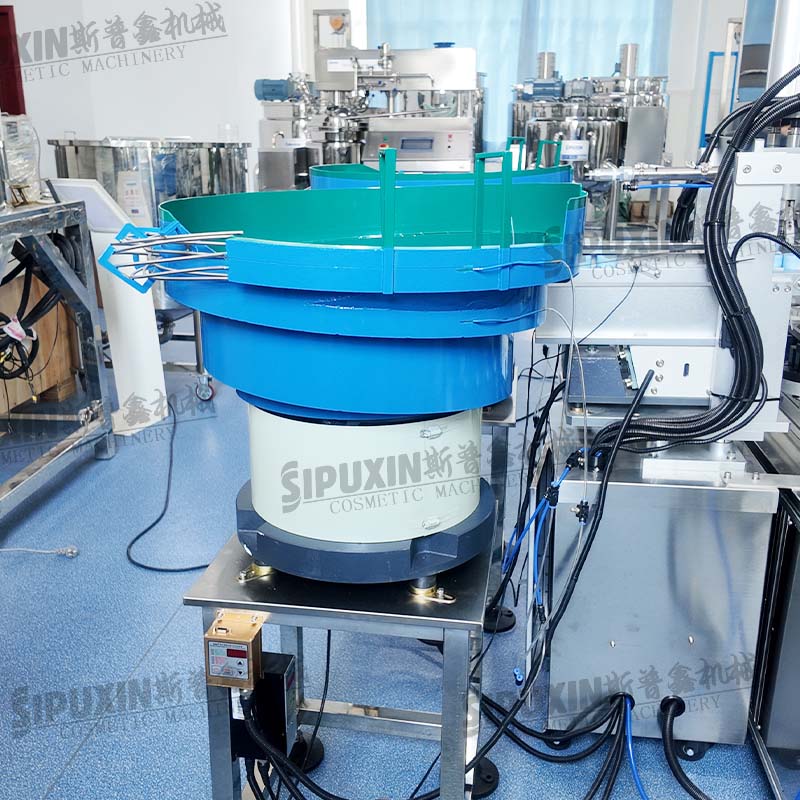

Details Images
