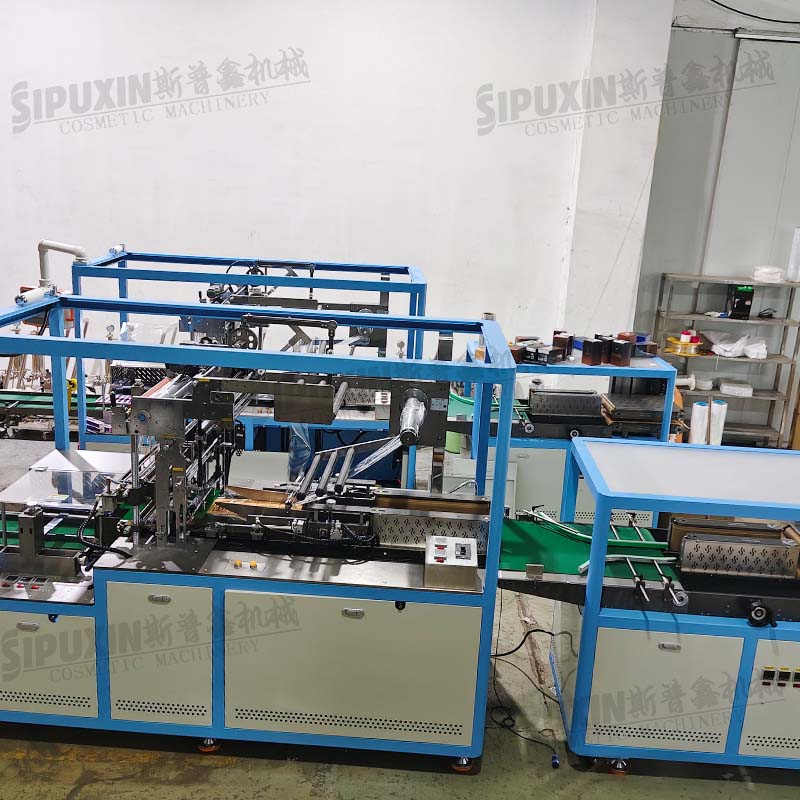

Fully Automatic 3D Cigarette Cellophane Wrapping Machine | 3D Transparent Film Overwrapping Machine for Cosmetic Food Pharmaceutical Box Packaging
spx-wrap-2669
high-end box transparent film packaging equipment designed for cigarette, cosmetic, food and pharmaceutical industries. Adopting PLC fully automatic control system + HMI touch screen operation, paired with a high-precision servo positioning system, it can realize fully unmanned operation of the whole process: automatic box feeding, automatic film feeding, 3D all-round wrapping, automatic heat sealing, and automatic box discharging. The finished packaging is flat and beautiful, with good sealing performance, which can effectively prevent moisture, dust and counterfeiting, and improve the product grade.
Quantity:
Fully Automatic 3D Cigarette Cellophane Wrapping Machine (3D Transparent Film Overwrapping Machine) is a high-end box transparent film packaging equipment designed for cigarette, cosmetic, food and pharmaceutical industries. Adopting PLC fully automatic control system + HMI touch screen operation, paired with a high-precision servo positioning system, it can realize fully unmanned operation of the whole process: automatic box feeding, automatic film feeding, 3D all-round wrapping, automatic heat sealing, and automatic box discharging. The finished packaging is flat and beautiful, with good sealing performance, which can effectively prevent moisture, dust and counterfeiting, and improve the product grade.
The machine is suitable for regular square/rectangular boxes such as cigarette packs, cosmetic boxes, food boxes, and medicine boxes. The mold can be quickly replaced to adapt to products of different specifications, with a packaging speed of up to 20-60 boxes per minute. It is easy to operate and maintain, and is an ideal equipment for the back-end packaging of products in cigarette, cosmetic, food, pharmaceutical and other industries. It can perfectly match the front-end production lines such as filling, capping and labeling, to realize full-process automated production.
The machine is suitable for regular square/rectangular boxes such as cigarette packs, cosmetic boxes, food boxes, and medicine boxes. The mold can be quickly replaced to adapt to products of different specifications, with a packaging speed of up to 20-60 boxes per minute. It is easy to operate and maintain, and is an ideal equipment for the back-end packaging of products in cigarette, cosmetic, food, pharmaceutical and other industries. It can perfectly match the front-end production lines such as filling, capping and labeling, to realize full-process automated production.
| Parameter | Specification |
|---|---|
| Product Name | Fully Automatic 3D Cigarette Cellophane Wrapping Machine |
| Suitable Packaging Object | Cigarette packs, cosmetic boxes, food boxes, pharmaceutical boxes, health product boxes and other regular square/rectangular boxes |
| Packaging Speed | 20-60 boxes/minute (customizable according to box size and material) |
| Applicable Box Size | Length: 50-200mm, Width: 30-100mm, Height: 10-80mm (customizable) |
| Packaging Material | BOPP transparent film, PVC film, cellophane film (thickness: 0.02-0.05mm) |
| Control Mode | Fully automatic PLC control + HMI touch screen operation |
| Rated Voltage | 220V/380V, 50/60Hz (customizable according to national standards) |
| Total Power | 3-5 kW (customizable) |
| Air Pressure Requirement | 0.4-0.6 MPa |
| Air Consumption | 0.2-0.4 m³/min |
| Overall Dimension | Approx. 2500×1200×1500 mm (main machine, customizable) |
| Net Weight | Approx. 800-1200 kg (varies with configuration) |
| Main Application | Cigarette, cosmetic, skin care product, candy, chocolate, medicine, health product box transparent film packaging |
| Optional Features | Stainless steel 304 material, explosion-proof design, automatic box feeding system, code printing function, custom mold for special-shaped boxes |
✅ Fully Automatic 3D Wrapping: One-click operation to complete 360° all-round transparent film wrapping, no manual intervention required, greatly improving production efficiency
✅ High Precision & Stable Performance: PLC control + servo positioning system, accurate film feeding and box positioning, stable packaging effect, low failure rate
✅ Wide Compatibility: Adapt to 50-200mm length square/rectangular boxes, quick mold replacement for different products, suitable for cigarette, cosmetic, food, pharmaceutical industries
✅ Beautiful & Protective Packaging: Flat and wrinkle-free finished packaging, good sealing performance, effective moisture-proof, dust-proof and anti-counterfeiting, enhance product shelf life and grade
✅ Easy to Operate & Maintain: HMI touch screen with intuitive interface, no complex training required; modular design, easy to disassemble and maintain, reduce downtime
✅ Customizable Configuration: Support SS304 stainless steel material, explosion-proof design, automatic box feeding, code printing and other custom functions, meet diverse customer needs
✅ Perfect Line Matching: Can be seamlessly connected with filling, capping, labeling and other front-end equipment, to build a fully automated production line
