Laboratory Small Batch Emulsifying Machine 25L Electric Heating Lifting Homogenizer with Weighing System & 10HP Chiller

SPX -RH25

Quantity:

Contact Now

add to cart

Introduction

This 25L lifting Vacuum emulsifier is integrated with electric heating, PLC intelligent control and high-precision weighing system, paired with a 10HP industrial chiller for constant temperature cooling. It combines emulsifying, mixing, homogenizing, heating, cooling and automatic weighing functions in one unit. The liftable design facilitates material feeding, discharging and equipment cleaning. Widely applied in cosmetics, pharmaceuticals, food, daily chemicals and fine chemical industries for small-batch production, formula research and sample testing

Key Advantages

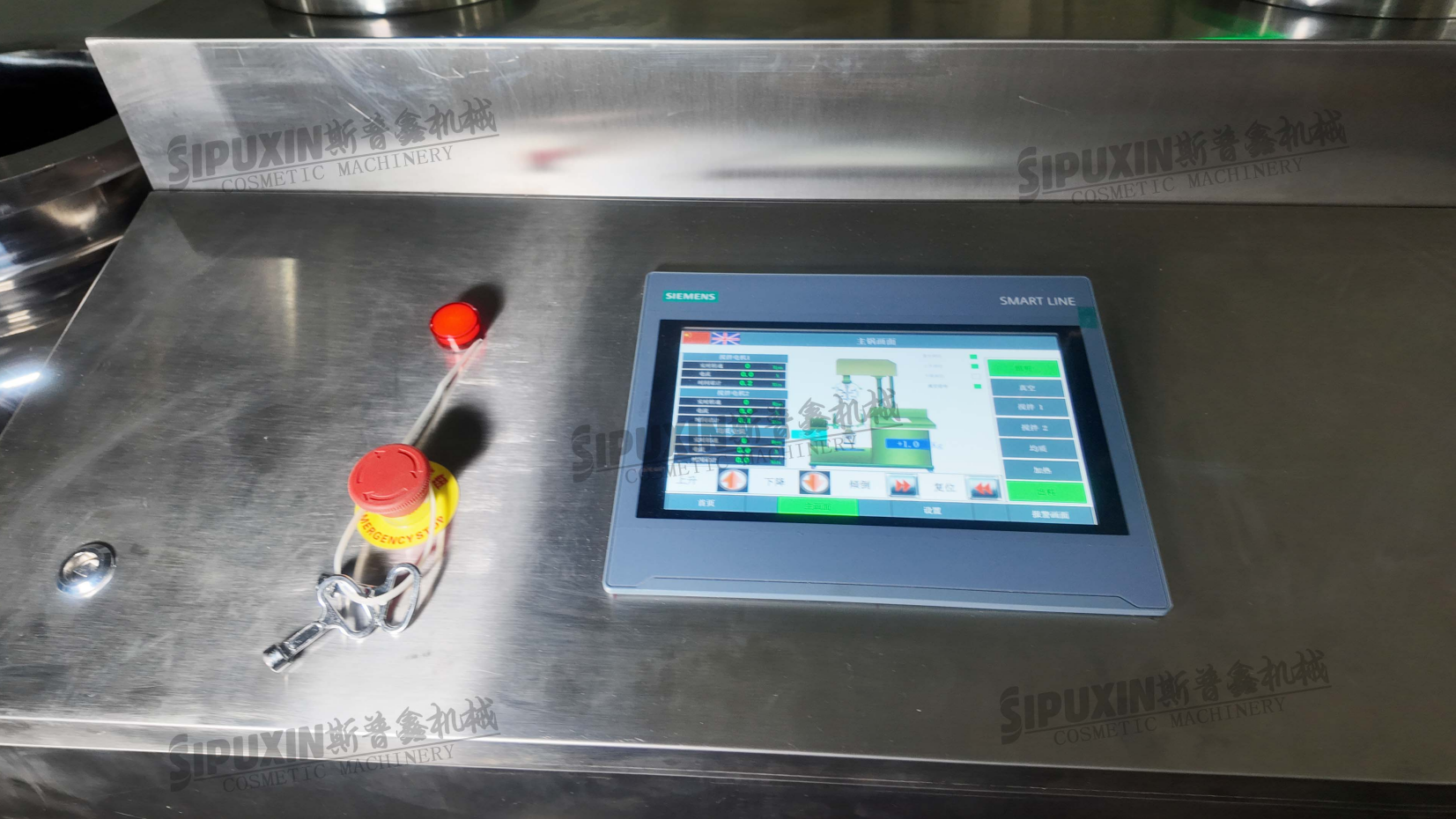

1. PLC Intelligent Control & Accurate Weighing

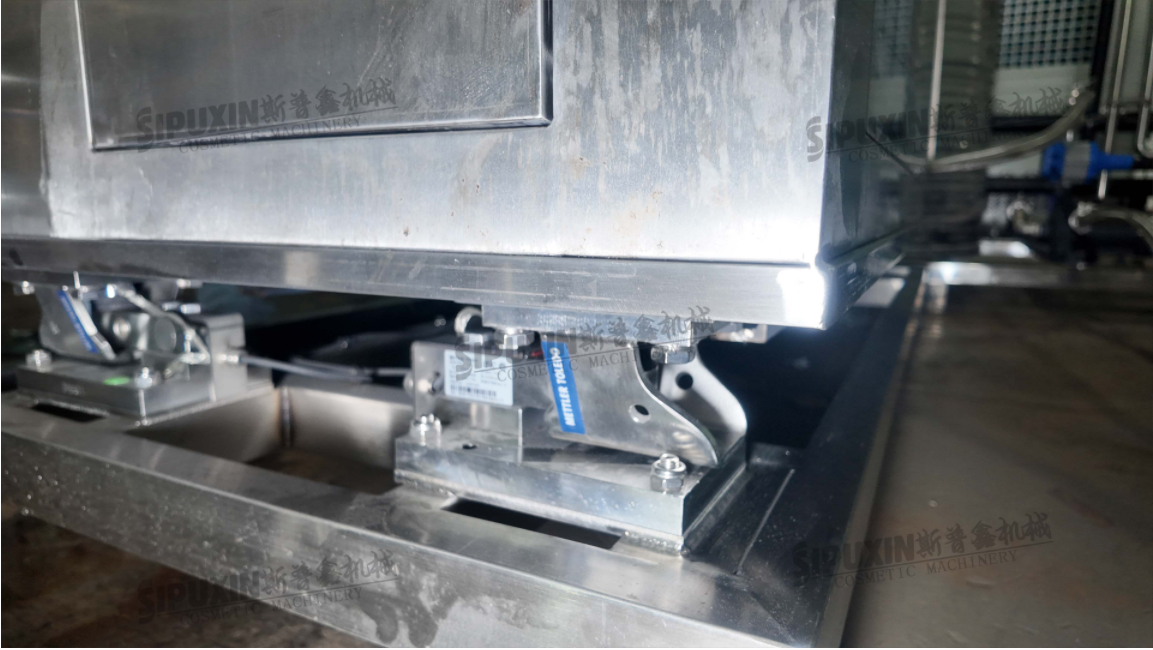

Equipped with professional PLC control panel, all working parameters can be set and monitored digitally. The built-in high-precision weighing system realizes automatic batching and quantitative feeding, effectively reducing manual errors and ensuring consistent product quality.

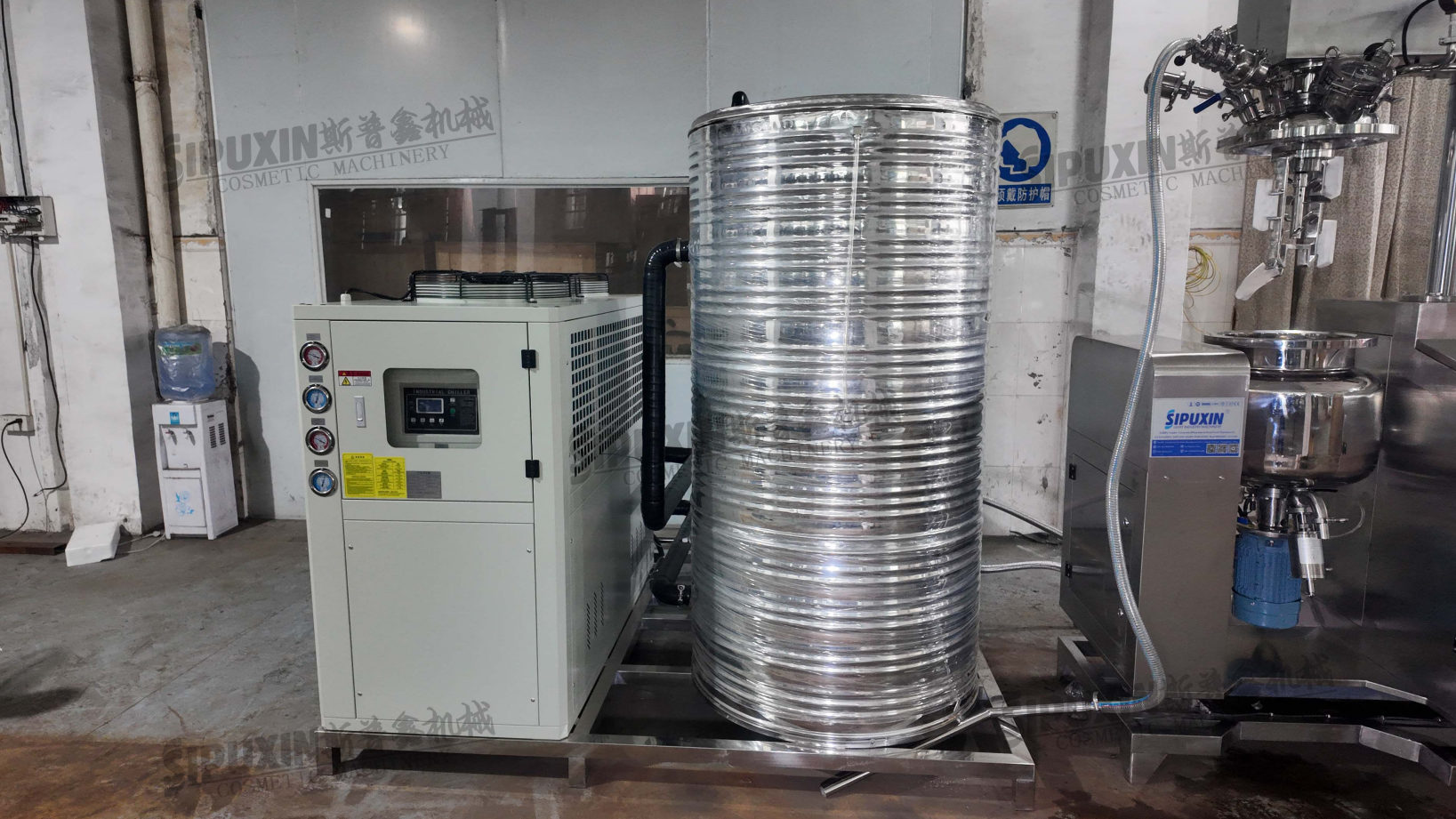

2. Electric Heating & 10HP Chiller for Precise Temperature Control

Independent electric heating system delivers fast and uniform heating. Matched 10HP water chiller provides efficient circulating cooling. Heating and cooling work stably to meet different technological temperature requirements for various materials.

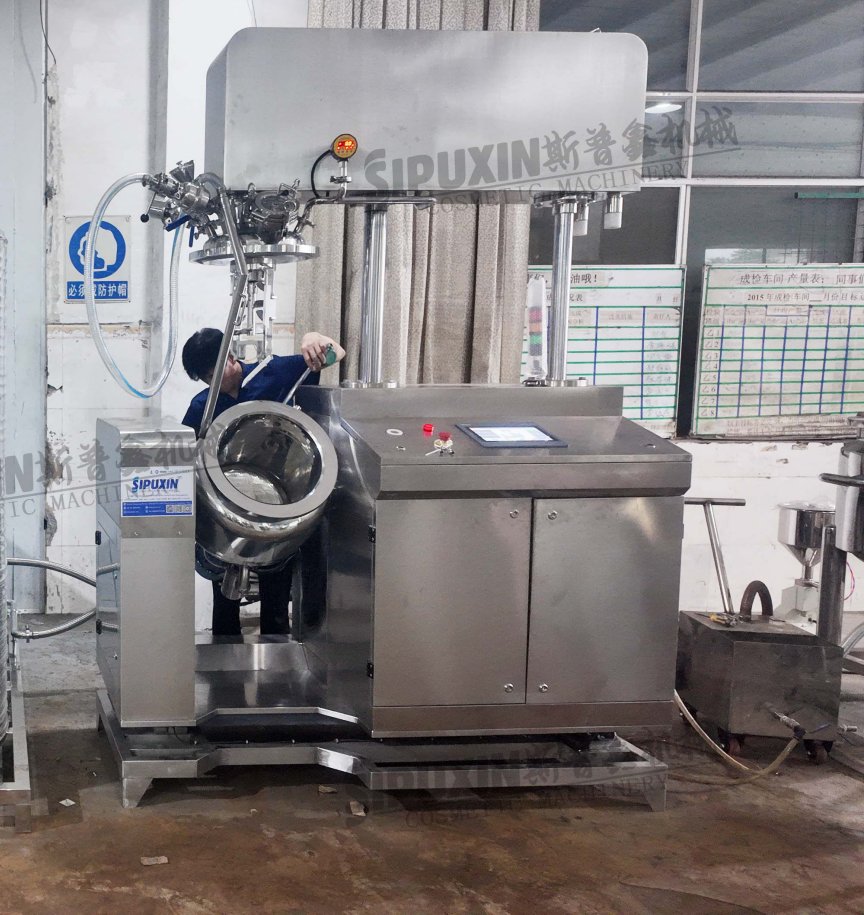

3. Lifting Structure for Easy Operation

Hydraulic lifting design makes the tank body and emulsifying head lift smoothly. It is convenient for material loading, residue cleaning and mold/head replacement, greatly improving operation efficiency and hygiene level.

4. Excellent Emulsifying & Homogenizing Performance

High-speed homogenizing rotor-stator structure realizes ultra-fine emulsification, mixing and dispersion. Materials achieve fine texture, stable layering resistance and uniform composition, ideal for high-viscosity and high-fineness products.

5. Premium Material & Stable Operation

Main contact parts adopt food-grade stainless steel, anti-corrosion, easy to clean and compliant with sanitary production standards. The whole machine runs smoothly with low noise, low failure rate and supports long-time continuous operation.

6. Multi-function Integration & Wide Application

Integrate emulsification, stirring, heating, cooling, weighing and lifting functions. Compact structure, flexible to use, perfect for laboratory R&D, pilot test and small-scale formal production.

Product parameter

Product name	Vacuum homogenizing emulsifier
Material	SUS304/316
Application scope	cosmetic,food, facial cream, shaving cream, sunscreen cream
Range of spindle speed	0-63 rpm, speed be adjusted
Capacity	Design Capacity: 6L, working capacity: 5L
Main vacuum pot power(KW)	3kw
Frequency mixing power(KW)	1.3KW
Vacuum pump(KW)	0.09-0.02Mpa, 1.1KW
Weight (KG)	150 KG
Heating types	Electric heating (15KW）steam heating（48KW)
Homogeneous speed	0-3000rpm, speed be adjusted

Machine components details
