Product Description
The fully automatic rotary perfume filling machine is core equipment for high-precision and high-efficiency filling of daily chemical liquids such as perfume, toilet water and essential oil. Adopting a rotary turntable structure, it integrates multiple processes including bottle washing, filling, crimping and capping into one unit.
Performance
Rotary 3 Heads Perfume Cleaning & Filling & Crimping & collaring & automatic to put bottles on conveyor & Automatic cap feeder.Machine is used for filling perfume, floral water, and other water based materials. It is a rotary type machine with 4 filling heads, which could fill 4 bottles at the same time, it is efficient and labour-saving. It consisted of automatic air cleaning, filling, pump pisitioning , crimping & collaring device, &automatic to put bottles on conveyor&Automatic cap feeder. Main function as these are automatic by the system, only need manual put bottles. Molds are adjustable for different kind of bottles. The rotary filling heads are working with lifting and descending support device, these process are running automatically. It is also equipped with a recycle system, after reaching set volume the overflowed liquid will be recycled inside the container, which saving time and labor tensity.
working Process
.Manual empty bottle feeding - Air cleaning - Liquid filling - Vacuum suction -Auto Pump Feeding (with pump feeder)- Pre-crimping - Auto crimping - Auto collar feeding (with collar feeder)- Auto collaring - Auto outputting - Manual outer cap feeding
Capacity
30-35 BPM
Filling range
10-500ML
Material
SUS304/316L
Applicable Bottle Height
10-70/60-200 mm(mould can be adjust)
Crimping diameter
13，15，17，19，22mm
Filling error
±1%
Details Images
Air bottle cleaning
Use the blowing/suckingnozzle to remove the dustand static electricity in thebottle for subsequent fillingcleaning.
Ar cleaning and fill
3 nozzles vacuum filling.Vacuum filling system solved the problem that liquid not in the same level , and there is no need to worry about the impact ofbottle errors on the filling volume.

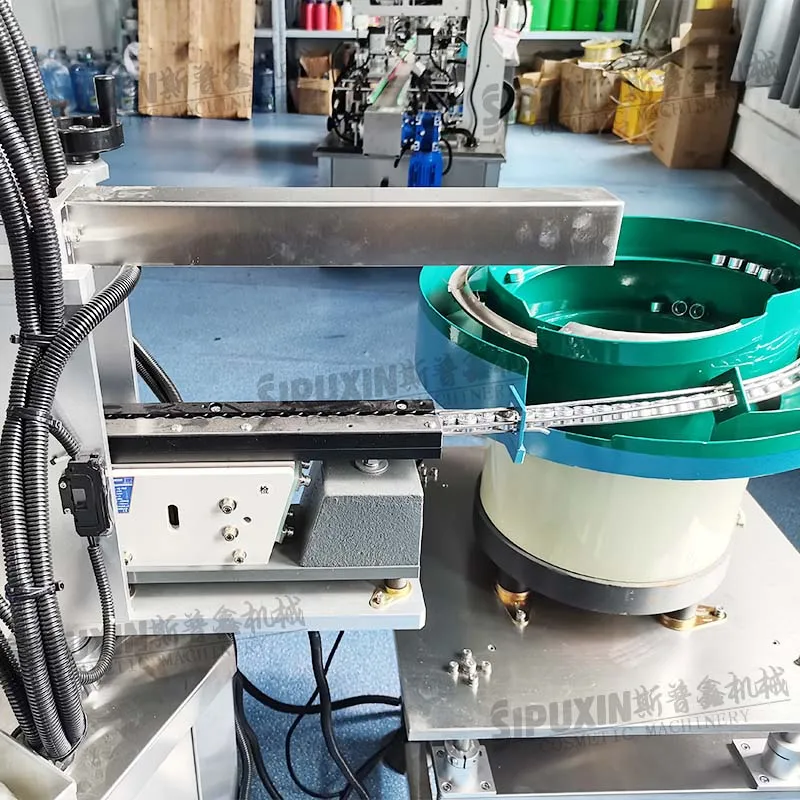

vibrating plate
The vibrating plate organizes the collar into a uniform direction and arranges them in an orderly manner for output, and conveys
them to the collar placement station through the collar-feeding track.
Crimping head
Pump pre-pressing and crimping part,different sizes of pump need replace the crimping mold.
Collaring Head
motor
Middle collar pressing part, the collar needs to be placed manually.Depending on the bottle type, the mold can also be changed to press the inner plug or outer cap.
