50L Movable Vacuum Emulsifier, High Shear Homogenizer Mixer For Cosmetic Cream Lotion Gel Making

SPX-RHJ

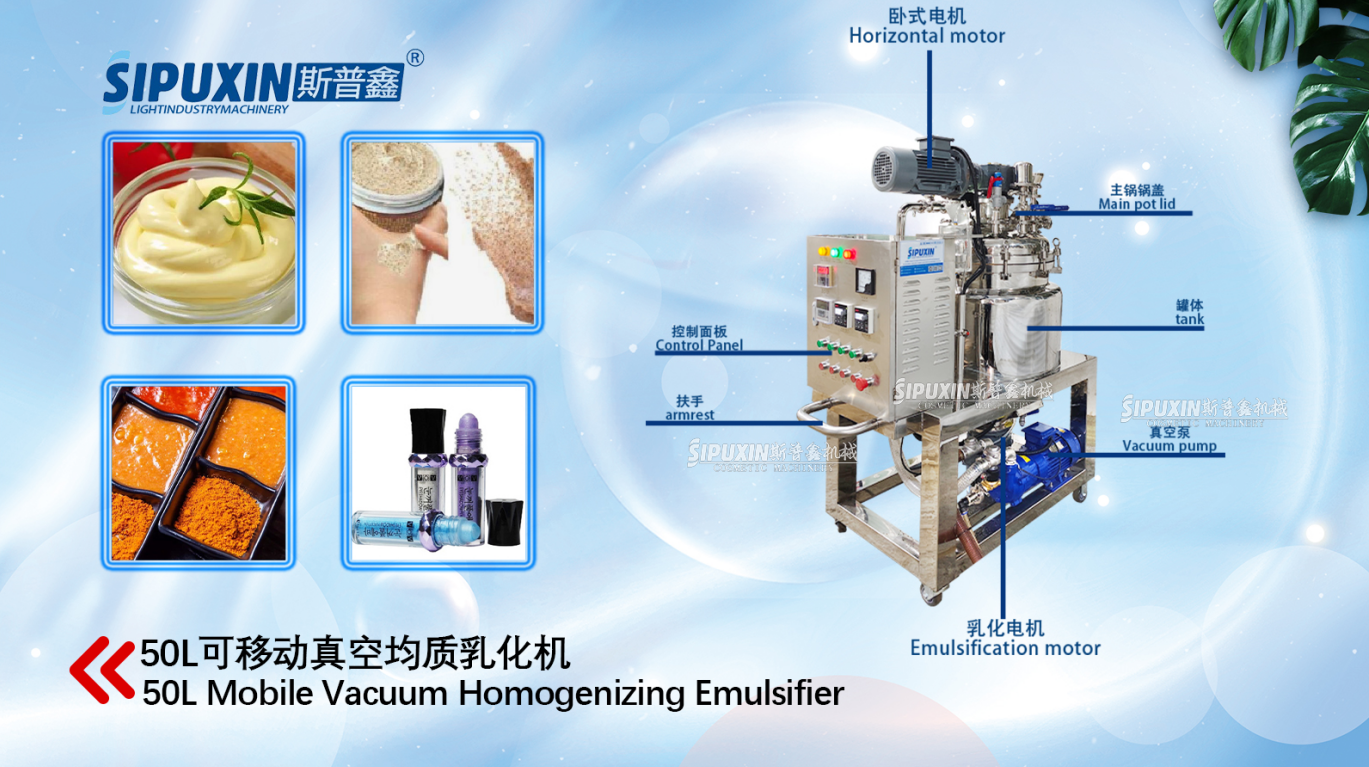

This 50L movable & fixed vacuum emulsifier is professionally designed for small-batch production and pilot test. Adopting high-shear homogenizing technology and vacuum defoaming system, it realizes integrated functions of stirring, emulsifying, mixing and homogenizing. Movable and fixed dual design meets flexible workshop layout requirements. Made of food-grade SUS316L stainless steel, with heating & cooling structure and anti-wall sticking stirring, it is widely used in cosmetics, daily chemicals, pharmaceutical ointments, gels, pastes and high-viscosity materials manufacturing. Stable operation, easy cleaning, energy-saving and high efficiency, ideal core equipment for medium and small factories and laboratory research and development.
Quantity:
Contact Now
add to cart
This 50L movable & fixed vacuum emulsifier is professionally designed for small-batch production and pilot test. Adopting high-shear homogenizing technology and vacuum defoaming system, it realizes integrated functions of stirring, emulsifying, mixing and homogenizing. Movable and fixed dual design meets flexible workshop layout requirements. Made of food-grade SUS316L stainless steel, with heating & cooling structure and anti-wall sticking stirring, it is widely used in cosmetics, daily chemicals, pharmaceutical ointments, gels, pastes and high-viscosity materials manufacturing. Stable operation, easy cleaning, energy-saving and high efficiency, ideal core equipment for medium and small factories and laboratory research and development.
Vacuum Homogenizer Emulsifying Mixer tank is the most advanced blending equipements in fields of diary products, beverages, fruit juice and foods, etc. When the high-speed super-fine emulsification paddle works, it throws the materials in the center of rotor to stator at a high speed,then through tooth clearance of stator,and shearing,collision and crushing between rotor and stator,the super-fine emulsification is realized. therefore,it is an integrated equipment comprising functions such as blending, emulsifying, homogenizing, solving and crushing.
Sealing device
The fully colsed system can meet the asptic dust-free, meet the high standard of the production requirements,there are mirror lamp,material inlet valve,exhaust valve and other device on the cover.
Homogenizer
Frequency conversion speed regulation, up to 3000 RPM, can accelerate the melting material, make the mixing material more
uniform,more delicate.
One-way stirring
1.Fixed slurry + scraping wall scraping bottom stirring bladeensures material rolling and stirring.

2.Effect Seamless welding,easier to clean after production .
Button control panel
Press these button to control the machine start or stop operation; also can adjust the parameter according to different materials,which is easy to operate.
Button control panel
This is control panel's inside construction,frequency converter adopts the Swedish ABB brand
Vacuum Pump
The function of the vacuum pump is to remove gas molecules from the vacuum chamber, reduce the gas pressure in the vacuum chamber, and make it reach the required vacuum degree. Vacuum pump is the use of mechanical, physical, chemical, physical and chemical methods to pump gas to the container
item
value
Type
Vacuum Homogenizer Emulsifying Mixer tank
Capacity
50L
Heating way
Electric Heating
Homogenizing
Bottom homogenizing
Homogenizing speed
0-3000PRM
Mixing speed
0-63RPM
Appliaction
Detergent
Material
Stainless Steel 304 / SUS316L
