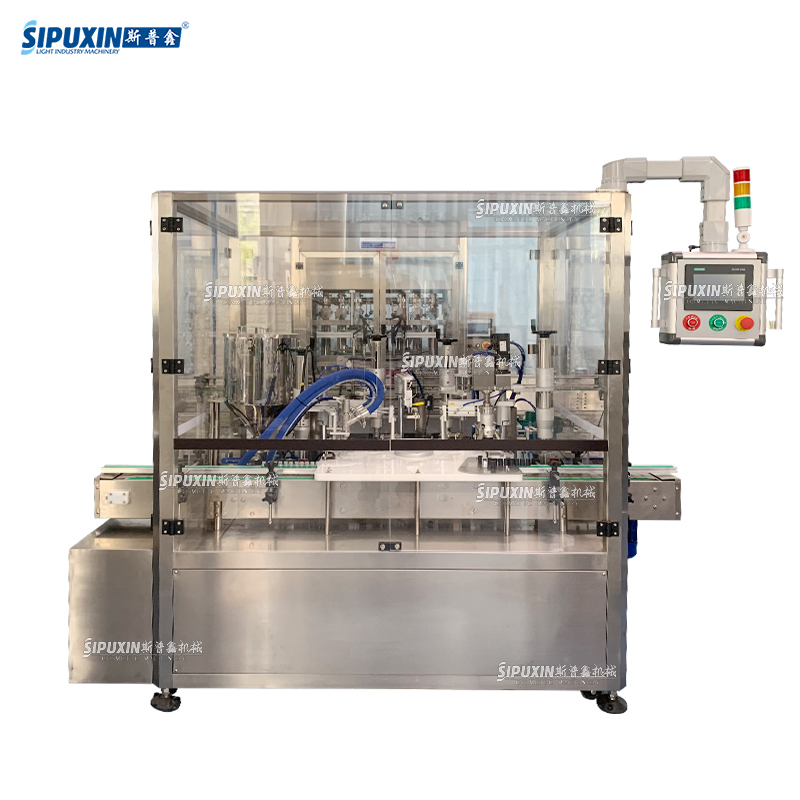

Anti corrosion filling machine

Full Automatic Anti-corrosion filling machine Toilet Cleaner Bleach Hcl Acid Chemical Corrosive Liquid Filling Machine

SPX-AA135
Quantity:
Contact Now
add to cart
Product Description

Strong Acid Alkali Filler Corrosion Resistant Liquid Filling MachineAnti corrosion filling machine is a machine developed for filling corrosive liquids and cosmetics that cannot come into contact with metals. The main body of the equipment is made of PP (polypropylene) material, and the liquid passing part is made of polytetrafluoroethylene material. The exposed metal parts on the outside (such as cylinders, motors, etc.) are protected and placed in PP plastic boxes to prevent damage from volatile corrosive gases and ensure long-term use of the equipment. The equipment is controlled by PLC and touch screen,with stable performance and clear parameter settings.
Anti corrosion filling machine is equipped with a suction tube, which can automatically suction and fill, eliminating the need for filling steps. The large-diameter filling nozzle is equipped with a cylinder. Automatic suction and sealing to prevent dripping. The combination of oil cylinder and air cylinder makes filling smoother and more stable and prevents splashing.
Application
This machine specially designed for powerful toilet cleaner,all the parts which contact with the toilet cleaner are made from plastic.This machine uses a compressor as the power ,is workable without any external electric power,it’s easy to adjustment filling volume and speed ,easily operate.
Machine weight
About 2000kg
Voltage
110/220v 50-60hz 1.5kw(can customize)
Suitable bottle diameter
Detro 30mm-F120mm
Hopper Size
about 2000*350*300mm(customized)
Driven Type
Steam or Electric heating
Filling speed
600 BPH (depending on filling volume)
Filling range
100ml-3000ml
Details Images
Control panel
Equipped with a touch screen control panel, operators can monitor machine performance in real time, which allows for immediateadjustments and maintenance, thus minimizing downtime.

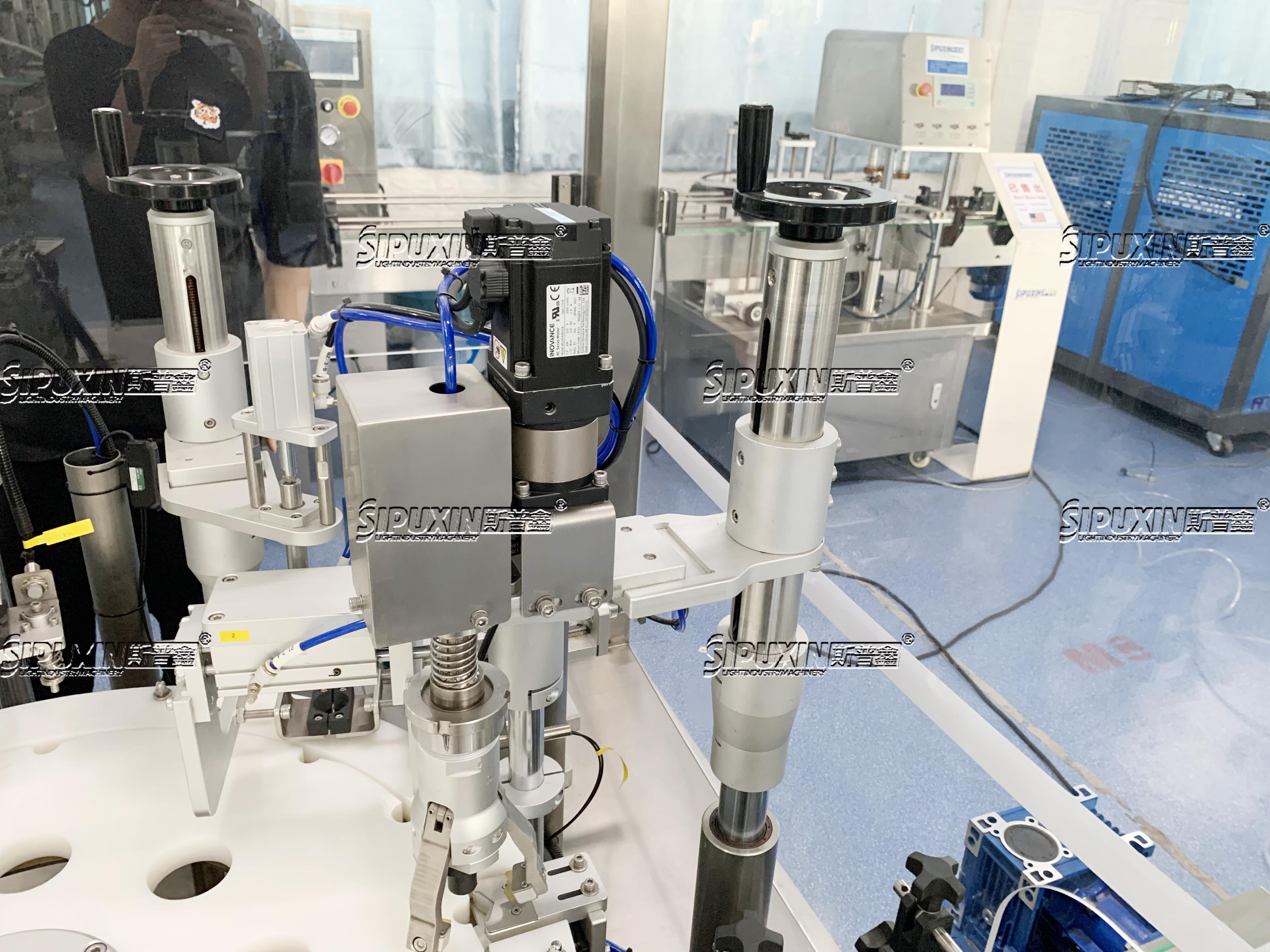

Filling device
Equipped with anti-dripping nozzles, these can reduce leakage, anti-dripping nozzles help maintain a cleaner workplace, can reduce
the risk of slips and chemical burns.

Detector device
Equipped with electric eye to detect the bottles passing through, it can send signal to the system and control the machine to work
automatically. The sensitivity of electric eye can be adjusted according to the containers, it improves the working accuracy.
Feeder pump
Use diaphragm pumps to supply filling material, this provides good control over discharge pressure and flow rates, which isimportant for accurate filling operations.
Conveyor belt
motor
Equipped with chain conveyor, the width and length can be customized according to production requirement. It has high weight
capacity, it can ensure the products can be transmitted smoothly.
