Powder Makeup Heating Filling Machine
spx-f0728
SIPUXIN heating paste filling machine for cosmetics, lip balm, wax, body scrub. Single head gear pump with heating & stirring, SUS316L, high accuracy. Buy from China factory.
Quantity:

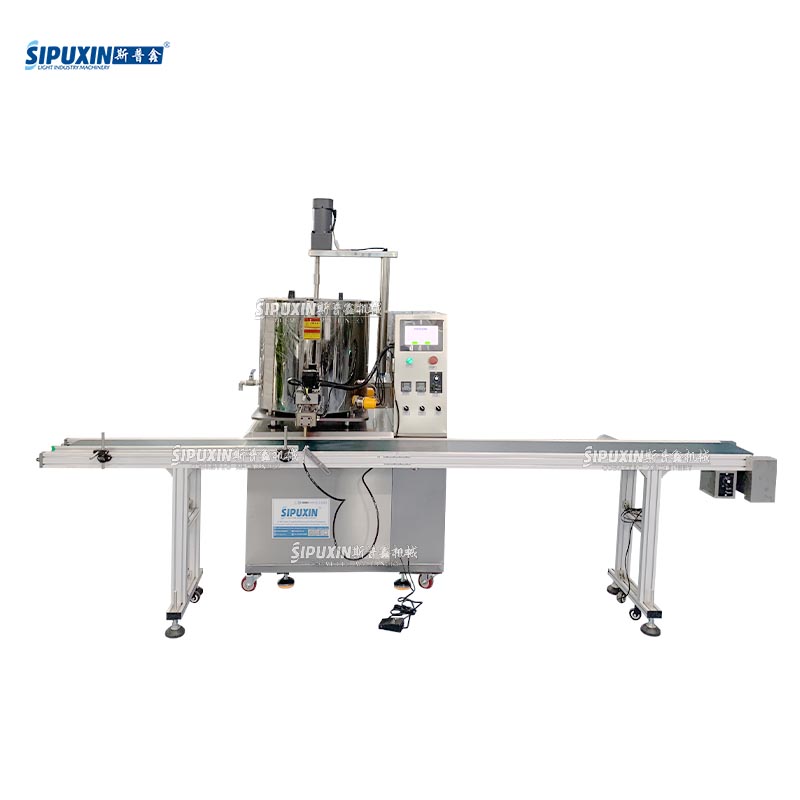

SIPUXIN Single Head Heating & Stirring Paste Filling Machine
This automatic heated filling machine integrates heating, stirring and filling functions. It is designed for high-viscosity materials easy to solidify, including powder makeup, lip balm, body scrub, hair wax, ointment and cosmetic cream. Equipped with constant temperature system and mixing mechanism, it effectively avoids material precipitation and solidification to achieve stable filling performance.

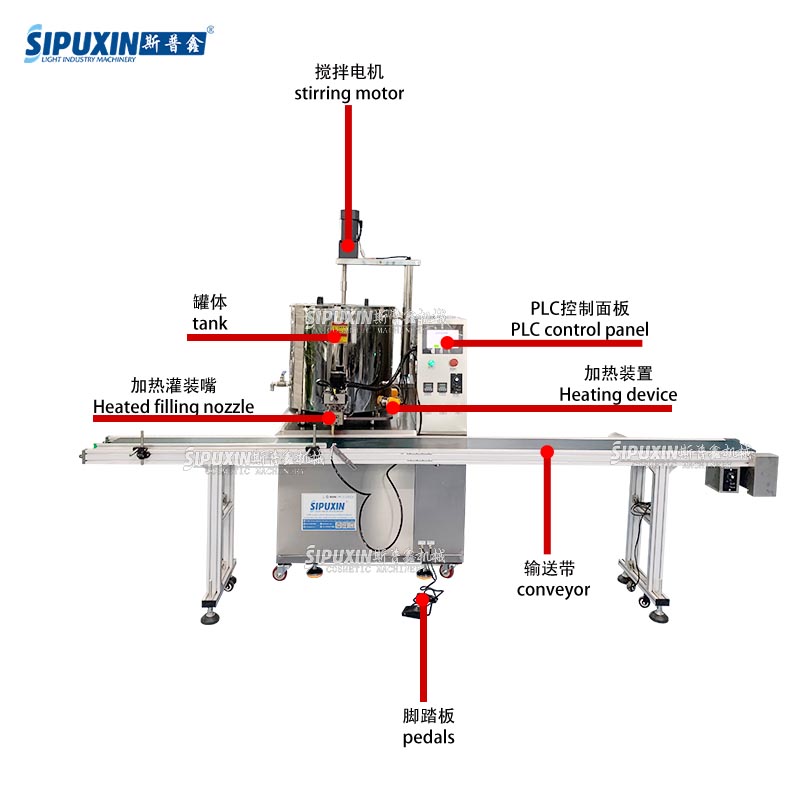

Main Structure & Components
| Component Name | Function Introduction |
|---|---|
| Stirring Motor | Drive internal agitator to keep materials evenly mixed, prevent material layering and precipitation |
| Tank | Double-layer jacket SUS316L stainless steel tank for material storage and heat preservation |
| Heating Device | Constant temperature control for tank, adjustable temperature to maintain good material fluidity |
| Heated Filling Nozzle | Heating insulated discharge outlet with anti-drip structure, avoid nozzle blockage from cooled solid materials |
| PLC Control Panel | Intelligent operation panel, set filling volume, speed, temperature and stirring speed freely |
| Conveyor | Automatically convey containers, connect with downstream equipment to realize assembly line production |
| Pedals | Semi-automatic trigger switch, support manual single filling for small batch trial production |
Core Advantages
All parts contacting materials adopt food-grade SUS316L stainless steel, meet cosmetic and food hygiene standards, easy to disassemble and clean. Gear pump metering filling, high filling accuracy within ±1% tolerance. Two working modes: fully automatic conveyor production and pedal semi-automatic filling. Machine base fitted with moving casters, convenient for position adjustment in workshop. Adaptable for jars, bottles, cans and other different containers.
Technical Specification
| Item | Parameter |
|---|---|
| Voltage | 220V / 50Hz |
| Filling Speed | 30~50 bottles/min |
| Filling Volume Range | 10ml - 1000ml (customized available) |
| Filling Accuracy | ±1% |
| Filling Head | Single Head |
| Working Air Pressure | 0.6~0.8Mpa |
| Overall Dimension | 340016702350mm |
| Net Weight | 100kg |
| Warranty | 1 Year |
Application Scope
Cosmetics: Powder makeup, lip balm, body scrub, hair wax, ointment, face cream, body butter Food industry: Chocolate paste, honey paste, jam and other thermal required thick paste Pharmacy & Chemical industry: Medical ointment, all kinds of viscous wax raw materials
Service Support
We supply mechanical test report and factory operation video. Customization service is available according to your production demands. We provide lifetime online after-sales technical support.
