Vacuum Emulsifier

High Shear Mixer Homogenizer Mixer Cosmetic Vacuum Emulsifying Machine With Cooling Machine

SPX-RH
Quantity:
Contact Now
add to cart
Product Description

Performance
1.The mixer homogenizer structure made through German technology adopts the inported double-end mechanical seal effect.The maximum emulsifying tatation speed can reach 4,200rpm and the highest shearing fineness can reach 0.2-5um.
2.The pot body is welded by imported three-layer stainless steel plate.The tank body and the pipes adopt mirror polishing,which fully confirms to GMP requirements.
3.According to technological requirements,the tank body can heat or cool the materials.The heating modes mainly include steam heating or electric heating.
Application
The machine is mainly applied in such industries as daily chemical care products,food industry,paint and ink,nanometer materials,cosmetic cream,etc.The emulsifying effect is more prominent for materials of high base viscosity and high solid content.
Machine weight
About 200kg
Product name
Liquid soap /cosmetic paste cream making machine
Material
SUS304/316L
Function
Homogenizing and mixing vacuum emulsifier machine
Driven Type
Steam or Electric heating
Type
Homogenizer and mixing, Heating, Emulsifier
Advantage
Customized
Details Images

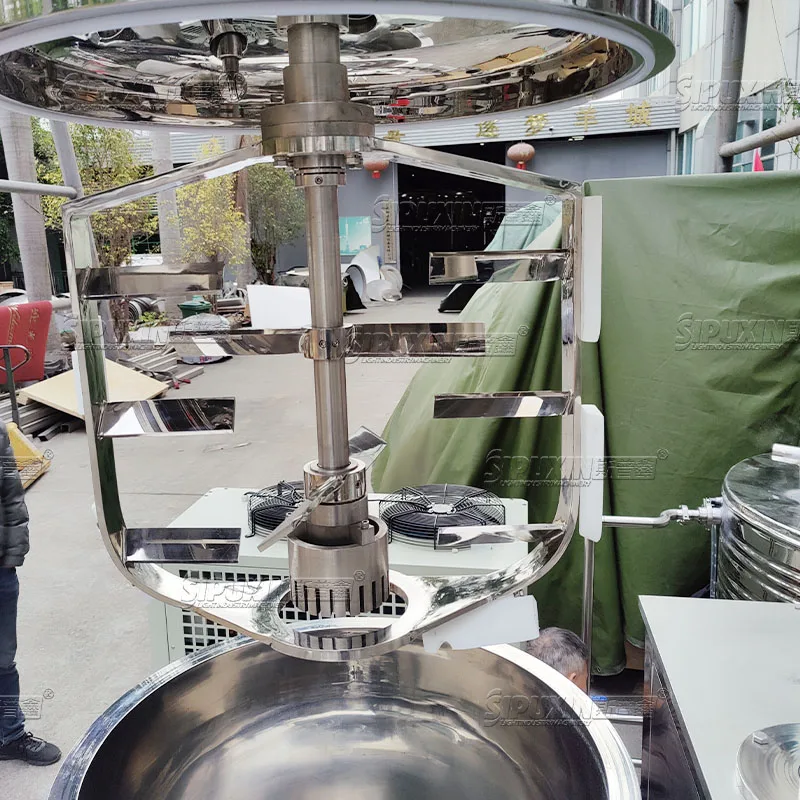

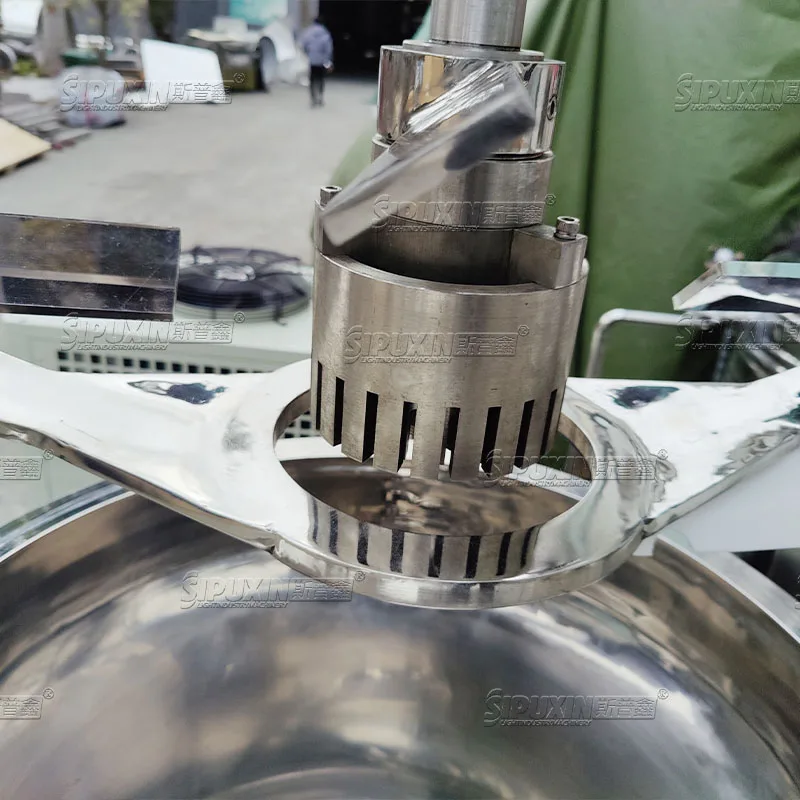

Mixing and shearing system
the mixing system consists of inter fix paddle,scrapper mixer and clockwise direction blender,which the retation speed can reach 63 times per minute.and the perfect mixing result increase the mixing efficiency and performance,as well as heating efficiency.High speed shear top homogenizer to cut and break the insolvable material.

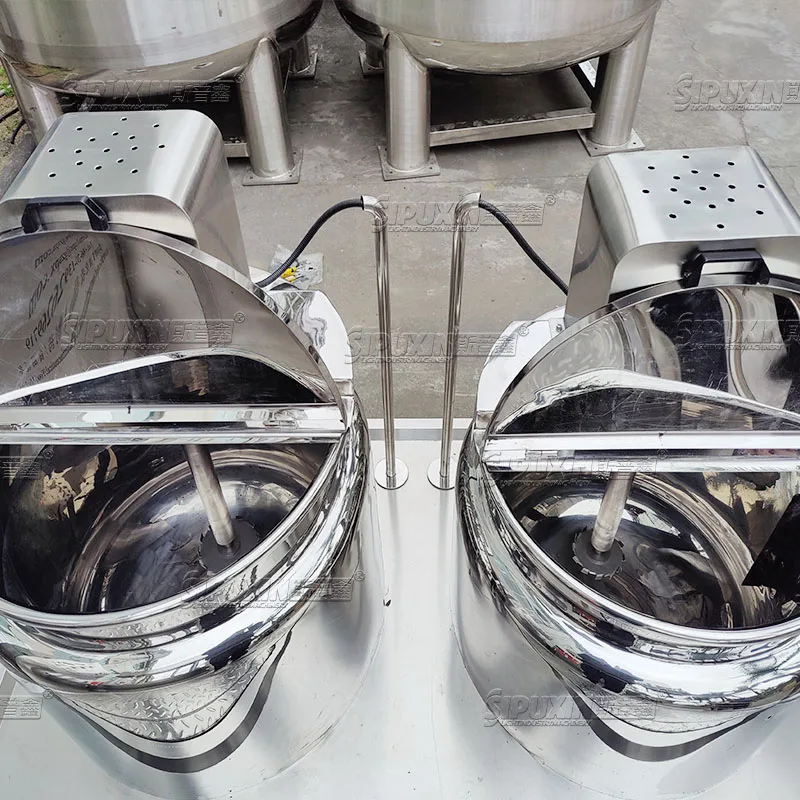

Water Tank And Oil Tank
The water tank and fuel tank are pretreated by electric heating and stirring. On the one hand, it is to microprocess the material which is difficult to dissolve. The other is to reduce damage to the main pot.

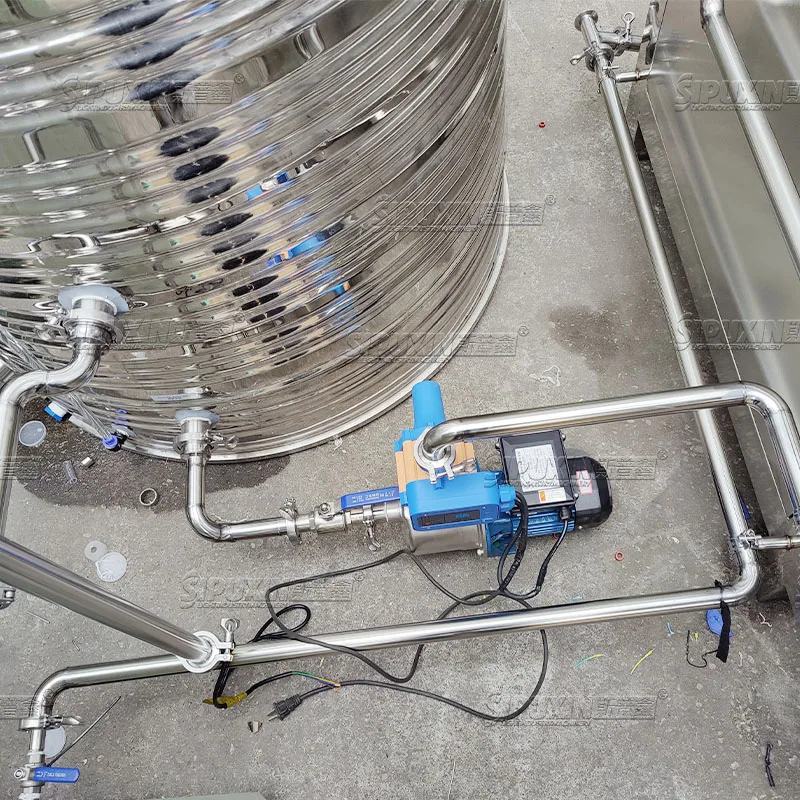

Freezing system
the left side is the freezing cooling system which operate the cold water and than entre into the heating&cooling layer to the finished product cooling speed.quicken
