Full Automatic Chuck-Type Vial Filling Machine
spx-f0907
SIPUXIN fully automatic chuck‑type vial filling machine integrates bottle feeding,filling,stopper pressing and capping. Suitable for pharmaceutical vial,essence serum small glass bottle. SUS304/316L, high filling accuracy, GMP compliant. View parameters and quotation now.
Quantity:

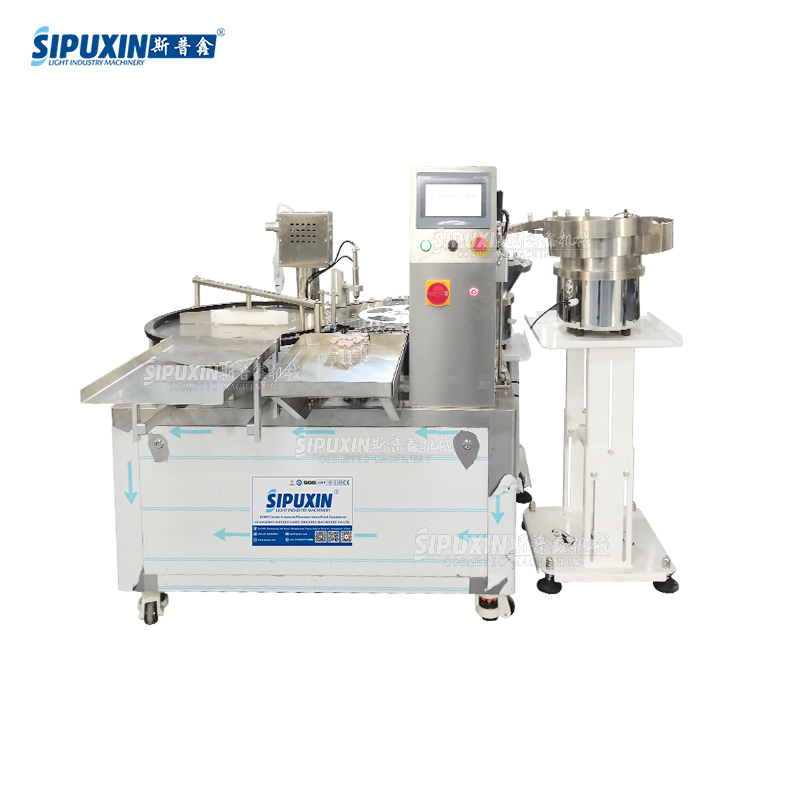

SIPUXIN Fully Automatic Chuck‑Type Vial Filling Machine is specially engineered for small glass vial production in pharmacy and cosmetic industry. It combines feeding, filling, stopper pressing and capping function in one compact rotary machine.
Main Features
- Main frame: SUS304 stainless steel, material contact parts optional SUS316L, conform to GMP standard
- Rotary chuck clamping design, stable hold for small glass vials, prevent bottle falling
- PLC + touch screen operation, easy adjust filling volume, running speed and production parameters
- Vibratory feeder for automatic rubber stopper and aluminum cap feeding
- Optional peristaltic pump / ceramic pump filling, ±1% high filling accuracy for low‑viscosity liquid
- Fast format change for different vial sizes, only mechanical adjustment required
- Safety interlock: stop filling when no bottle arrives, minimize liquid waste
- Universal casters for easy moving and position rearrangement
Technical Specification
| Item | Parameter |
|---|---|
| Applicable bottle | Glass vial, diameter 12‑50mm, height 30‑150mm |
| Filling range | 1‑50ml (custom‑available) |
| Production capacity | 40‑200 bottles / min |
| Filling accuracy | ±1% |
| Power supply | 220V 50/60Hz |
| Total power | 1.8KW |
| Working air pressure | 0.4‑0.6 Mpa |
| Machine material | SUS304; contact part SUS316L optional |
Application
Fit for various small glass vials: injection vial, freeze‑dried powder vial, cosmetic essence & serum vial, oral liquid vial, plant extract liquid and other low‑viscosity liquid products.
We support custom configuration according to your bottle dimension and production requirement. Welcome to send inquiry for quotation and factory test video.
