Cosmetic Production Line 1000L Vacuum Emulsifying Agitator Mixer 18KW Machine Integrated Water Tank Water Treatment Equipment

Product Description



Performance

1.The homogenizing structure made through German technology adopts the inported double-end mechanical seal effect.The maximum emulsifying tatation speed can reach 4,200rpm and the highest shearing fineness can reach 0.2-5um.

2.The pot body is welded by imported three-layer stainless steel plate.The tank body and the pipes adopt mirror polishing,which fully confirms to GMP requirements.

3.According to technological requirements,the tank body can heat or cool the materials.The heating modes mainly include steam heating or electric heating.

Application

The machine is mainly applied in such industries as daily chemical care products,food industry,paint and ink,nanometer materials,cosmetic cream,etc.The emulsifying effect is more prominent for materials of high base viscosity and high solid content.

Capacity	1000L/customization
Heating way	Power:18KW Electric heating water in jacket with tap-water cooling system
Mixing way	Power: 4KW; Speed: 0-63 r/min Mixer：Fixed stirrer & frame-wall teflon scrapping agitator with blade
Material	Stainless steel sus304/sus316L
Homogenizer way	Power: 7.5KW; Speed: 0-3000RPM,speed adjustable
Vacuum system	Power: 3KW
Control way	Button control/PLC+Touch screen

Details Images

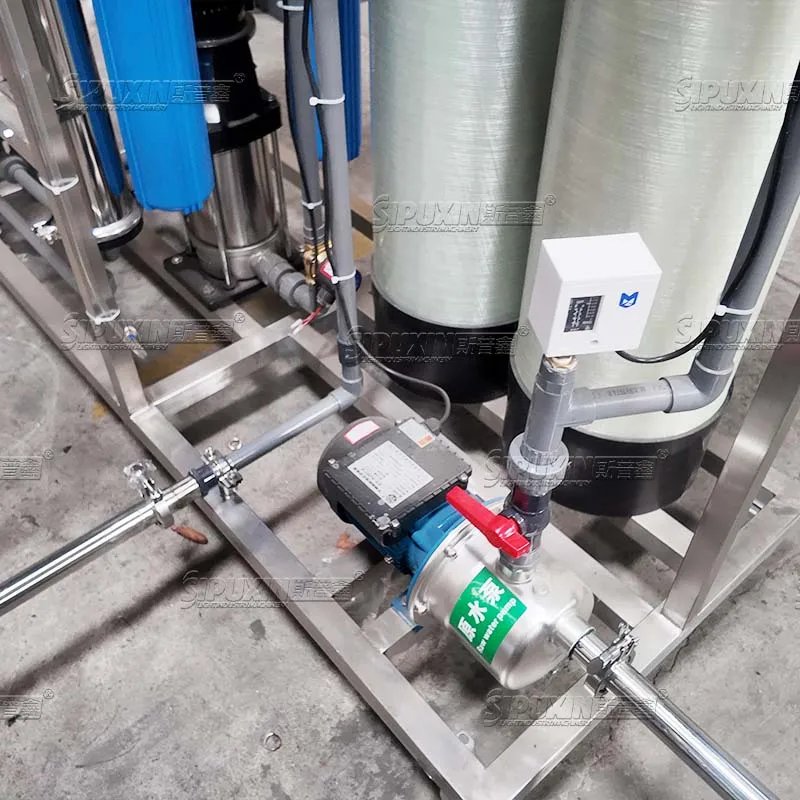

Water treatment+Water tanks

Treated water stored in tank is conveyed into emulsifier as aqueous phase raw material for mixing & homogenization.

Function:
1.Primary water treatment: Purify raw water to cosmetic grade, eliminate contaminants to protect emulsifier.
2. Water storage tank: Store purified water, guarantee steady continuous water supply for 1T vacuum emulsifier.
3. Combined system: Stable water quality & uninterrupted feeding, improve cream/lotion production stability.

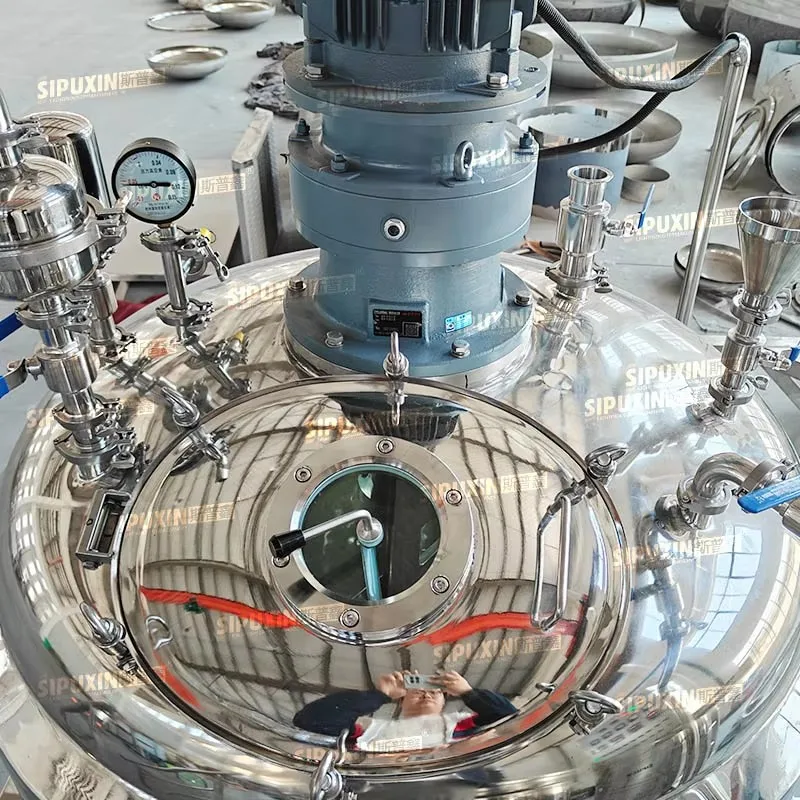

Lid accessories

Sight glass:For better observation of the working situation inside.Material inlet:Transfer the material through vacuum sunction.
Spice bucket:Add the fragrance and small additives.
Air breather:Prevent air from entering when vacuuming; Balance air pressure between pot and outer environment.

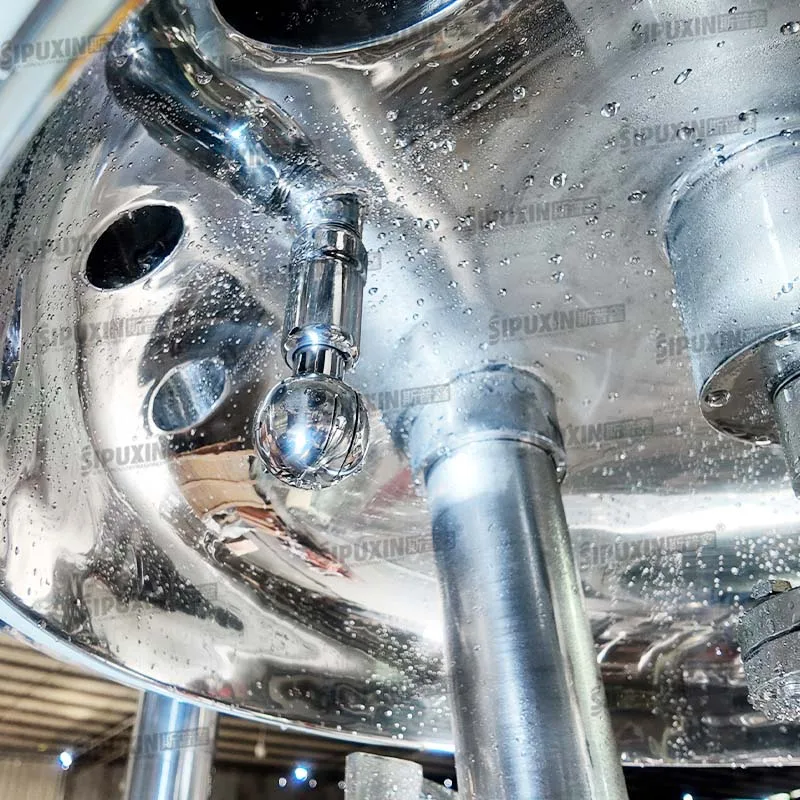

Clean device:Spray ball can 360 ° rotate to clean the pot.
Lamp:For better observation .
Vacuum pressure gauge:Set and display the pressure inside the pot.

Botton control pannel

The control panel convenient for the operator to operate various functions, adjustable frequency, quick start, and immediate stop, which is very sensitive.

Mixing system

the mixing system consists of inter fix paddle,scrapper mixer and clockwise direction blender,which the retation speed can reach 63 times per minute.and the perfect mixing result increase the mixing efficiency and performance,as well as heating efficiency.

Water Tank And Oil Tank

The water tank and fuel tank are pretreated by electric heating and stirring. On the one hand, it is to microprocess the materialwhich is difficult to dissolve. The other is to reduce damage to the main pot.

Vacuum pump

Vacuum pump is generally water ring vacuum pump,it is equipped with stainless steel circulating water tank and control solenoid
valve.
The maximum vacuum limit:0.1Mpa (generally 0.085Mpa)

Function:
1.Through vacuum, remove air and defoaming.
2.Transfer the raw material through vacuum suction

Operating Platform

motor

Material:SUS.304

Thickness:2mm

Function：
1.It is water-proof and oil-proof,to prevent people from slipping.
2.It is very easy to clean and maintain it.
3.It provides a place for people to operate it.
