heating mixing machine

Constant Temperature Heating Homogenizing Paste Ointment Paste Mixing Filling Complete Production Line

SPX -HWGZ
Quantity:
Contact Now
add to cart
Product Description

Performance

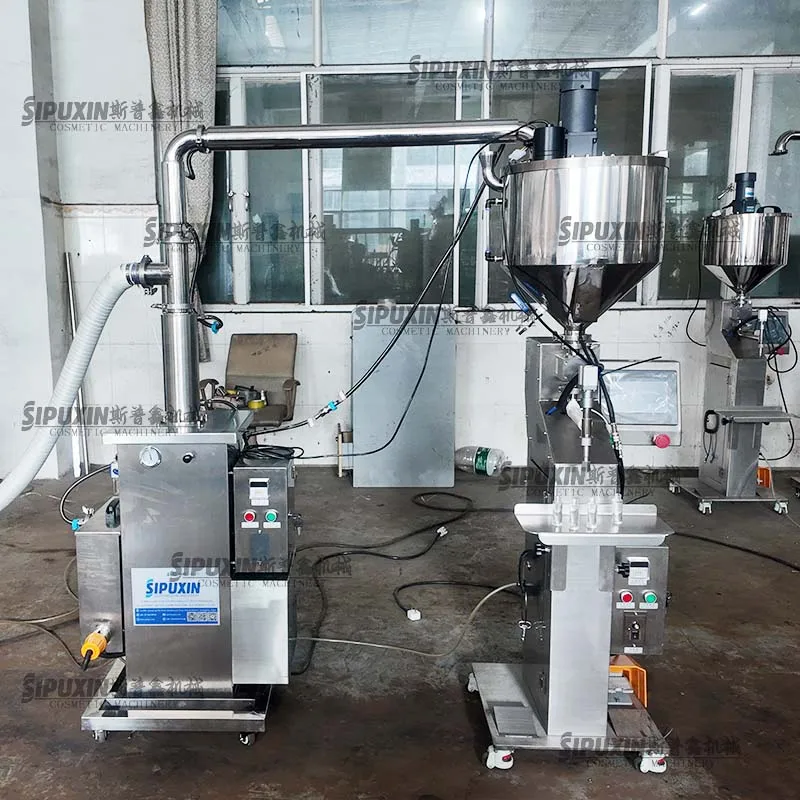

This compact integrated production line consists of three core movable units: heating homogenizer mixer, vacuum  transfer feeding pump, and constant temperature heating paste filling machine. The whole line adopts full temperature insulation design to solve the solidification problem of high-viscosity materials such as depilatory wax, petroleum jelly, hair mask and medical ointment during production.
From raw material emulsification, sealed automatic conveying to finished product constant temperature quantitative filling, realize continuous closed production without manual material transfer.
All units are equipped with universal casters, occupy small space, perfectly match laboratory trial production, startup cosmetic factory and small batch manufacturing.
Application
1.This integrated line is suitable for all thick, easy-to-solidify paste cosmetics and medical supplies:
  1. Skincare: Face cream, body butter, moisturizing ointment, petroleum jelly
  2. Hair care: Repair hair mask, keratin treatment cream, hair spa paste
  3. Beauty wax: Depilatory wax, hair removal wax, eyebrow shaping wax
  4. Medical: Skin ointment, repair ointment, external medicinal cream
  5. Daily chemical: High viscosity hand cream, exfoliating scrub paste
2.It is easy for maintenance,operation,adjustment.It doesn't need any tools.It is with precise filling system,it will not start filling if there is no bottles and it is also with count function.
Machine weight
About 2000kg
Material
SUS304/316L
Function
Semi  automatic filling machine
Working capacity
2500-3000 bottles/hour(based on 500ml)
Driven Type
Electric and pneumatic
Bottle size
50mm≤φ≤115mm 160mm≤H≤320mm
Details Images

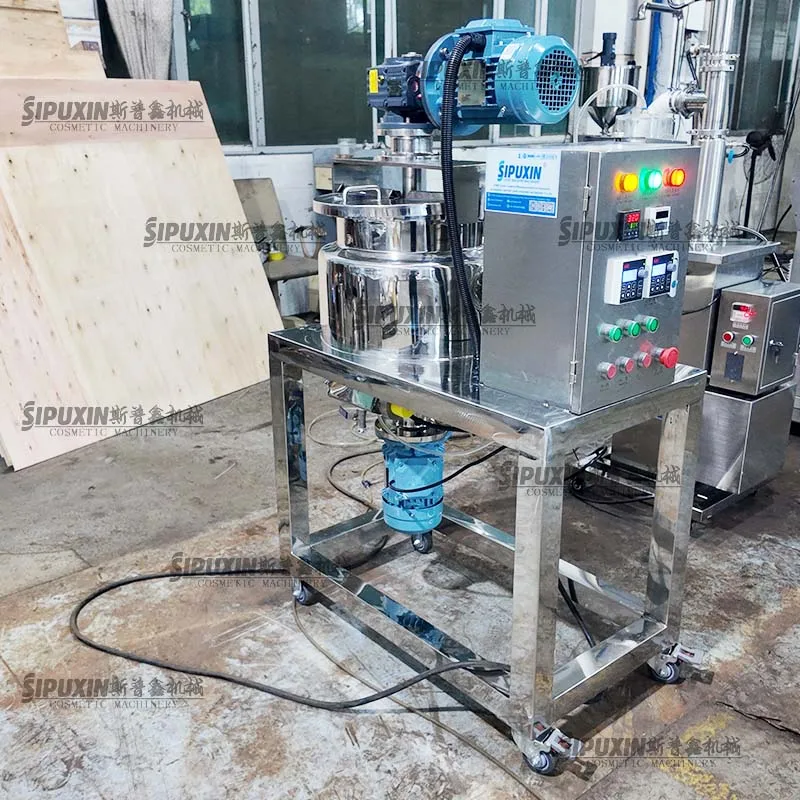

25L Homogenizer mixing Machine
Jacket Layer Electric Heating

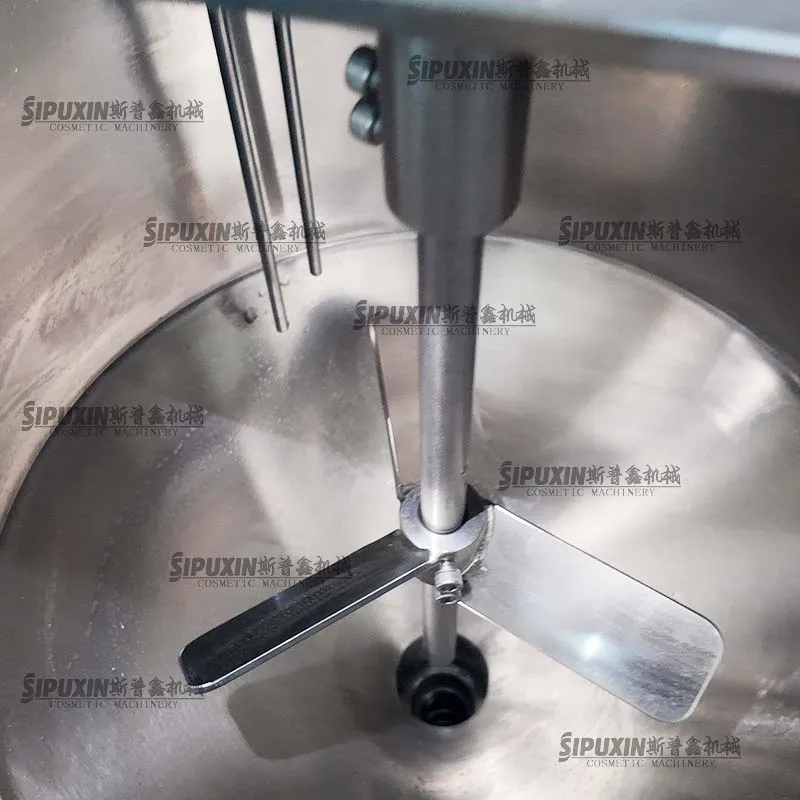

Top Blending
Bottom Homogenizer
4 Quality Wheels

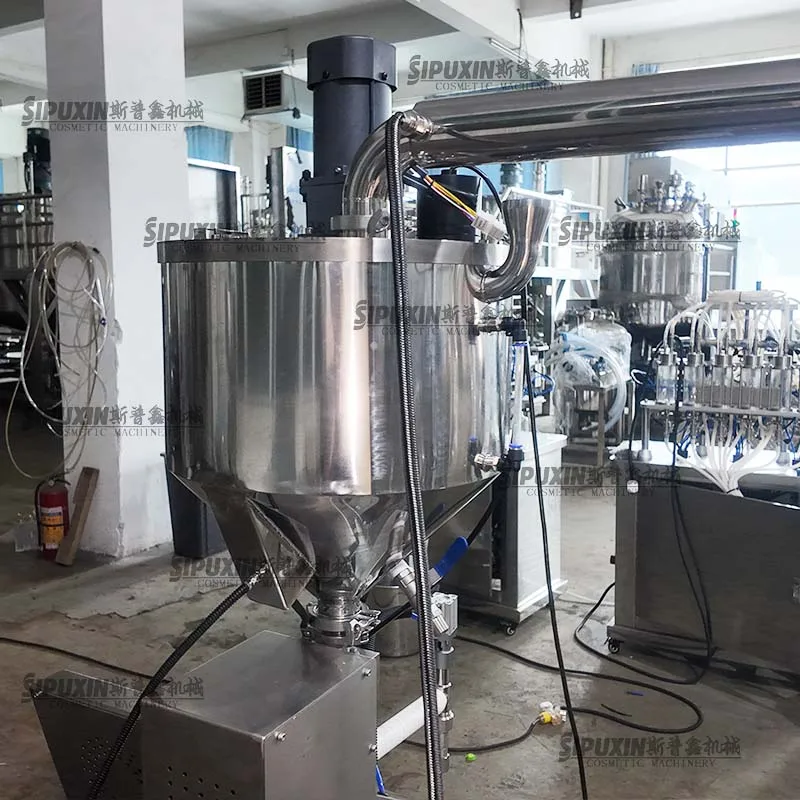

Material feeder with heating

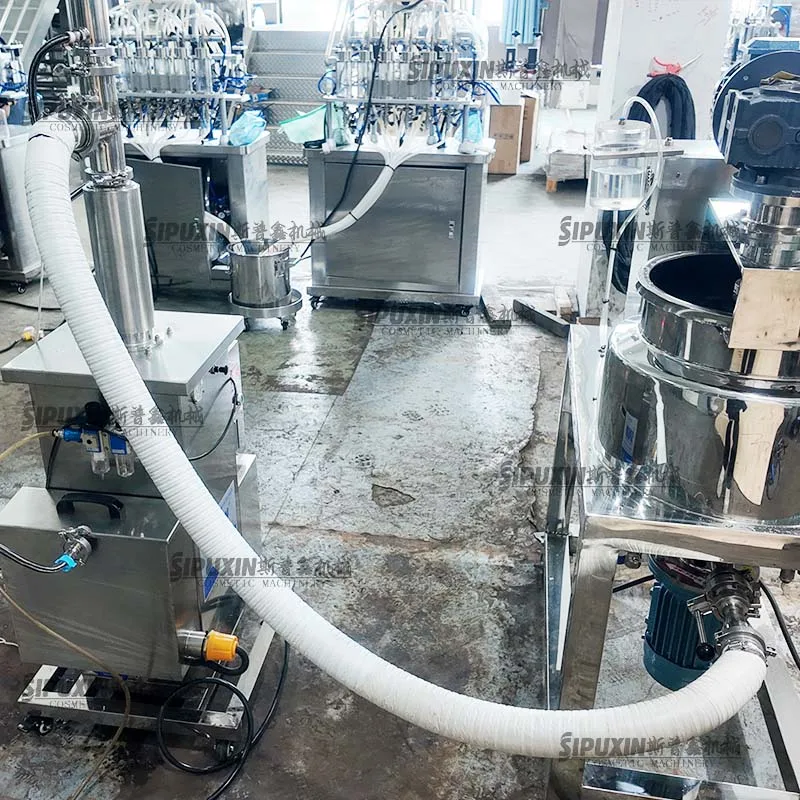

Transfer product from the nixing tank to the filling machine , with hot water circulation tank and constant temperature
motor
Monitor the working conditions of the medium filled in the pressurized vessel during operation, control the pressurized capacity,and protect the safety of production equipment; by mastering the pressure parameters
The control panels equipped with a barometer, which can monitor the air pressure at any time, and the discharge and suction speedcan be adjusted.

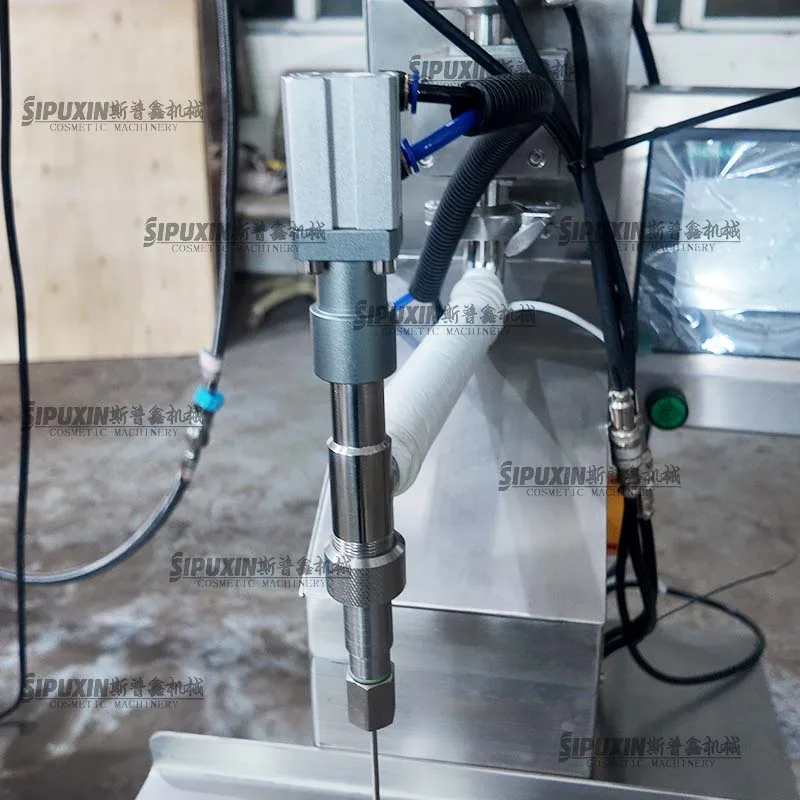

It adopts pure pneumatic filling method, no electricity is needed,and it is especially suitable for use in a humid environment with explosion-proof requirements, and has a high degree of safety.

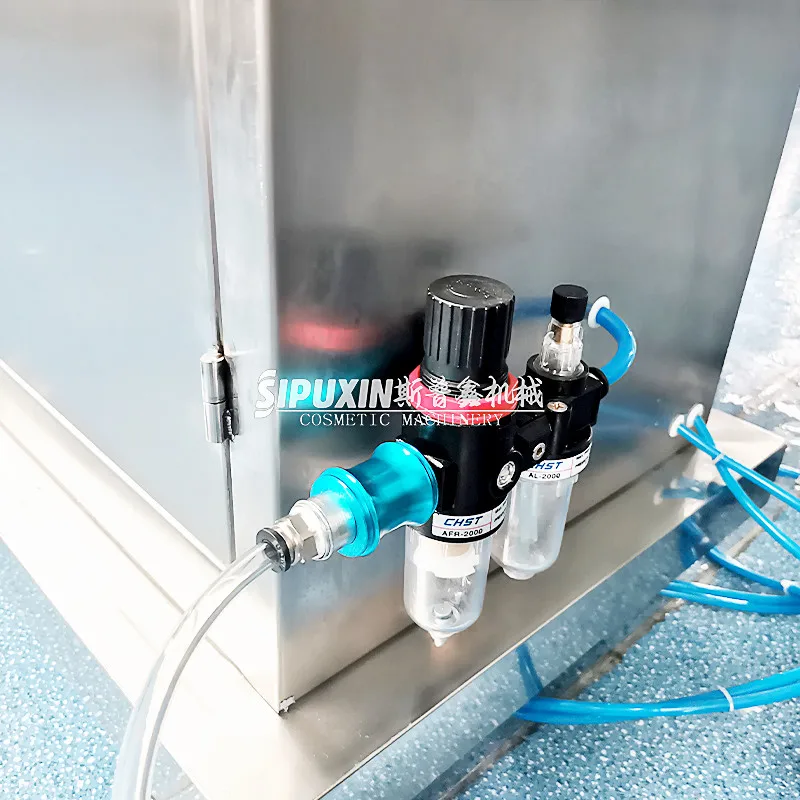

this used to filter the water carried in the compressed gas, isolate the water vapor from the air by filtering the oil, and thenstore the water vapor in the water storage reservoir.
