Automatic Double Head Gear Pump Filling Machine for Cosmetic Cream Lotion Shampoo

spx-f-2666

automatic double-head gear pump filler adopts SUS316L gear pump, equipped with PLC touch control panel, feeding hopper, filling nozzles and conveyor belt. It realizes automatic bottle feeding, positioning and quantitative filling via photoelectric sensor, widely used for thick liquid, cream, paste like cosmetic, pharmaceutical, food, daily chemical products.

Quantity:

Contact Now

add to cart

Introduction

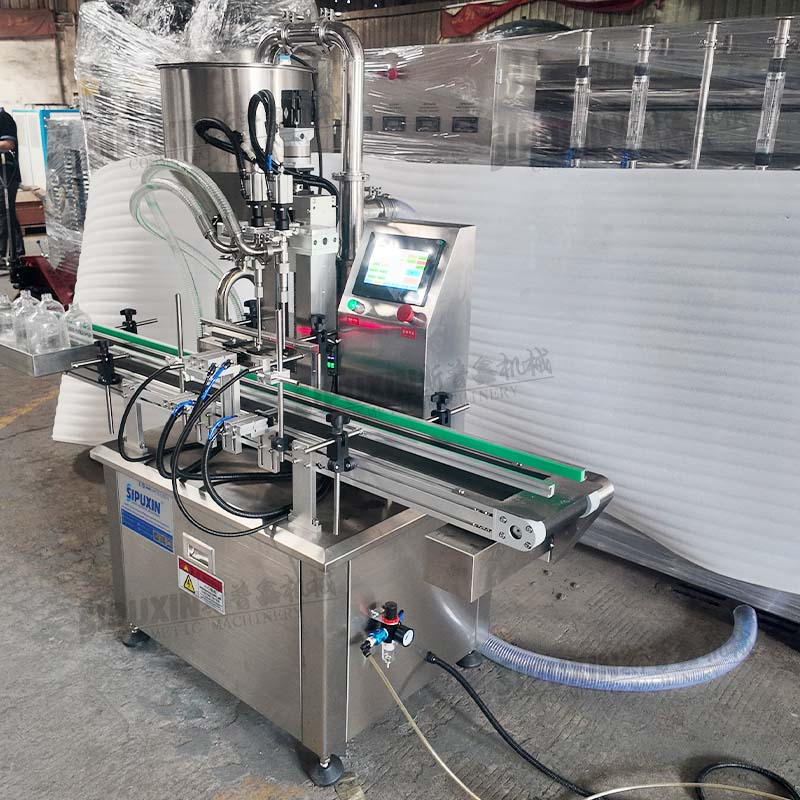

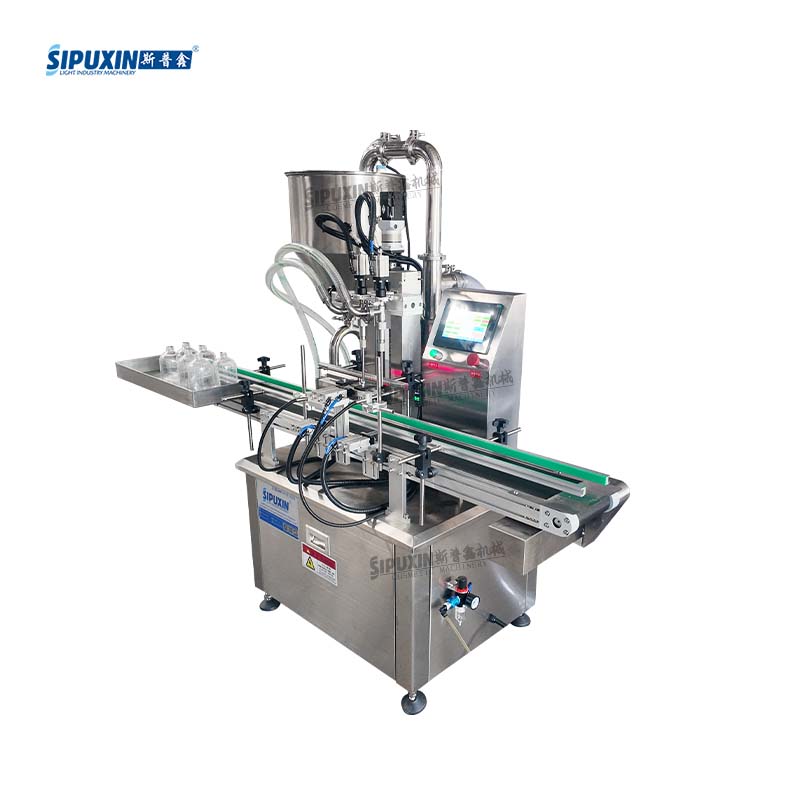

Automatic Double-head Gear Pump Filling Machine
Brand: SIPUXIN

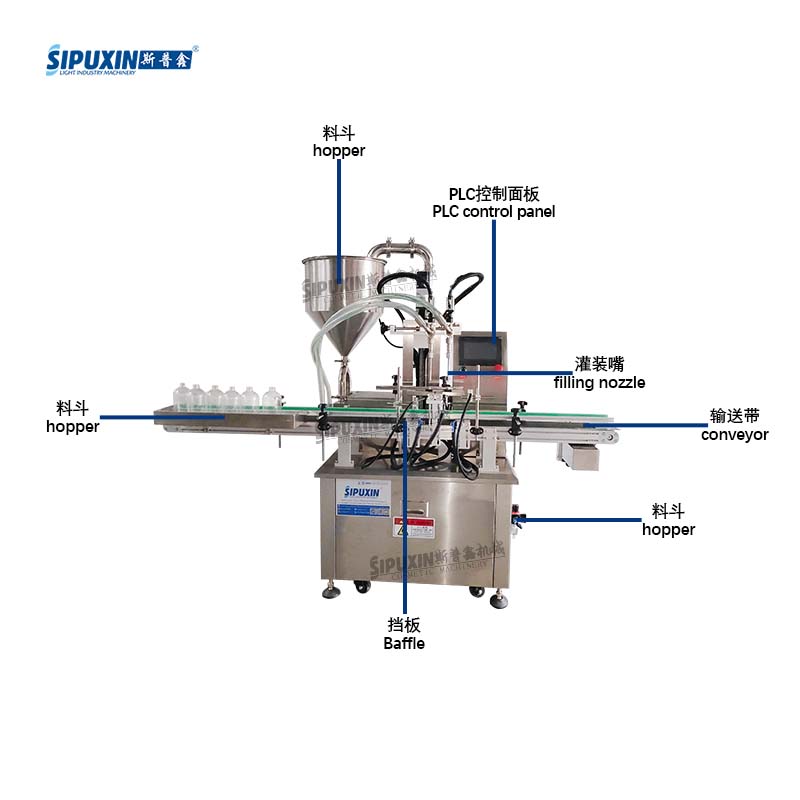

Structure:

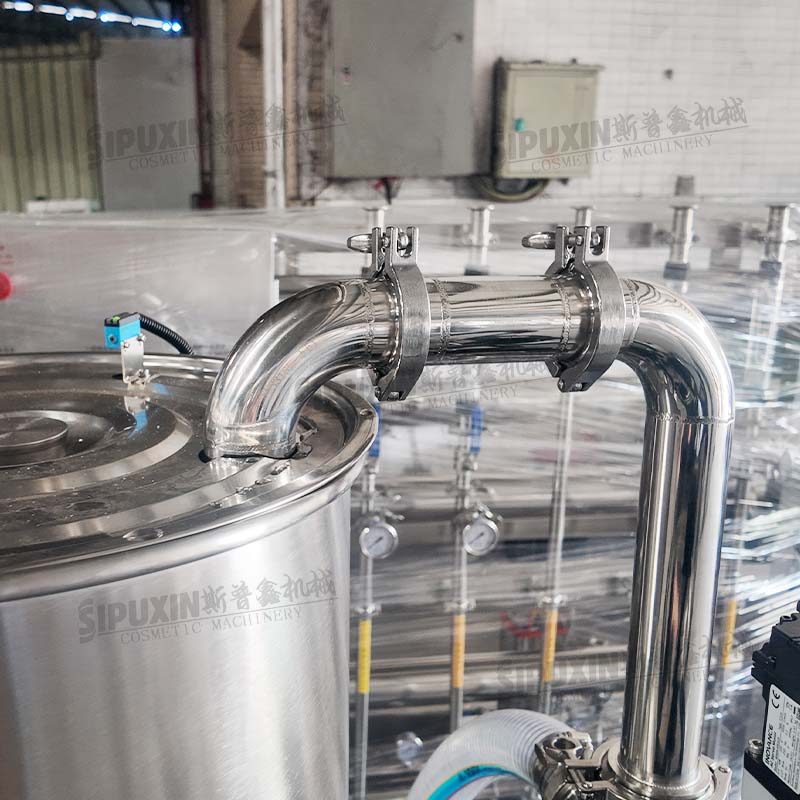

1. Hopper

Made of SUS304 stainless steel, store raw paste/liquid, connect directly with gear pump for continuous feeding.

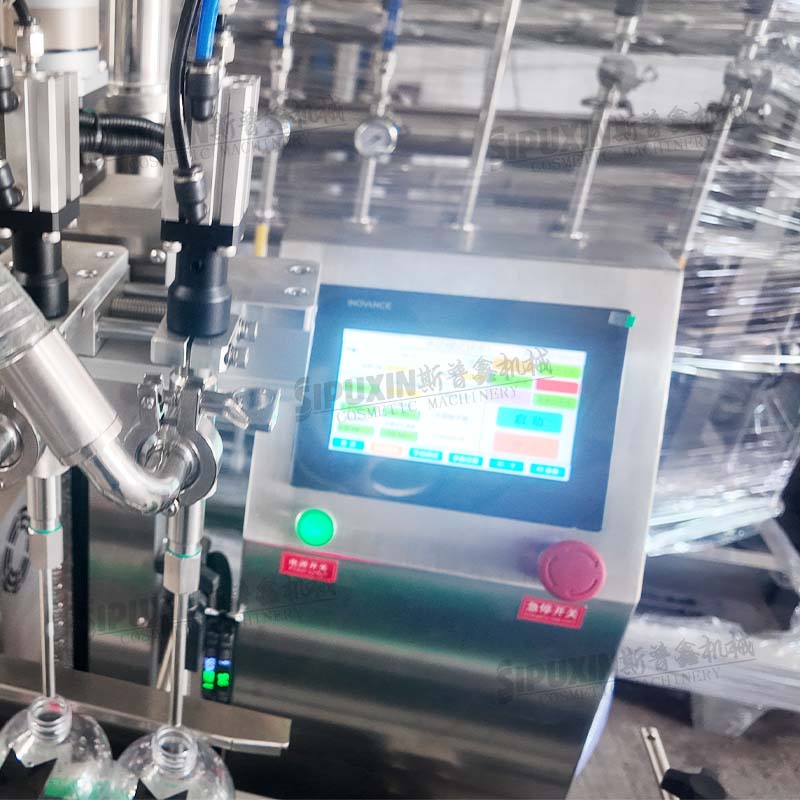

2. PLC Control Panel

Touch screen + PLC system, set filling volume, speed and working mode digitally, easy parameter adjustment.

3. Filling Nozzle

Anti-drip filling nozzle, optional lifting design to avoid foaming and liquid dripping.

4. Conveyor Belt

Variable frequency conveyor, cooperate with photoelectric sensor to finish automatic bottle in-place & filling.

5. Baffle

Adjustable bottle baffle, fix bottle position to guarantee stable filling accuracy.

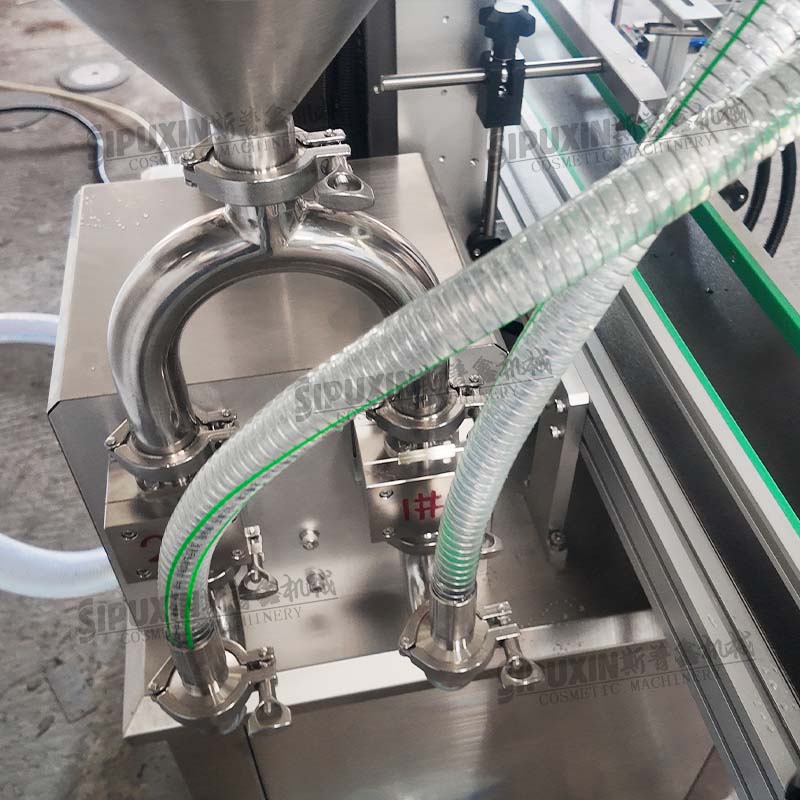

6. Double Gear Pump Unit

SUS316L food grade gear pump, core filling component for precise quantitative feeding.

7. Main Machine Frame

Whole SUS304 stainless steel frame, corrosion resistant, comply with GMP production standard.
Function: Integrated automatic bottle sorting, filling, stopper/cap feeding, ideal for small-volume liquid filling in pharmaceutical and cosmetic industries

Machine Item		Automatic Double Head Gear Pump Filling Machine
Dimension		can be customized
Weight		300kg
MOQ		1 set
Function		Filling
Material		SU 304, SUS316
Filling Range		5-80 ml
Filling Speed		60 bottles /min

Company Profile

Guangzhou Sipuxin Light industry machinery Co., Ltd. s an intelligent manufacturing integrator engaged in cosmetic machinery, food machinery. Main products include Vacuum homogenizing emulsifier, Mixing tank,RO water treatment,Storage tank, CIP cleaning system,Filling/Capping/Labeling machine, Ink jet/laser printing machine and other packing machine, We have passed CE, BV TUV SGS quality certificate and coincident with GMP standard.
our modern factory in Yangzhou occupies 10000+ square meters. Guangzhou factory occupies 6000+ square meters we have advanced manufacturing and testing equipment, Take quality as the root, accumulate bit by bit improvements, rigorous process control,and implement standardized operations. Through CAD and 3D dynamic simulation, we are capable of optimizing the effect of the whole production process, easily making clients clear about working flow of the whole project, and bringing clients professional and real product effect Our professional sales team is able to help you select the most suitable model equipment 500 designs in 1000+
square meters modern showrooms for you to choose And we are able to customize new equipment according to your special request.
We support customers One-stop Turkey service from cosmetic factory GMP purification room decoration. formula. raw material. packaging material, equipment model selection. machine layout design. abroad installation. work flow guidance. Operating training for Cream line /Liquid line / Perfume line Toothpaste line Vaseline line /Lipstick line/ Corrosive chemical line. We will keep on repaving customers’ care via exquisite craftsmanship and continua improvement in product design. manufacturing. quality and service. Choosing Sipuxin machinery, wise choice makes success
