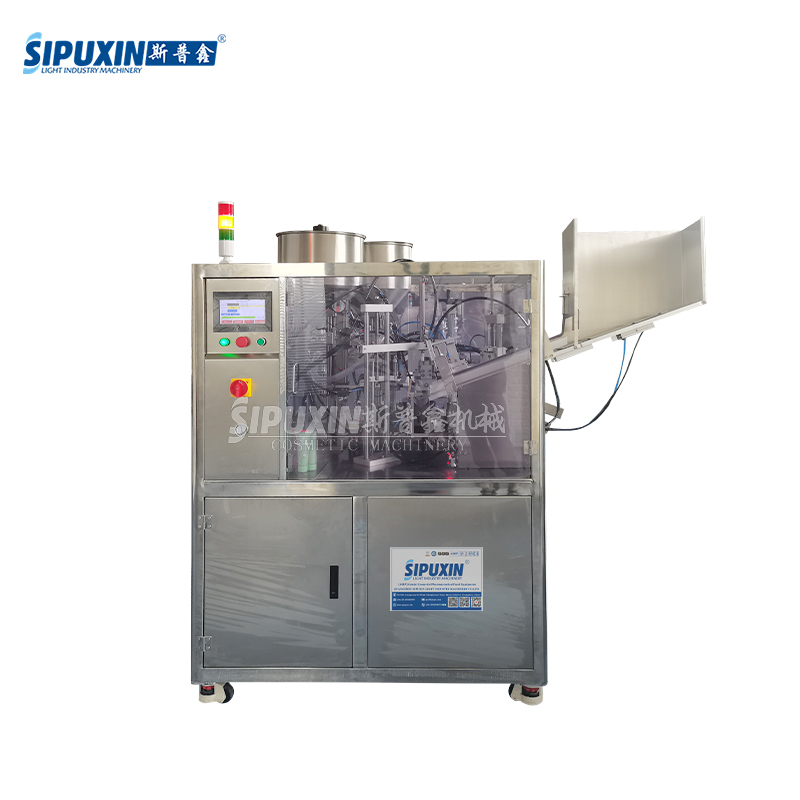

Ultrasonic Master-Slave Tube Filling & Sealing Machine | Tube-in-Tube Dual Paste Packaging Solution

The ultrasonic master-slave tube filling and sealing machine is a specialized packaging equipment designed exclusively for tube-in-tube (double-layer master-slave plastic tubes). As the cosmetic and pharmaceutical industries continue launching innovative dual-component skincare cleansers, compound ointments and two-phase gel products, ordinary single-tube filling machines can no longer meet production demands. This machine comes with two independent filling channels, which can inject different raw materials into the inner tube and outer tube respectively, realizing one-stop automatic filling and ultrasonic sealing.

Different from traditional hot-air sealing machines, this model adopts localized ultrasonic welding technology. It will not produce overall high-temperature heating, effectively preventing tube deformation and protecting heat-sensitive active ingredients inside cosmetics and medicines. The complete workflow covers automatic tube feeding, color mark positioning, quantitative dual filling, ultrasonic sealing and tail trimming, greatly reducing manual intervention and improving production consistency.

Core Advantages

Dual independent filling channels, completely avoiding cross-contamination between two different materials.
Ultrasonic local sealing, low thermal impact, compatible with heat-sensitive formulas.
PLC touchscreen control with English interface, simple parameter adjustment.
Pneumatic driving structure, stable operation, equipped with “no tube, no filling” safety protection.
Material contact parts adopt SUS304 stainless steel, SUS316L optional, complying with cosmetic hygiene standards.
Flexible customization: filling volume, tube mold and production speed can be adjusted according to customer tube samples.

Main Technical Parameters

Item	Specification
Automation Mode	Fully Automatic
Driving Method	Pneumatic
Production Speed	30~50 tubes/min
Filling Accuracy	±0.5%
Filling Volume Range	Customized 10~1000ml
Working Air Pressure	0.6~0.8Mpa
Working Voltage	220V/50Hz
Applicable Tube	Plastic master-slave tube / tube-in-tube double-layer tube
Suitable Materials	Cream, Lotion, Gel, Ointment, Dual paste cosmetic raw materials

Standard Working Flow

Automatic Tube Feeding → Tube Positioning & Color Mark Alignment → Independent Inner & Outer Tube Quantitative Filling → Ultrasonic Sealing → Tail Trimming → Finished Product Discharge

Application Scenarios

This packaging machine is widely applied in cosmetics, daily chemical and pharmaceutical industries. Typical products include two-component facial cleanser, dual-effect skincare cream, compound medical ointment, double-layer gel tubes and other co-extruded dual-material tube commodities.

After-sales Service

The machine enjoys 1-year warranty and lifelong technical support. Overseas engineer on-site installation and training service is available. Our R&D team can customize machine layout, filling structure and tube molds based on your actual tube samples and production line layout.

If you are developing tube-in-tube dual paste products and looking for stable, high-precision automatic tube packaging equipment, SIPUXIN ultrasonic master-slave tube filling sealing machine is your reliable factory direct supply choice.
