Full Automatic Stainless Steel Mixing Tank Production Line With Dust-Free Feeding Station

2. Core Components & Function Introduction

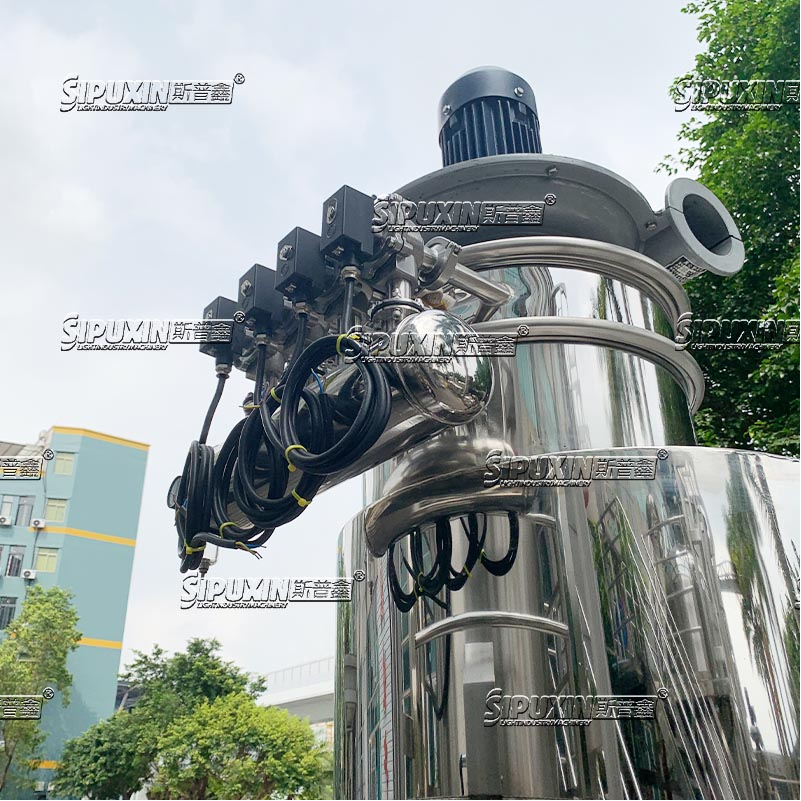

2.1 Stirring Tank (Mixing Kettle)

• Double-layer heat insulation structure, stable temperature control for heating, cooling, constant temperature stirring;
• Built-in high-speed homogenizer + slow anchor stirring, solve high-viscosity material mixing, emulsification, dispersion problems;
• Fully sealed tank body, can be matched with vacuum system to realize vacuum defoaming, no bubbles in finished products.

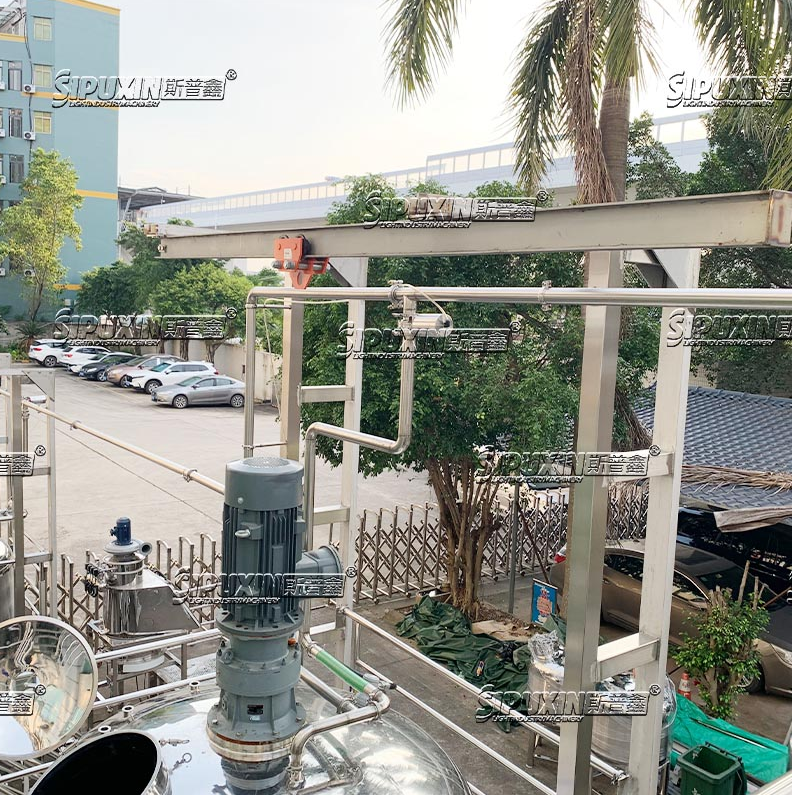

2.2 Stirring Motor

• Variable speed regulation, adapt to low-viscosity water-based materials and thick paste, cream materials;
• Explosion-proof motor optional for flammable solvent workshop production;
• Stable torque, low noise, long service life under continuous operation

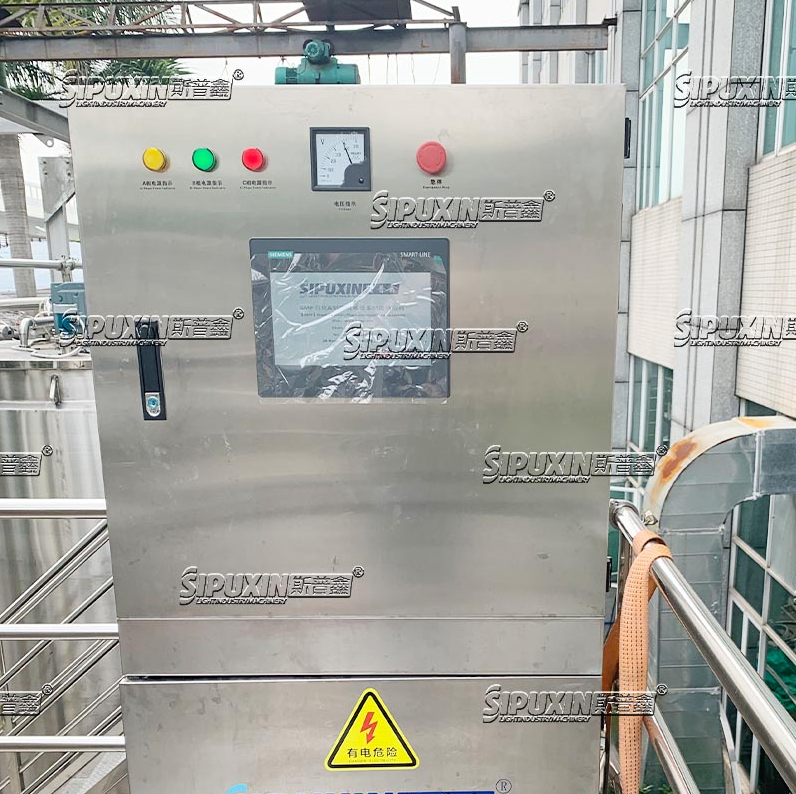

2.3 PLC Operation Panel

• Touch screen visual operation, set stirring speed, temperature, feeding time, pumping flow on screen;
• Automatic record of production data, support parameter storage, formula memory for batch production;
• Over-temperature, overload, abnormal pressure automatic alarm, safe interlock protection to avoid operation failure.

2.4 Dust-Free Feeding Station

• Built-in dust removal filter, no powder flying during feeding, keep workshop clean, reduce raw material waste;
• Closed conveying pipeline directly connected to mixing tank, avoid secondary pollution of raw materials by manual operation;
• Simple operation, workers directly pour raw material bags into the feeding hopper, reduce labor intensity.

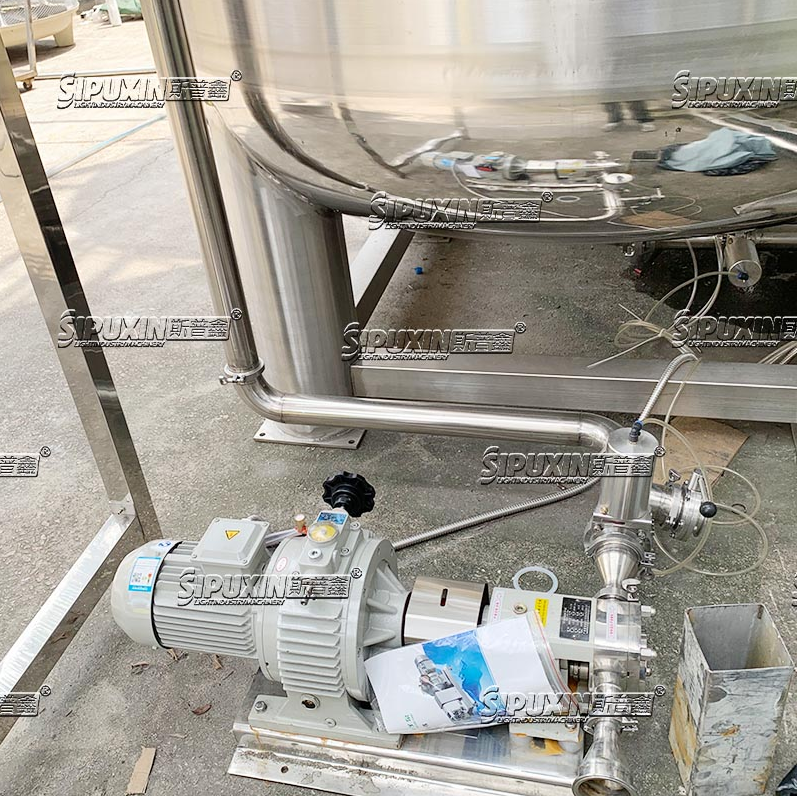

2.5 Rotor Pump

• Adapt to thin liquid, lotion, cream, paste and other different viscosity materials;
• Stable conveying, no material stratification, no damage to emulsified finished products;
• Forward and reverse rotation function, can realize tank internal circulation homogenization and finished product pumping to storage tank/filling machine.

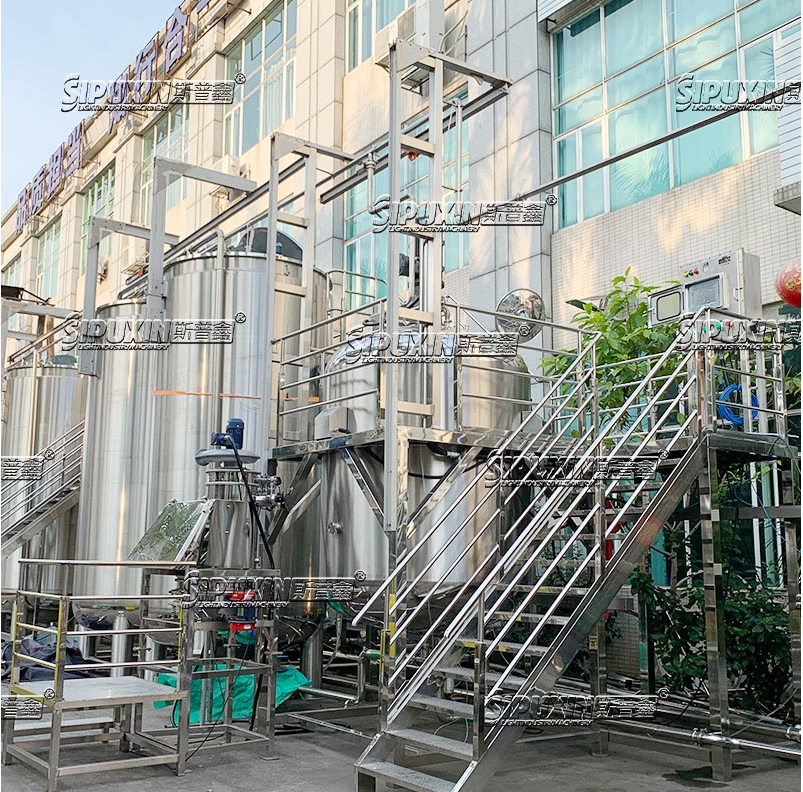

2.6 Stairs & Operation Platform

• All-round anti-slip pedal, full surrounding safety guardrail, meet factory safety production standards;
• Integrated with the whole equipment structure, stable bearing, no shaking during long-term operation.

3. Key Advantages of Our Production Line

1. Dust-Free Closed Production Matched with professional dust-free feeding station, fundamentally eliminate powder flying, improve workshop environment, reduce raw material loss, meet high-standard clean production requirements of cosmetics and pharmaceutical industries.
2. Full Automatic Intelligent Control PLC integrated control replaces manual operation, one-key start production formula, reduce manual error, realize standardized batch production, easy to train operators.
3. Wide Material Compatibility The mixing tank matches stirring homogenization system + rotor pump conveying, can process shampoo, body lotion, facial cream, ointment, syrup, food sauce, detergent, chemical reagent and other products.
4. GMP Clean Grade Structure All contact material parts are 304/316 stainless steel, mirror polished inner wall, no dead angle, easy to clean and disinfect, fully compliant with food and cosmetic production hygiene standards.
5. Complete Turnkey Solution One-stop supporting feeding, mixing, conveying, control and operating platform, no need to purchase separate equipment for assembly, factory pre-installed and debugged, simple on-site installation after delivery.
6. Safe & Durable Design Explosion-proof configuration, overheat and overload protection optional; thickened stainless steel structure, wear-resistant rotor pump parts, long service life, low maintenance cost.
