100L Movable Vacuum Homogenizing Emulsifier PLC Touch Screen Cosmetic Cream Lotion Ointment Mixing Machine With Hydraulic Lifting

spx-vhe-zxw630

100L movable vacuum homogenizer is specially designed for medium-batch production of facial cream, body lotion, mask paste, ointment and chemical slurry.

Quantity:

Contact Now

add to cart

Description

100L Movable Vacuum Homogenizing Emulsifier PLC Touch Screen Cosmetic Cream Lotion Ointment Mixing Machine With Hydraulic Lifting

Machine composition:

1. 100L main emulsifying pot

2. Hydraulic lifting & flipping system

3. High-speed homogenizing head

4. Frame stirring + scraper stirring

5. Vacuum pump system

6. Electric heating / water cooling jacket

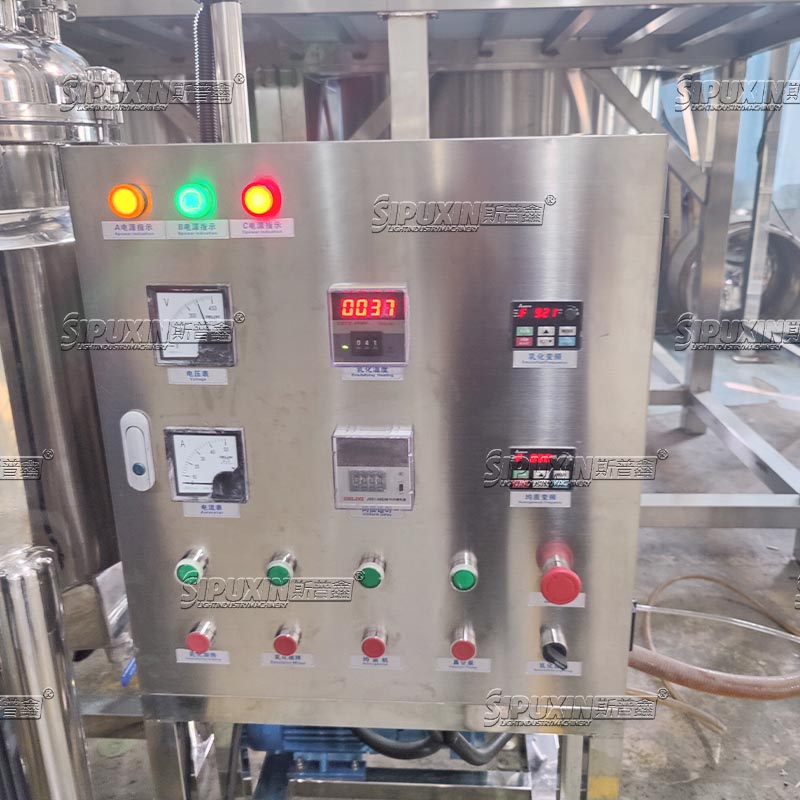

7. PLC touch control cabinet 8. Movable brake casters

Usage and Application:

Usage

Lift the top cover up, add oil phase and water phase raw materials separately;
Set temperature, stirring speed, homogenizer speed and vacuum time on touch screen;
Mix, homogenize and deaerate under vacuum;
Lift the lid and tilt the tank to discharge finished paste.

Application

Face cream, eye cream, body lotion, foundation, hair mask, pharmaceutical ointment, fine chemical pigment slurry.

Core Advantages

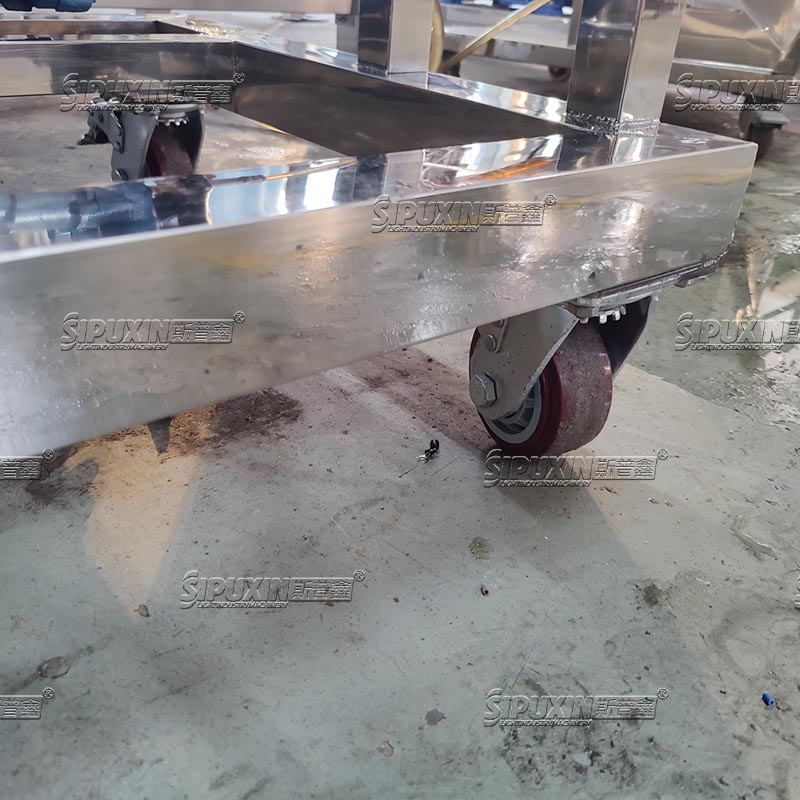

1. Movable brake casters, easy to shift between workshops;

2. Hydraulic lifting design, convenient feeding and thorough cleaning;

3. Vacuum deaeration, bubble-free smooth finished products;

4. Independent temperature control, adapt thick paste & thin lotion formulas;

5. Full stainless steel contact parts, corrosion-resistant, easy sanitize;

6. PLC one-key operation, stable running, low noise, long service life.

Item	Specification
Model	SPX-100L Movable Vacuum Emulsifier
Effective Volume	100L
Control System	Famous brand PLC touch screen
Mixing Mode	Frame stirring + scraper stirring + high-speed homogenization
Vacuum Degree	-0.09~-0.098MPa
Heating Mode	Electric heating / water cooling jacket optional
Automation Degree	Fully-automatic
Drive Mode	Electric motor
Body Material	SS304 / Optional SS316L
Power	7.2KW
Net Weight	680KG
Gross Weight	760KG
Production Capacity	80~120L/batch, 2~3 batches/hour
