SPX agitator mixer agitator tank

SPX-131

Delivery

FOB

minimum order

1 set

Supply Ability

100set / Month

Country of Origin

GuangZhou

Stock Time

20-30 days after receive depositeDay

Quantity:

USD2000.00 - USD20000.00 / set

Contact Now

add to cart

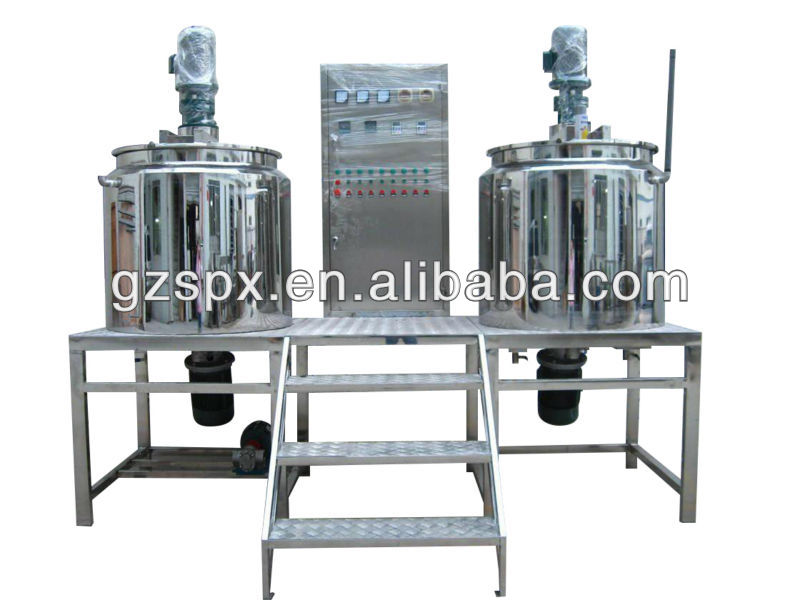

agitator mixer agitator tank

machine introduction:

High speed disperser can poeerfully mix and disperse viscous solid and liquid materials, and rapidly dissolve many indissoluble liquid washing products, and thus, saving energy consumptionand shortening production period.

The main blending adopts stepless speed variation device, which can reduce the formation of bubbles when the temperature is low and the viscosity is high.

The gear pump circulating discharging device can accelerate the forming of products and realize rapid discharging.

During the production of liquid washing products, the self-suction type AES dissolver can alleviate worker's labor intensity of feeding and shorten dissolving time.

1:The blending system adopts single-direction or double-direction wall scraping blending and frequency conversion speed adjustment to satisfy production of different technological requirements.

2:materials can be heated or cooled according to technological requirements.

3:the machine is made of imported SUS304 or SUS316L stainless steel. the tank body and pipe are subjected to mirror polishing

machine paremeter:

Serial No.		Volume(L)	Blending power (KW)	Blending rotation speed (r/min.)	Homogenizing power(KW)	Homogenizing rotation speed (r/min.)	Heating method
1	SPX-E-300	300	1.5	0~65	3	3000	Steam heating or electric heating( option)
2	SPX-E-500	500	2.2	0~65	4	3000
3	SPX-E-1000	1000	2.2-4	0~65	7.5	3000
4	SPX-E-1500	1500	4-5.5	0~65	11	3000
5	SPX-E-2000	2000	5.5	0~53	11	3000
6	SPX-E-3000	3000	7.5	0~53	15	1500
7	SPX-E-5000	5000	11	0~53	22	1500
