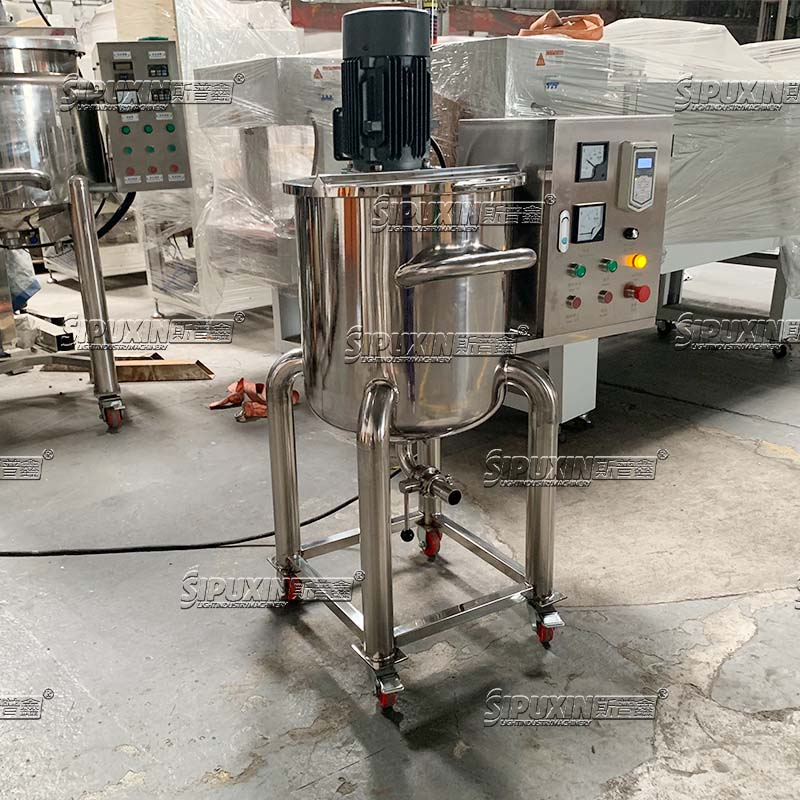

SPX 60L Single-Layer Dispersed Movable Mixing Tank

author: Lucky He

2026-07-22

No.	Component Name	Function Description
1	Distributed Motor	Provides stable high-speed power for stirring, dispersion and emulsification. It drives the distributed disk to rotate at high speed, and supports adjustable speed operation to adapt to materials of different viscosities, ensuring efficient and uniform mixing.
2	Distributed Disk	Adopts high-shear structural design. With the high-speed rotation of the motor, it performs strong shearing, dispersion and emulsification on materials, which can effectively reduce particle size, improve the uniformity and stability of mixed materials.
3	Control Panel	Integrates start/stop control, speed regulation, operation status display and other functions. The parameters are intuitive and adjustable, which is convenient for operators to control the production process in real time, and supports customized operation according to different process requirements.
4	Handrail	As a supporting grip component when moving and positioning the equipment, it improves the safety and convenience of handling and adjusting the position of the mixing tank, and is ergonomically designed for easy operation.
5	Discharge Port	Designed at the bottom of the tank with a matching control valve. It realizes fast and clean discharging of materials, minimizes material residue, and is convenient for cleaning and maintenance after production.
6	Caster Wheel	Supports 360° rotation and is equipped with a brake locking device. It not only realizes flexible movement of the equipment, but also can be fixed at a designated position stably, adapting to the layout requirements of different production scenarios.
7	Stainless Steel Tank Body	Made of food and cosmetic grade stainless steel, it has excellent corrosion resistance, high temperature resistance and easy cleaning performance. It meets the hygiene production standards of cosmetics, food, daily chemical and other industries, and can be used for heating, cooling and constant temperature mixing of materials.

Brief Summary

60L movable single-layer dispersion mixing tank with high-shear dispersing agitator, optional electric heating function and lockable casters for flexible workshop movement. Suitable for small-batch mixing of shampoo, liquid soap, sauce, mayonnaise and cosmetic liquid materials.

Working Principle

Raw materials are loaded into the stainless steel tank. The high-speed dispersing disk provides powerful shear force to stir, disperse and homogenize materials evenly. Optional electric heating system maintains constant temperature for thermal processing. The movable design allows convenient position adjustment, and the bottom discharge port realizes quick material output after mixing.

Usage

Pour raw materials into the mixing tank and cover the tank lid.
Set working speed and heating temperature on the control panel as required.
Start the dispersing motor to carry out stirring and dispersion processing.
Keep constant-speed mixing until materials reach uniform status.
Stop the machine, open the bottom discharge valve to release finished materials.

Application

Widely applied in cosmetic, food and daily chemical industries for processing shampoo, body lotion, liquid detergent, sauce, mayonnaise and other liquid & low-viscosity products. Ideal for laboratory testing and small-batch production.
