Semi-Automatic Downward Press Powder Compacting Machine Stainless Steel Cosmetic Powder Press Machine For Eyeshadow Blush Compact Powder

author: Bella zhu

2026-07-10

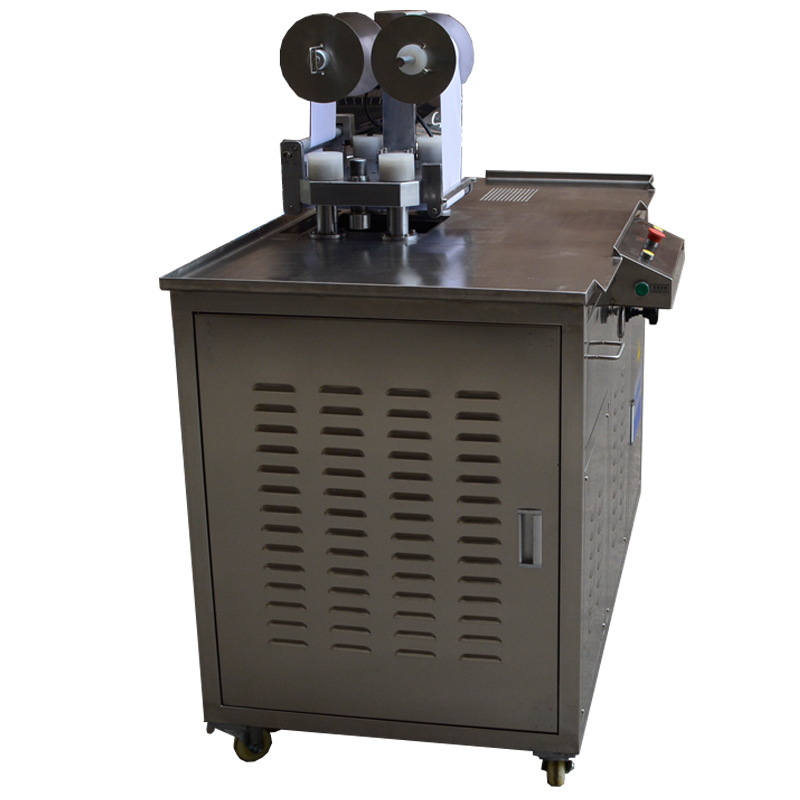

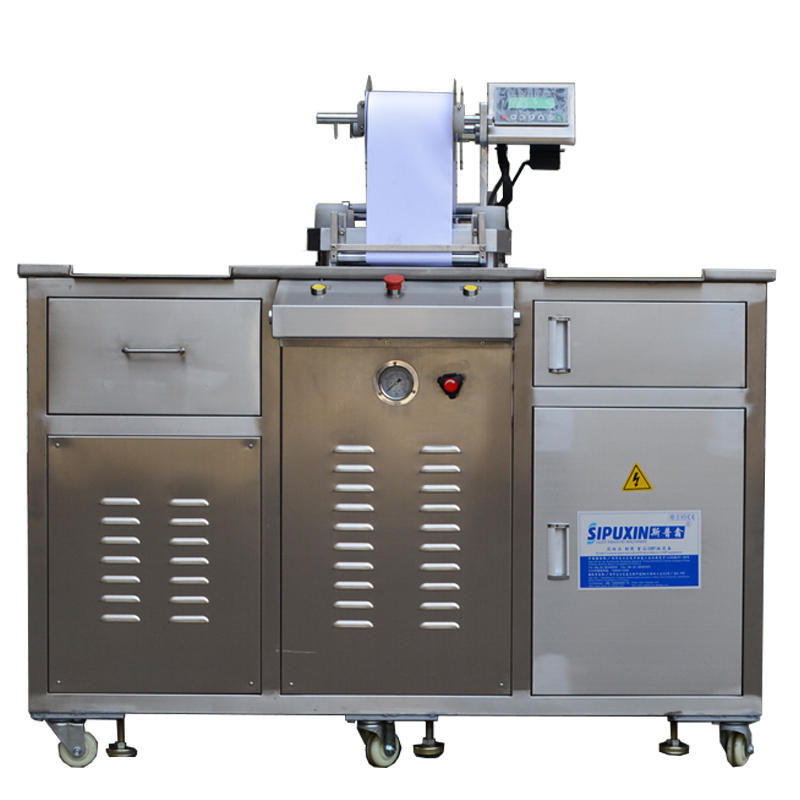

Machine Composition

SUS304 stainless steel cabinet, digital tension control film unwinding device,

downward pressing cylinder, pressure gauge, emergency stop button, lockable mobile casters, independent electrical control system.

Usage & Application

Unwind protective film, place cosmetic powder mold into positioning station, start automatic downward pressing to compact loose powder into solid pressed powder.

Widely used for eyeshadow, blush, contour powder, pressed foundation in cosmetic makeup factories.

Core Advantages

1. Downward vertical pressing design, uniform forming density, no powder loose or cracking.

2. Digital film unwinding control, stable film tension to avoid powder contamination.

3. Full stainless steel body, easy to wipe and clean, meet cosmetic GMP standard.

4. Visible pressure gauge & emergency stop button, safe and intuitive operation.

5. Movable casters for flexible workshop layout, low failure rate for continuous mass production.

Working Principle

First, put the cosmetic loose powder into the metal compact pan and cover a protective film on the powder surface.Then the pneumatic/hydraulic cylinder drives the pressing head to move vertically downward and apply constant pressure on the powder.Under stable vertical extrusion force, the loose powder particles are tightly squeezed together to form a solid, smooth compact powder cake without cracking or loose powder.After pressing, the cylinder automatically lifts up, and the finished pressed powder can be taken out for subsequent packaging.

Item	Specification
Machine Type	Semi-automatic downward vertical powder pressing machine
Applicable Products	Eyeshadow, blush, contour powder, pressed foundation, setting powder, other cosmetic pressed powder
Pressing Pressure	0-6MPa adjustable (pneumatic type) / 0-10MPa adjustable (hydraulic type)
Pressing Station	Single station (customizable multi-station)
Pressing Accuracy	±0.2g
Applicable Compact Size	Φ30mm - Φ80mm (customizable)
Driving Mode	Pneumatic / Hydraulic
Control Mode	Digital PLC control + button operation
Air Pressure Requirement	0.5-0.8MPa (for pneumatic type)
Body Material	Full SUS304 stainless steel
Material Contact Part	SUS316L stainless steel
Power Supply	220V 50Hz single phase / 380V 50Hz three phase (customizable)
Total Power	0.75kW - 2.2kW
Production Capacity	800-1200 pieces per hour (depends on operator proficiency)
Overall Dimension	12006001500mm (LWH)
Net Weight	180kg
Gross Weight (with packaging)	220kg
Mobile Design	Lockable universal casters
Safety Configuration	Emergency stop button, pressure gauge, overload protection
