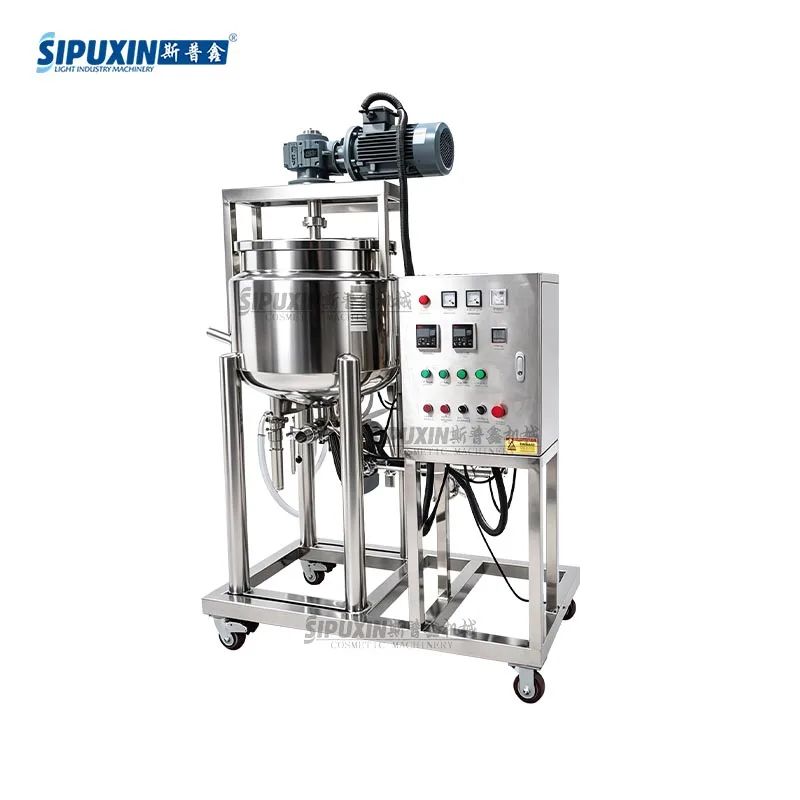

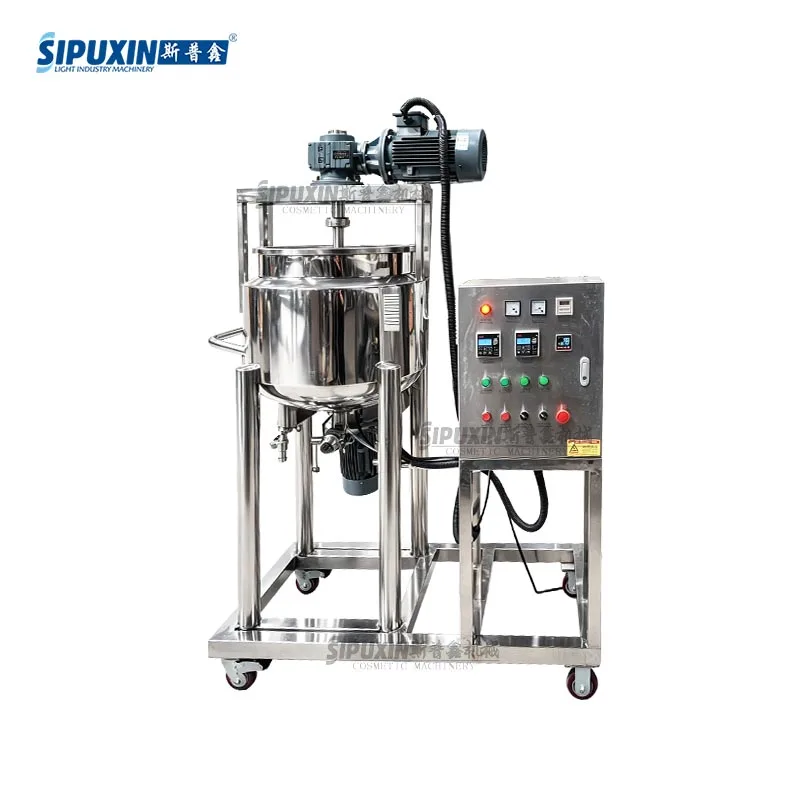

100L Cosmetic Cream Mixing Machine, Mobile Electric Heating Tank With Bottom Homogenizer

SPX-0831
Quantity:
Contact Now
add to cart

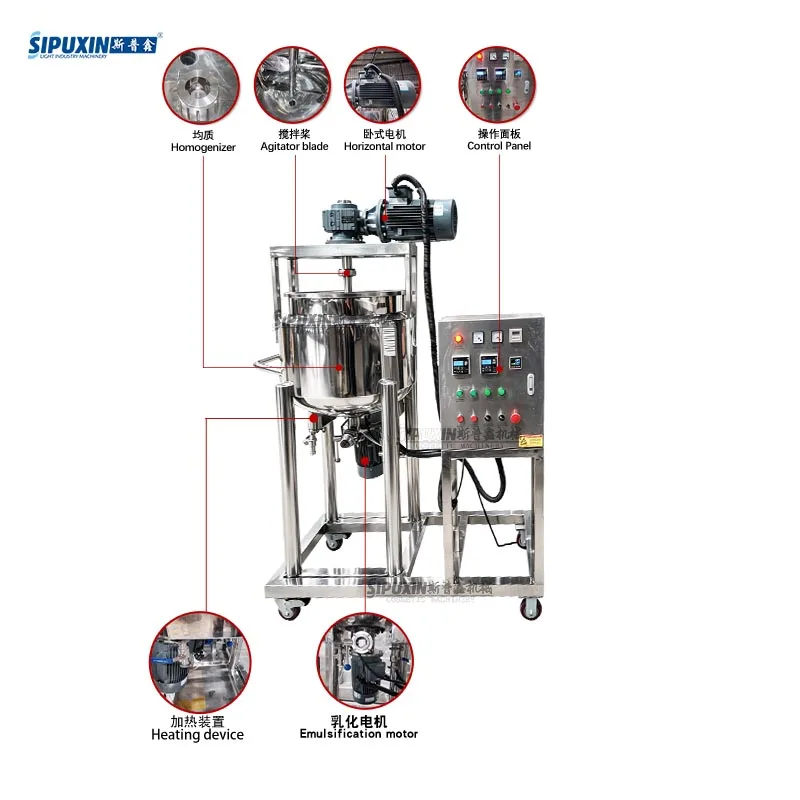

Machine components details
Capacity
100L/customization
Material
Stainless steel sus304/sus316L
Heating way
Power:3KW
Electric heating water in jacket with tap-water cooling system
Mixing way
Power: 1.5KW; Speed: 0-63 r/min
Mixer：Fixed stirrer & frame-wall teflon scrapping agitator with blade
Control way
Button control/PLC+Touch screen
MOQ
1 Set
Origin
Guangzhou/Yangzhou,China
Sale warranty
1 year
After sale service
24 hour online video technical  suppoert
Pictures for reference
Lid accessories

open cover for feeding raw material easily.
With motor from SIEMENS ,Germany brand.

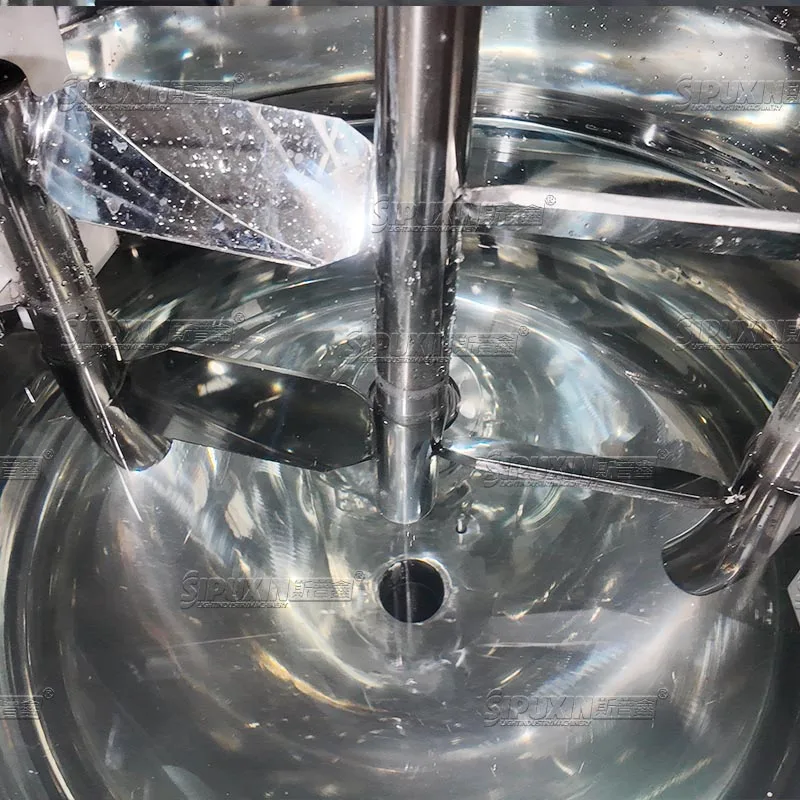

Mixing system
Top blender
Speed:0-63RPM,speed is adjustable, ABB Switzerland brand ,frequency convertor.
Material:SUS.316
Effect:The mixer of the machine achieves rapid dispersion and homogenization through directional shear force and circulating
flow, forming a stable and delicate emulsion, and at the same time, the structure is simple and the energy consumption is low,
which is suitable for producing the chemical product.
Heating device
The heating device is mounted on the bottom of the tank


Function:
Heat the raw material
Movable caster

The tank is equipped with the 4 strong movable casters with locking function.
It is very convenient for people to move the tank everywhere.

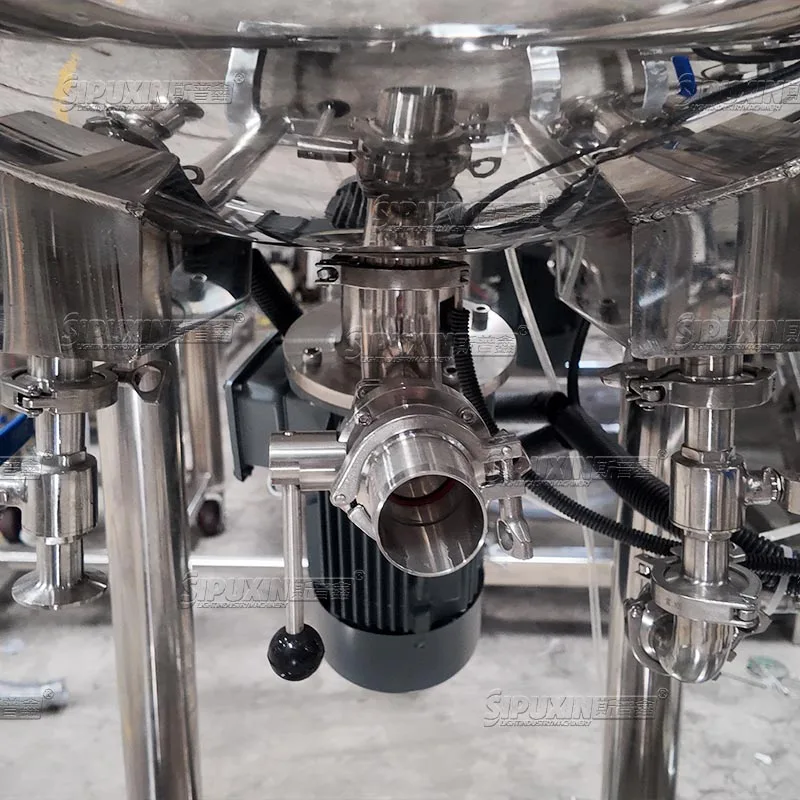

Bottom discharge
The bottom discharge hole with manual valve control.

4 ways of discharging:
1.Gravity discharge:It is suitable for the low viscous product.Let it be discharged by gravity
2.Pressure discharge:Add air,give it pressure to discharge the product.
3.Pump discharge:Use pump(like lobe pump) to discharge the product.
4.Tilting discharge:Use the tilting function to tilt the pot down,to discharge the product.

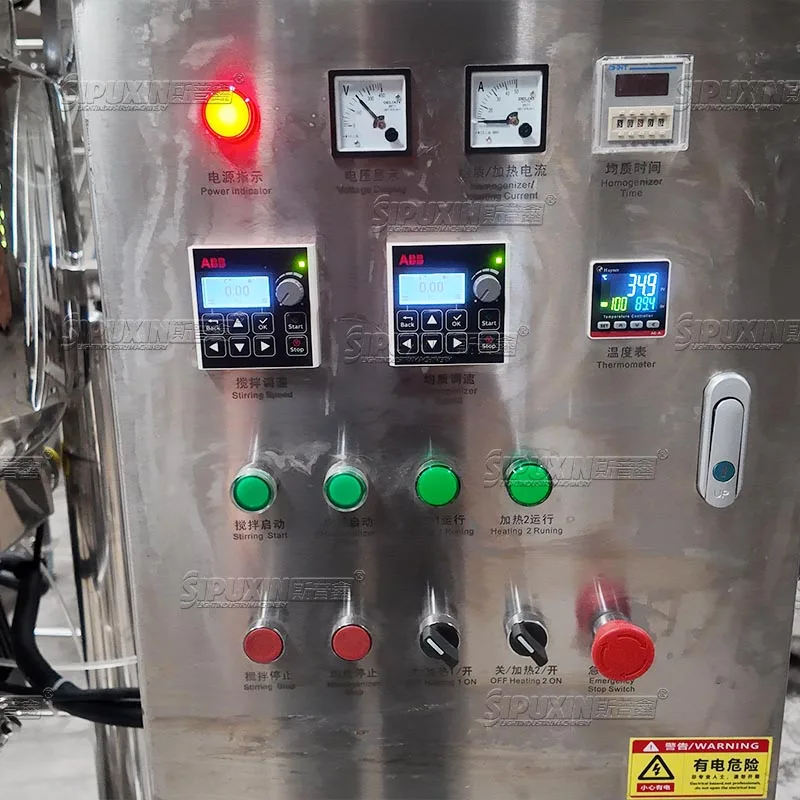

Button control box
Material:SUS.304
Components:Power switch,voltage,current,speed adjustment,temperature controller,self-protection system
etc.

* Be able to display, set and adjust the center mixer speed .
* Be able to display, set and adjust temperature

Company Profile
03:00
03:00
Guangzhou Sipuixin Light Industry Machinery
We,Guangzhou Sipuxin Light Industry Machine Co.Ltd.,locates in No.380 Guangcong 9th Road,Zhongluotan Town ,Baiyun District,Guangzhou,China--the core technology area for machinery design and manufacture.
Based on Jiangsu light industry Research Institute and Germany top homogenizing technology, with solid backing from Yangzhou Sipuxin Light Industry Machinery Equipment Factory, Sipuxin is professional manufacturer for Vacuum homogenizing emulsifier, Mixing tank, RO water treatment, Storage tank, CIP cleaning system,Filling/Capping/Labelingmachine, Ink-jet/laser printing machine and other packing machine.

We have passed CE, BV,TUV, SGS quality certificate, and coincident with GMP standard.
Factory setting
Our showroom
production configuration
Engineering Case
Package
FAQ
1.Are you a factory? Yes, we are a factory with more than 20 years experiences. 2.Where is your factory? Our factory is located in Baiyun District, Guangzhou City, Guangdong Province. 3.What should I do when I receive a machine that I don't know how to use? Operation manual and video demonstration sent along with the machine to give instructions. Besides, we have professional after-sale group to customer 's site to solve any problems.
4.Can your product be customized? Yes, we can customize products according to your needs.
5.What is the warranty period for your product? One year.
