500L Single-Layer Homogenizing Stirring Tank+200L Electric Heating Mobile Storage Tank
spx-0720
Quantity:

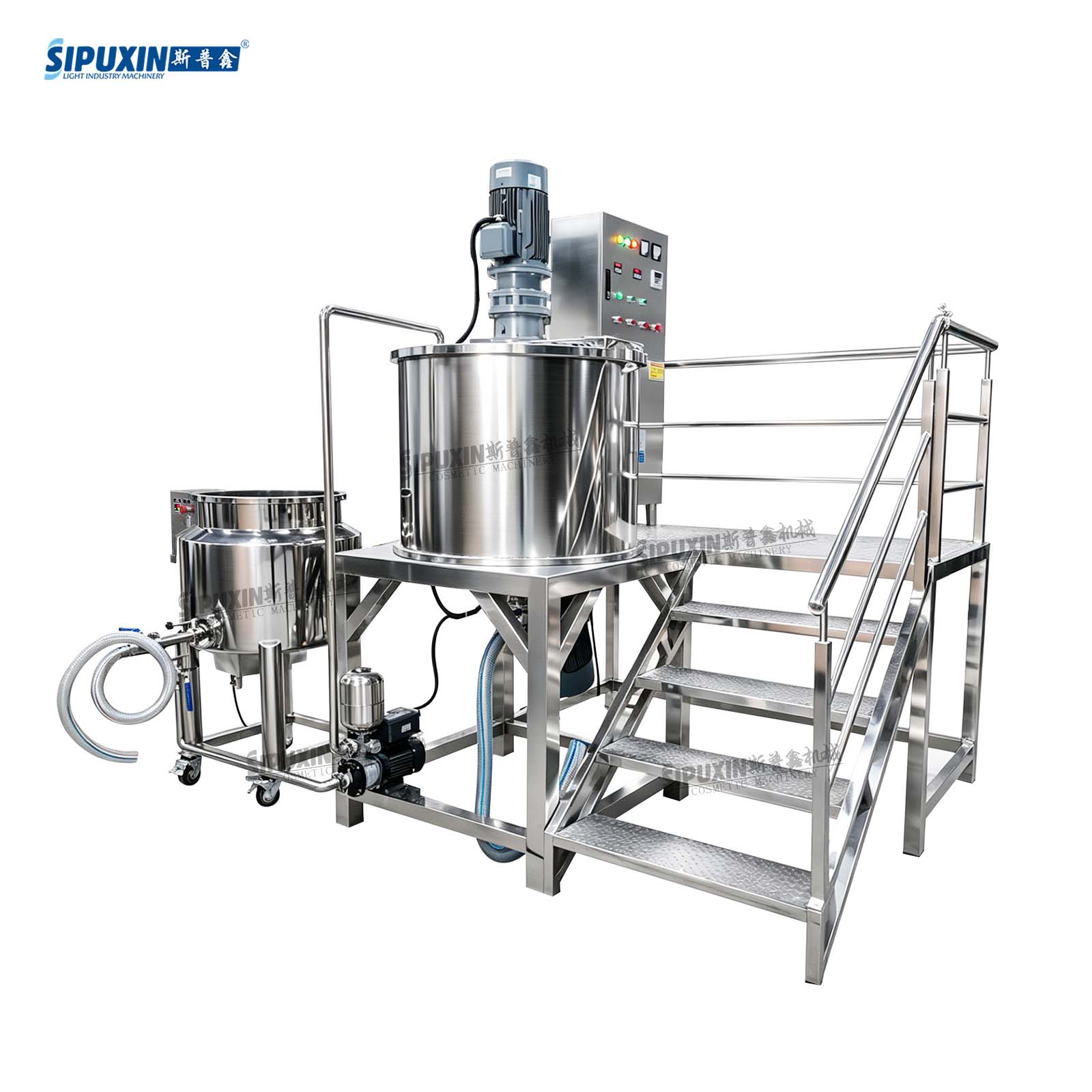

This combined set includes a 500L single-layer high shear homogenizing stirring tank and a 200L electric heating movable storage tank, specially designed for cosmetics, daily chemical, perfume, shampoo and liquid detergent production. The main mixing tank is equipped with top-mounted high shear homogenizer and slow stirring paddle, which can fully emulsify, disperse and mix raw materials evenly. The matched mobile storage tank supports electric heating to keep material constant temperature, with movable casters for convenient material transfer between working procedures. Made of food-grade SUS304/SUS316L stainless steel, all contact surfaces are polished to mirror finish, easy to clean and meet GMP production standards. Widely used in small and medium cosmetic factories for liquid formula blending, storage and constant temperature holding.
| Item | Details |
|---|---|
| Brand | SIPUXIN |
| Full Product Name | Electric Heating Homogenizing Emulsifying Mixing Tank (Liquid Washing Mixing Reactor) |
| Main Material | Food & pharmaceutical grade SUS304 / SUS316L stainless steel, mirror polished tank & pipeline |
| Core Functions | Stirring & dispersion, high-shear emulsification, electric temperature control, circulating material transfer, fast dissolution of insoluble raw materials |
| Power System | Dual independent driving motors (stirring motor + emulsifying motor), variable frequency stepless speed regulation |
| Heating Type | Standard electric heating; steam heating & thermal oil heating for optional customization |
| Structure | Vertical fixed tank, matched with stainless steel operation stairs & independent mobile heating storage tank |
| Customization | Customizable volume, motor power, stirring blade style and full machine configurations based on production requirements |

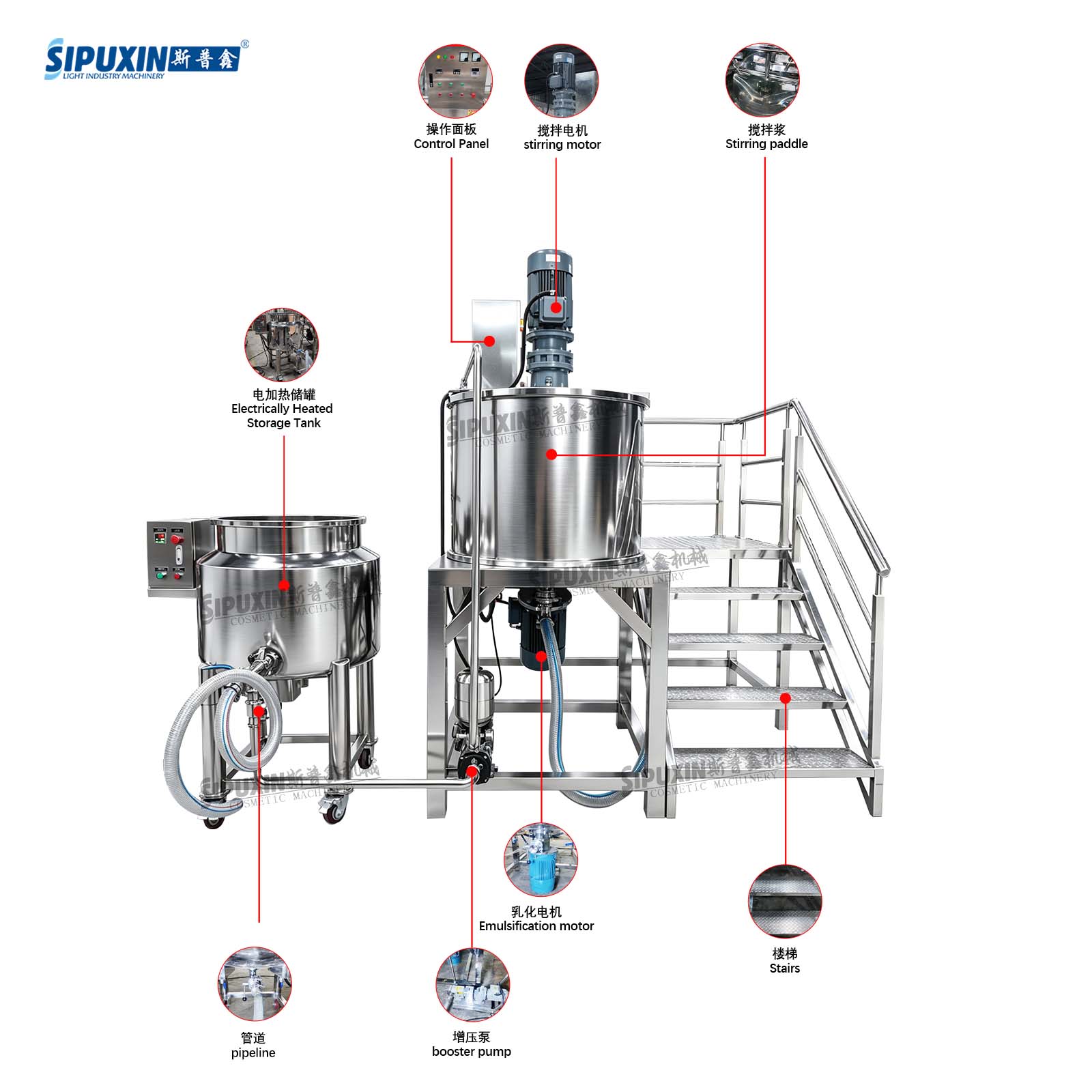

| Marked Component | Main Function |
|---|---|
| Control Panel | Central operation system, integrated with start/stop buttons, parameter setting, real-time status monitoring and fault alarm for automatic production control |
| Stirring Motor | Supplies power for main stirring paddles; adjustable speed to circulate and evenly mix all materials inside tank |
| Stirring Paddle | Directly contacts raw materials to create internal convection flow, prevents sedimentation. Scraper, paddle, frame type paddles are optional |
| Electrically Heated Storage Tank | Independent mobile heating feeding tank, pre-heats raw materials for faster mixing efficiency |
| Pipeline | Sanitary stainless hose & hard pipe, realizes sealed circulating material transfer between auxiliary tank and main tank |
| Booster Pump | Sanitary transfer pump, delivers raw materials from auxiliary tank to main mixing tank automatically |
| Emulsification Motor | Drives bottom high-shear homogenizer, crushes, emulsifies and homogenizes oil & water phase materials to get fine smooth texture |
| Stairs | Stainless steel anti-slip operation platform & stairs, safe access for feeding, sampling and tank inspection |
