Can vegetable oil filling machine
Can vegetable oil filling machine
Introduction
This product suitable for filling ointment liquid and viscosity materials. Filled by hand or automatic system according to the speed .
Its principle of work is adopted the air compressor and air driven piston to complete the suction.
Structure & Performance
♦This product suitable for filling ointment liquid and viscosity materials.Filed by hand or automatic system according to the speed .
♦For manufacturing,pneumatic components are mostly adopts importedparts,such as pneumatic components using FESTO.
♦According to the needs,install of heating, stirring system.
♦The cylinder body adopts the high quality stainless steel, the piston is made of polytetrafluoroethylene , the cylinder connecting parts is connected with fast, convenient dismounting and cleaning.
Technical parameter
Model | Filling Volume | Filling precision | Air consumption | Air source pressure | Productivity |
SGZ-L-15 | 5-150ml | ±0.2% | 23L/min | 0.2-0.8MPA | 20-50bot/min |
SGZ-L-25 | 10-250ml | ±0.2% | 30L/min | 0.2-0.8MPA | 20-50bot/min |
SGZ-L-50 | 30-500ml | ±0.2% | 44L/min | 0.2-0.8MPA | 20-40bot/min |
SGZ-L-100 | 60-1000ml | ±0.2% | 87L/min | 0.2-0.8MPA | 20-30bot/min |
SGZ-L-250 | 250-2500ml | ±0.2% | 160L/min | 0.4-0.8MPA | 10-25bot/min |
SGZ-L-500 | 500-5000ml | ±0.2% | 300L/min | 0.4-0.8MPA | 5-15bot/minT |

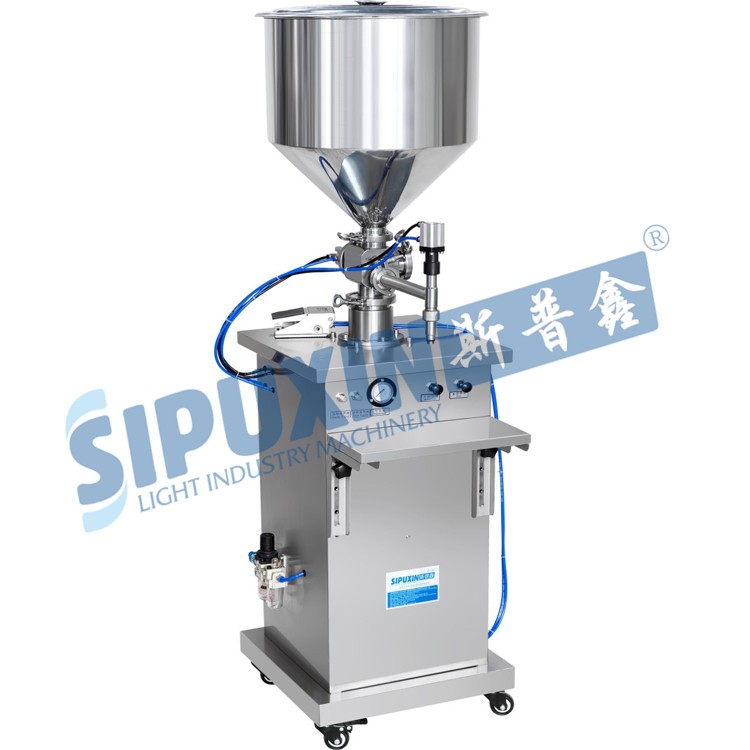

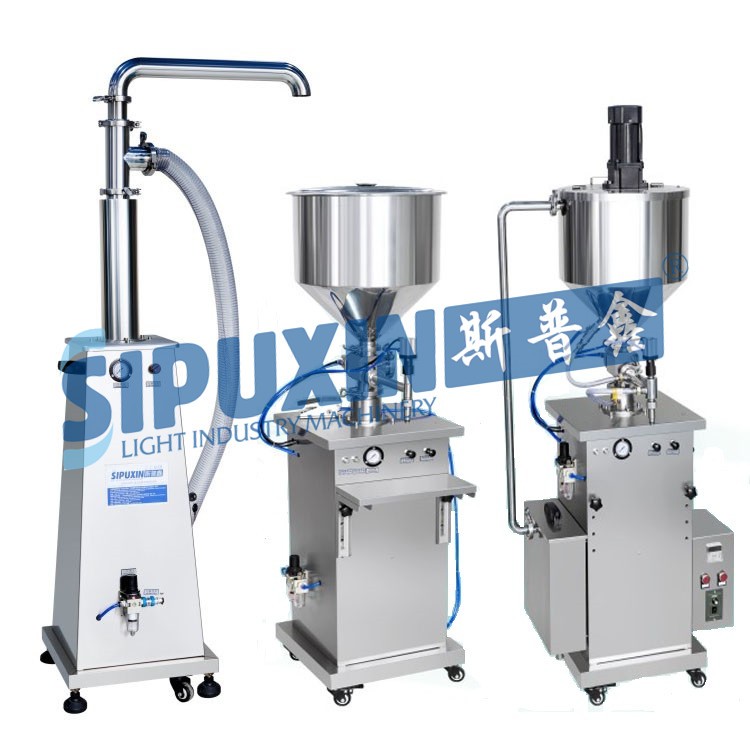

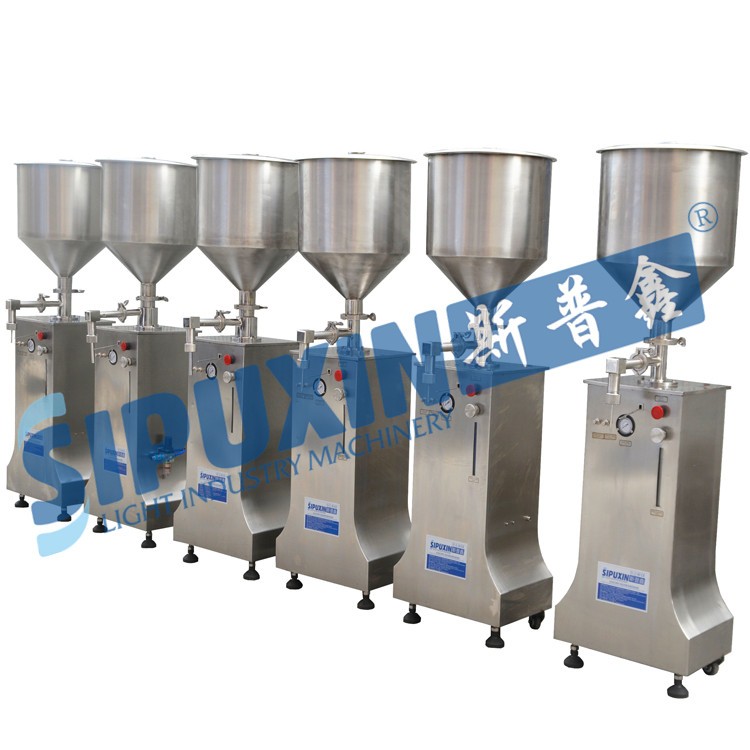

The image of the machine
Material sources of parts

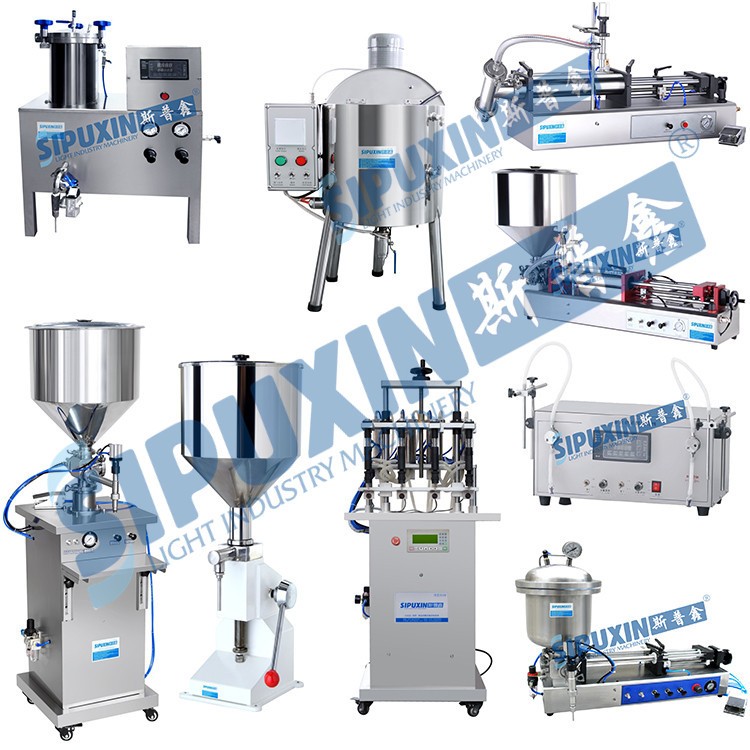

Other machine you may like

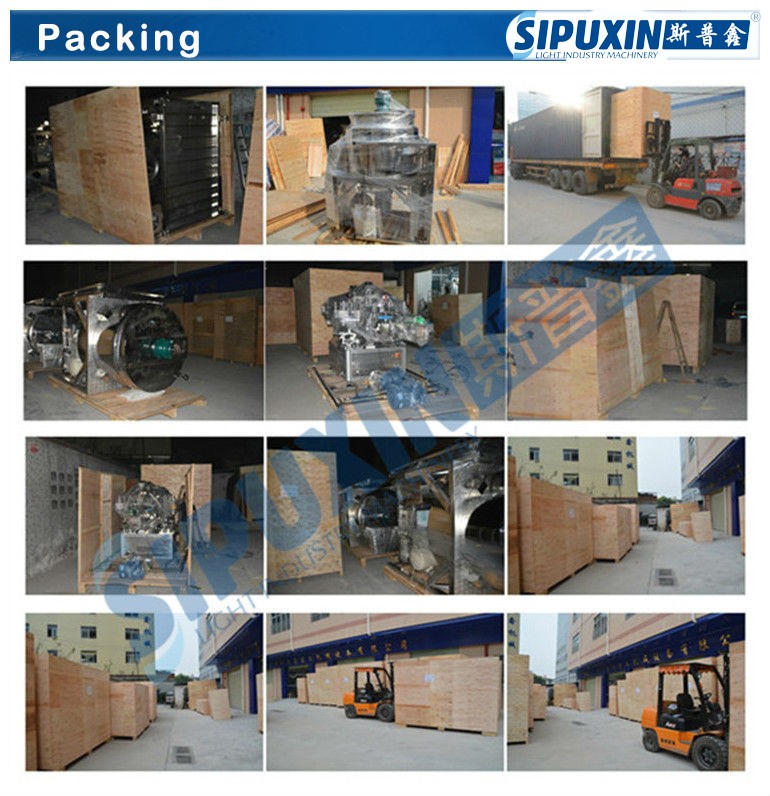

Our wooden case for the product are not only seaworthy, but also strong enough to protect the machine from possible damage.
♣Dear customers ,
Thanks for your visiting,The following are good service we offer :Production and export are SPX’s main services. We offer customized production to suit the needs of our customers. Our services range from specific request, to production, to the final stages of designing and packaging your product. Our professional services also allow for a consistent and reliable supply to our customers. We will provide one-stop services to you such as pre-sale service, under-sale service and after-sale service.
* Pre-sale: According to email communication or further more communication to make sure the details about the machine.
* Under-sale: We make sure to check the machine before the shipping, and for machines, we support 1 years warranty and lifelong positive service.
* After-sale: We can install the machine in your factory, but the cost of accommodation, air ticket, and technician fee will be on your account. However, for small machine, we can install here and shooting the video to send you. When you get the machines, you operate on basic of operation instruction and video.

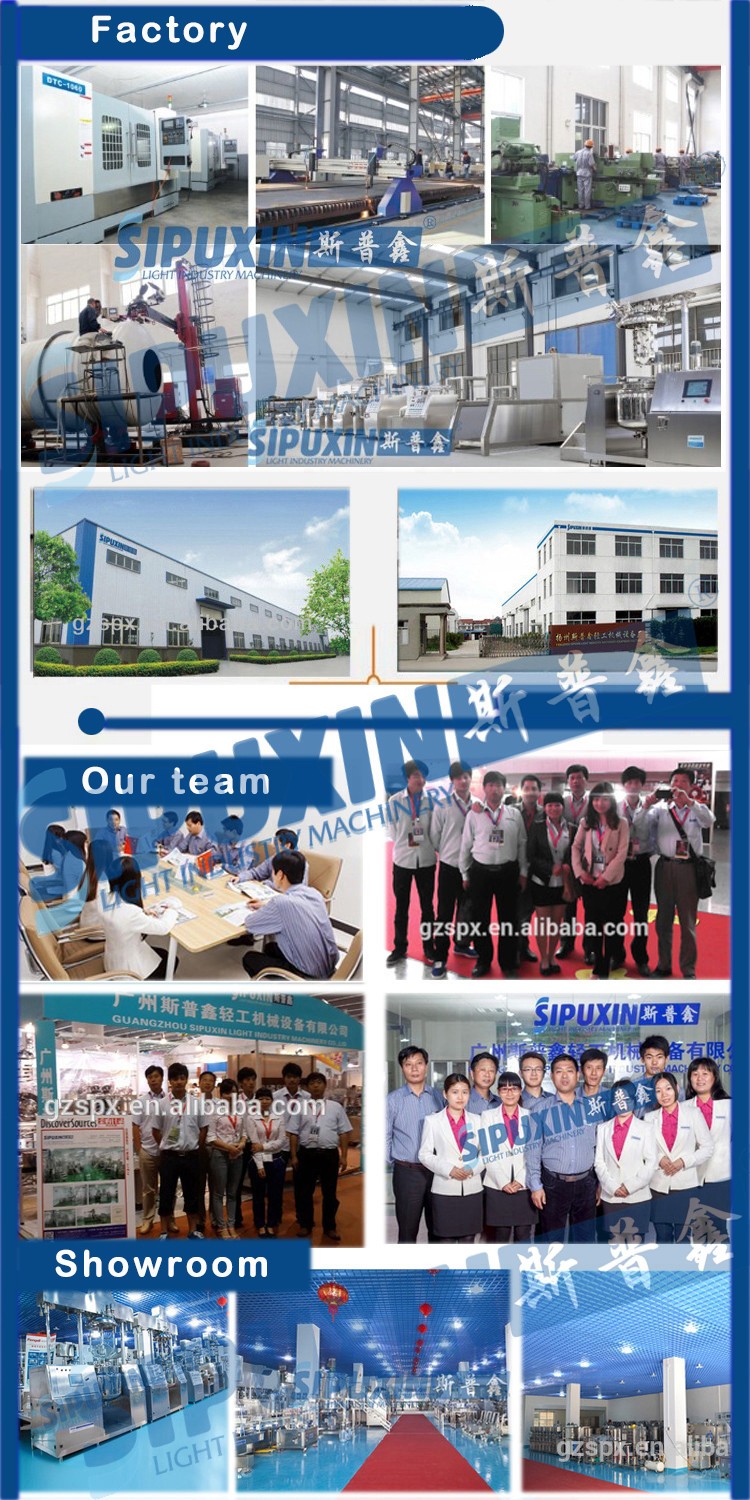

♣ Guangzhou Sipuxin Light Industry Equipment Co.,Ltd.is a professional technology-oriented machinery manufacturer integrating research, development, production, sale, engineering installation,technical consultation and after-sales service.We are mainly engaged in production and installation of equipment for pharmacy, food, cosmetics, chemical industry,etc.,providing one-stop prompt service for customers.
♣Holding the enterprise concept of providing more considerate service,we grasp equipment production standards,control equipment quality through technical innovation and provide high quality production equipment for customers.
♣Our main products:
Vacuum homogenizing emulsifier,high-shear liquid detergent mixer,reverse osmosis water treatment,storage tank,liquid and powder automatic and semi-automatic filling production line, various bottle capping machine,labeling machine, inkjet printer and other cosmetic and perfume whole-set productionline, laboratory equipment, conveyor,etc.
