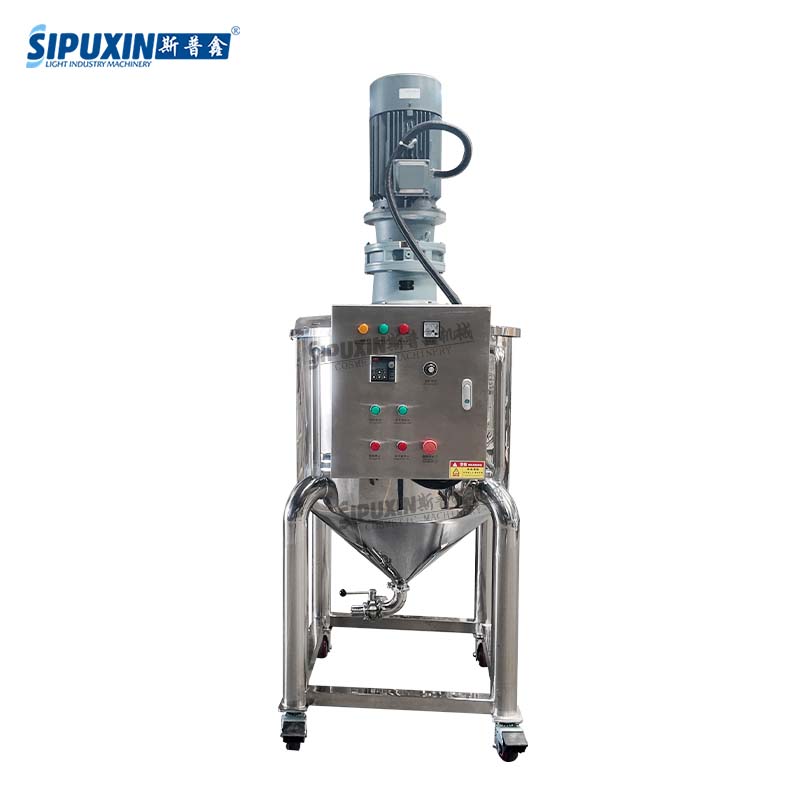

SIPUXIN 300L SUS 316 Movable Single-Layer Mixing Tank with Conical Bottom

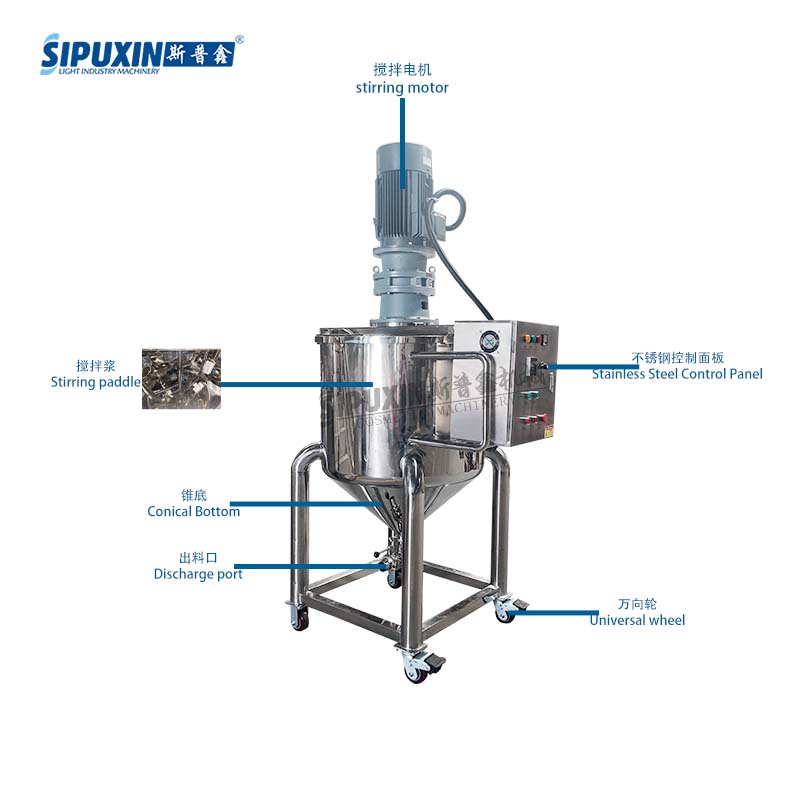

| No. | Component Name | Function Description |
|---|---|---|
| 1 | Stirring Motor | Supplies power to drive the stirring paddle. Power and rotating speed can be selected according to material viscosity to achieve uniform blending. |
| 2 | Stainless Steel Control Panel | Controls start, stop and speed adjustment of the mixer. Stainless steel housing is waterproof and anticorrosive for safe and convenient operation. |
| 3 | Stirring Paddle | Rotates to disperse and blend raw materials. Paddle style can be customized to match different liquid materials. |
| 4 | Conical Bottom | Tapered design prevents material dead zones, guides materials to the outlet and reduces residue after discharging. |
| 5 | Discharge Port | Located at the lowest point of the cone bottom, fitted with valve for fast, clean and complete material discharge. |
| 6 | Universal Wheel | Heavy-duty casters with brake lock. Allow flexible movement and stable positioning in the workshop. |
| 7 | Tank Body | Made of SUS316 stainless steel, corrosion-resistant and easy to clean, meeting GMP sanitary requirements. Jacket for heating/cooling is optional. |
Product Overview
This movable single-layer mixing tank is constructed with food-grade SUS316 stainless steel. Designed with conical bottom structure to realize thorough material discharge without residue. Installed with heavy-duty universal wheels, easy to transfer between production stations. It is ideal equipment for liquid mixing, blending and temporary storage for cosmetic, daily chemical, beverage and chemical industries.
Main Features
- Tank material: SUS316 stainless steel, anti-corrosion, easy to clean, meets GMP hygiene standard
- Conical bottom design, equipped with bottom discharge valve, no material leftover
- Movable casters with brake function, convenient workshop transportation
- Single-layer structure, support customized agitator: paddle mixer, anchor stirrer, high shear homogenizer optional
- Smooth internal mirror polishing, no dead corner, convenient CIP cleaning
- Multiple capacity options: 50L~5000L available for selection
Application Range
Suitable for mixing shampoo, body wash, lotion, perfume, liquid soap, essence, oral liquid and other liquid products in cosmetic, pharmaceutical, food and fine chemical industry.
Technical Parameter
- Effective Volume: 300L
- Tank Material: SUS316 Stainless Steel
- Structure: Single Layer, Conical Bottom
- Mobility: Universal movable wheels with brake
- Working Temperature: Normal temperature (heating/cooling jacket can be customized)
- Mixing Motor: Customized power on request
SIPUXIN is a professional manufacturer of cosmetic processing machinery. We support non-standard customization on tank size, stirring system, control panel and accessories. Welcome to send inquiry for detailed specification and factory price.
