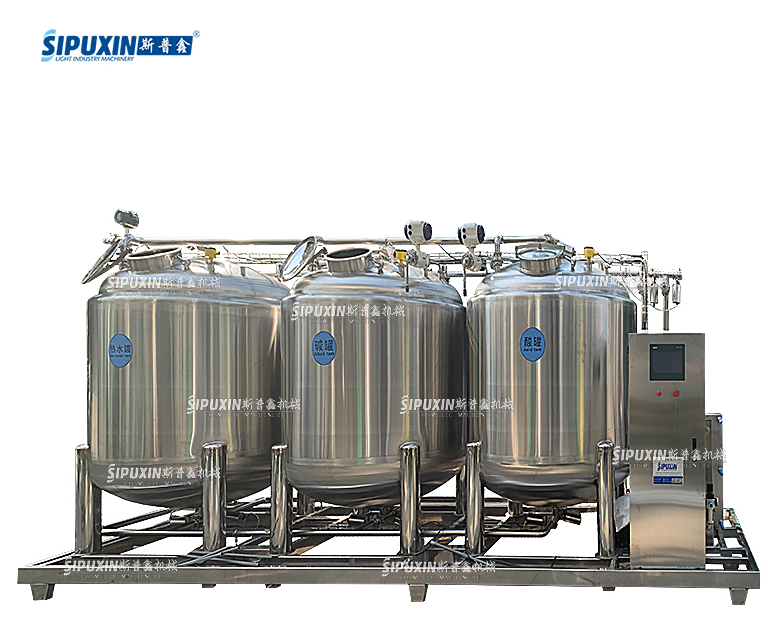

SIPUXIN 3-Tank Automatic CIP Cleaning Station for Hygienic Production in Cosmetic, Food & Pharma Industries

SIPUXIN Machinery  CIP (Clean-in-Place) system, engineered for high-sanitation production lines including dairy, beverage, cosmetic, pharmaceutical and fine chemical sectors. The system realizes full automatic circulation cleaning & sterilization without dismantling tanks, pipelines and emulsifying equipment, fully compliant with international standards to help global manufacturers cut operating costs and meet hygiene compliance requirements.

Core Features & Advantages

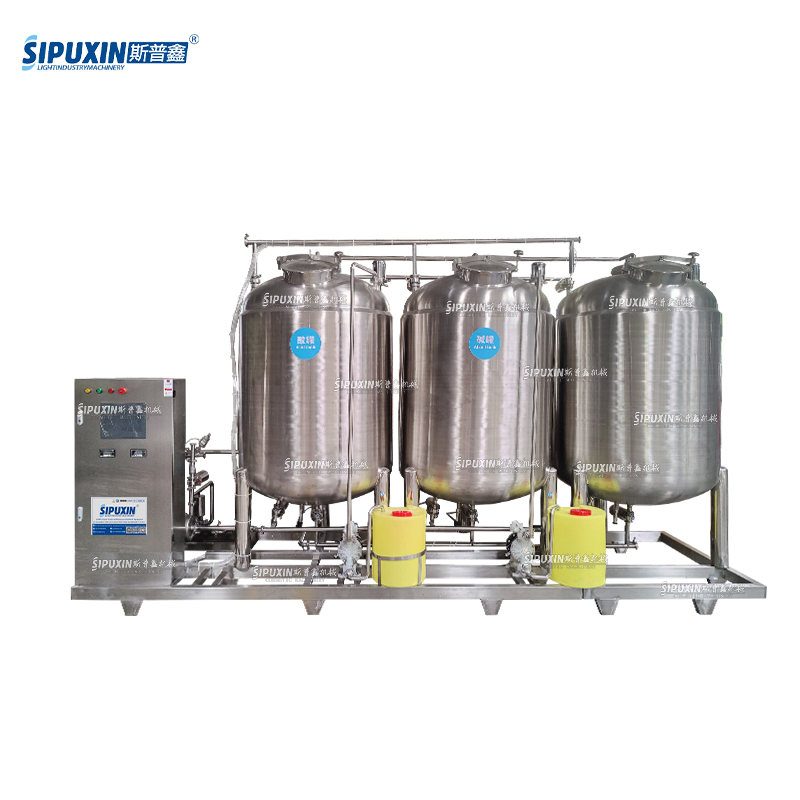

1. Independent 3-Tank Liquid Storage Design Equipped with three 316L sanitary stainless steel tanks for acid solution, alkaline solution and recovered clean water separately. External dosing barrels are attached for automatic detergent concentration mixing, avoiding cross-contamination between different cleaning agents. Waste cleaning water can be recycled, reducing water consumption by over 50%.
2. PLC Touch Screen Intelligent Auto Control Cabinet Integrated electrical control panel with touch HMI on the left side supports customizable segmented cleaning programs: pre-rinse → alkaline circulation wash → hot water rinse → acid circulation wash → final pure water rinse → high-temperature sanitization. It monitors flow rate, temperature, detergent concentration and circulation pressure in real time, and automatically stores cleaning records for factory audit traceability.
3. Full Sanitary Stainless Steel Modular Skid Frame The whole unit is mounted on an integrated 304 stainless steel base frame. Tank inner surface mirror polishing reaches Ra ≤ 0.8μm, matched with sanitary centrifugal pumps, seamless sanitary pipes and tri-clamp connections with no dead corners. All medium contact parts are 316L stainless steel with strong acid & alkali resistance, perfect for removing stubborn residues of cream, emulsion, fermented liquid and milk fat.
4. Plug-and-Play Integrated Skid Mounted Structure All pipelines, valves and electric parts are pre-installed in factory. Clients only need to connect water supply, drainage and power cables on site to start production, greatly shortening installation & commissioning period. Customization options include tank volume, cleaning flow rate and heating module to fit small & medium cosmetic workshops, dairy plants and beverage production lines.

Wide Application Fields

1. Cosmetic Industry: Emulsifying reactors, mixing storage tanks, filling pipelines, BOV aerosol production lines cleaning & sterilization
2. Food & Dairy Industry: Milk fermentation tanks, fruit juice blending vessels, sterilization pipes, filling equipment in-place cleaning
3. Pharmaceutical & Bio Industry: Aseptic liquid preparation tanks, buffer storage tanks, traditional Chinese medicine extraction equipment sanitization
4. Fine Chemical: Automatic residue removal for paste, lubricant and additive reaction kettles



Company Introduction

About Us

Guangzhou Sipuxin Light Industrial Machinery Equipment Co.,Ltd.with Yangzhou Sipuxin Light Industrial Machinery Equipment Factory as a solid backing,specializing in cosmetics,pharmaceutical,food,daily chemicals and other industries complete sets of equipmer manufacturers,to provide customers with a variety of special application fields of solutions .

The main products include vacuum homogenizing emulsifier,high-shear liquid detergent mixer,storage tank various cream,various bottle capping machine and other cosmetic and perfume whole-set production line,laboratory equipment,conveyor,etc.
