Rotary Chuck Automatic Perfume Filling Crimping Capping Machine, Full Auto Glass Bottle Fragrance Filler with Vibratory Cap Feeder
author: Bella朱
2026-06-21

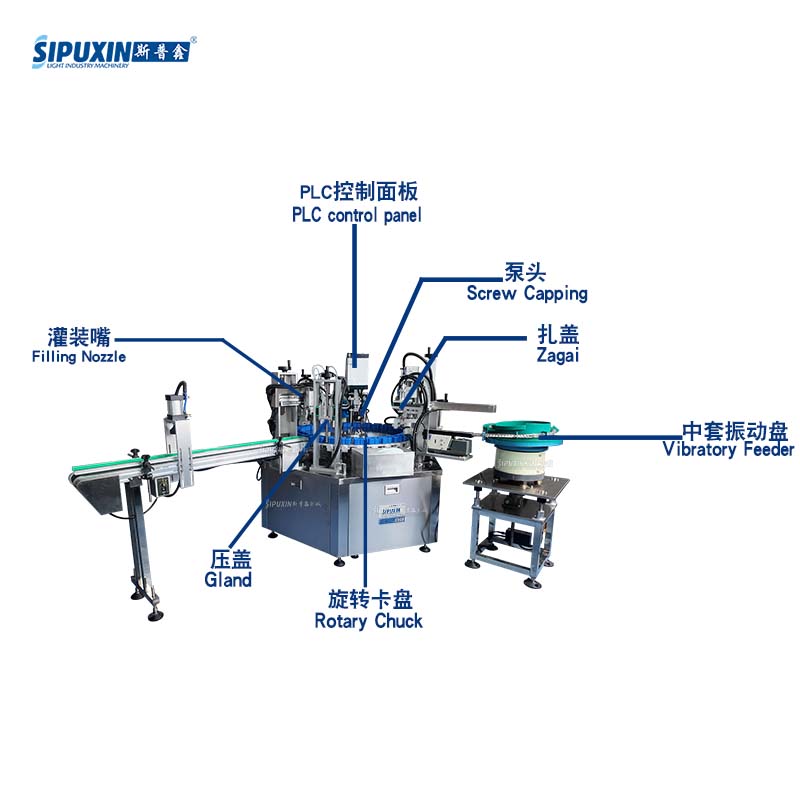

Machine Composition
Zagai
sealing core part of perfume filling machine.
It compresses and locks aluminum pump sleeves tightly onto glass bottle necks to achieve leak-proof sealing.
Its height can be adjusted to match perfume bottles of different sizes.

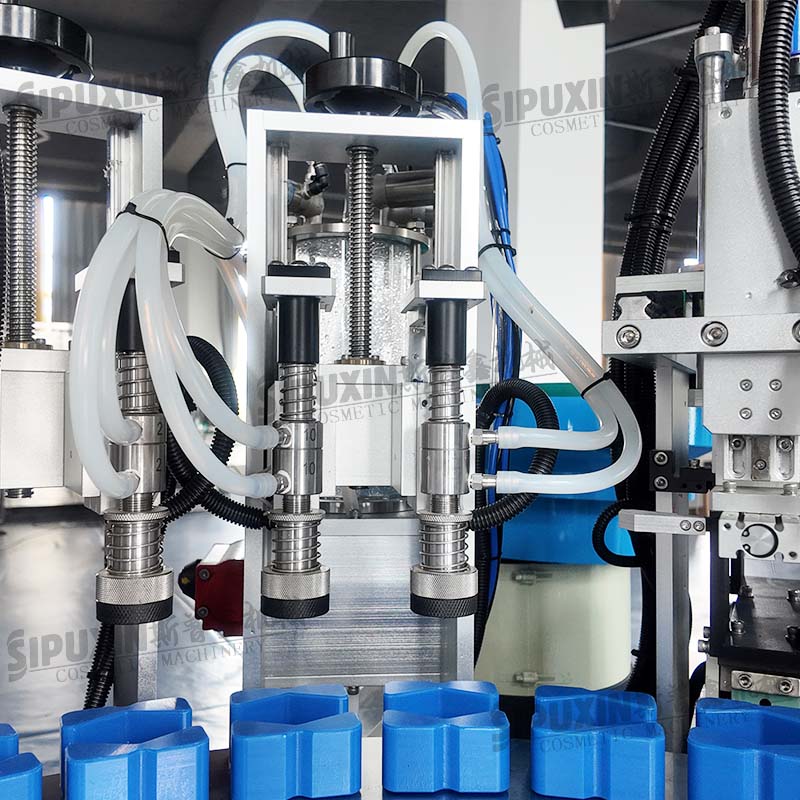

Filling Nozzle
Equipped with pneumatic sliding module and anti-drip stainless steel filling head, it realizes precise quantitative filling for perfume, essential oil and floral water.
Adjustable height fits various glass perfume bottles without liquid dripping.

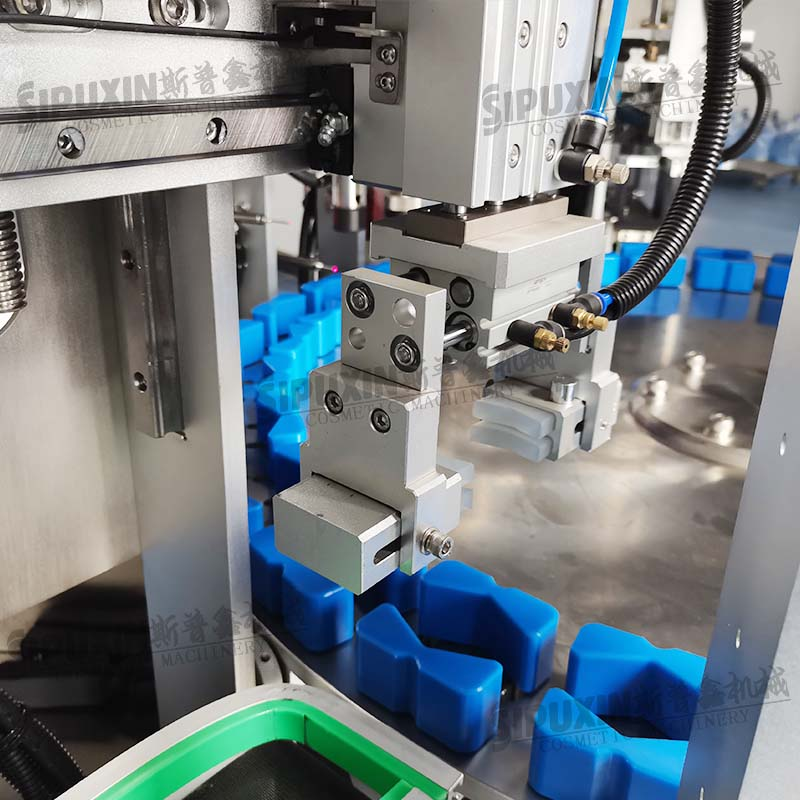

Gland
Automatically press aluminum gland tightly on bottle neck to prepare for subsequent crimp sealing.

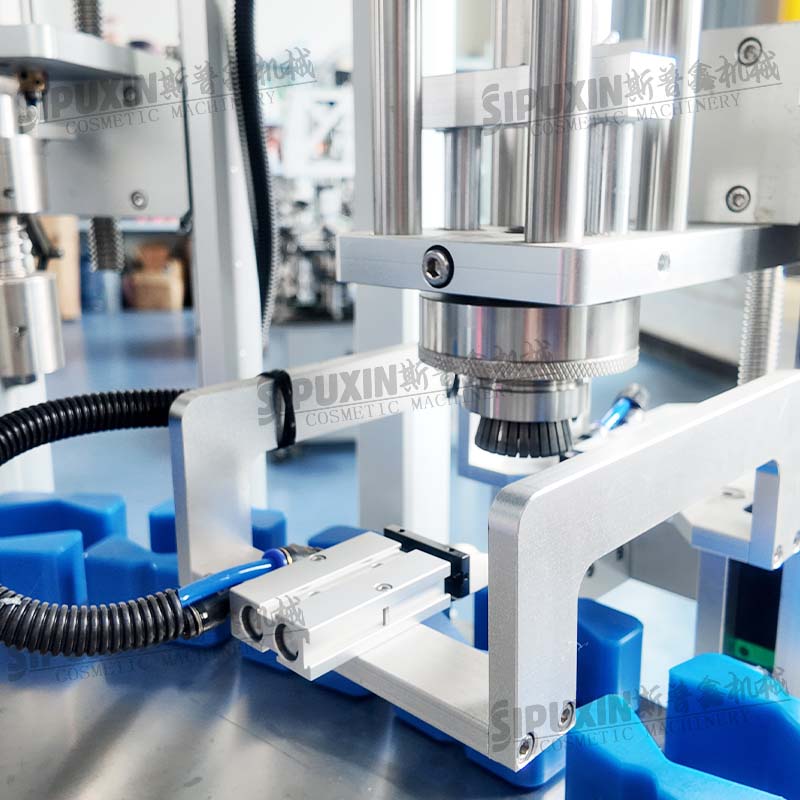

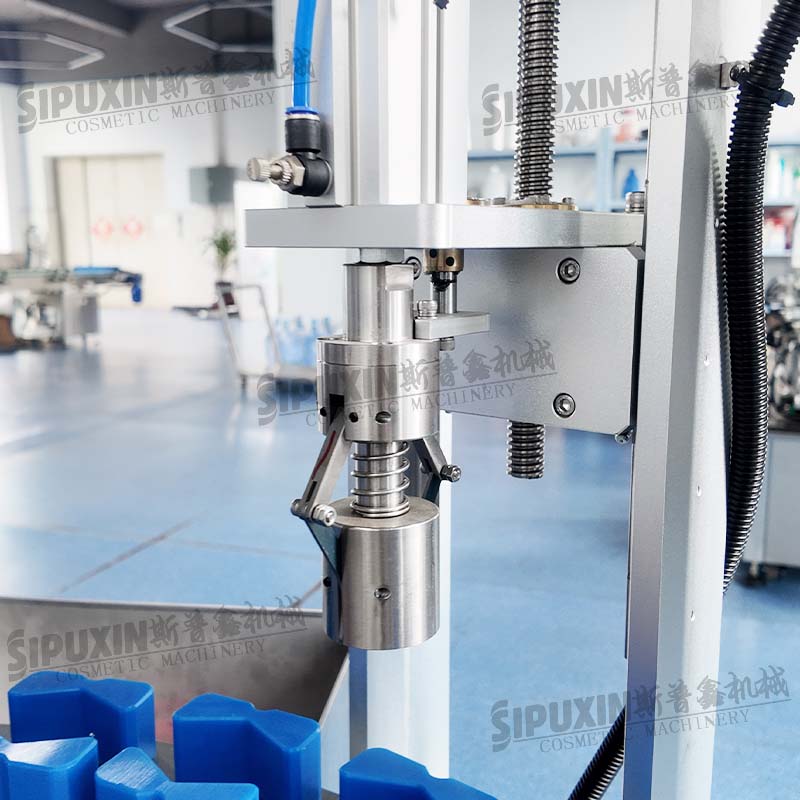

Screw Capping
Crimp aluminum cap firmly on bottle mouth, tight sealing without loosening, no damage to bottle or cap.

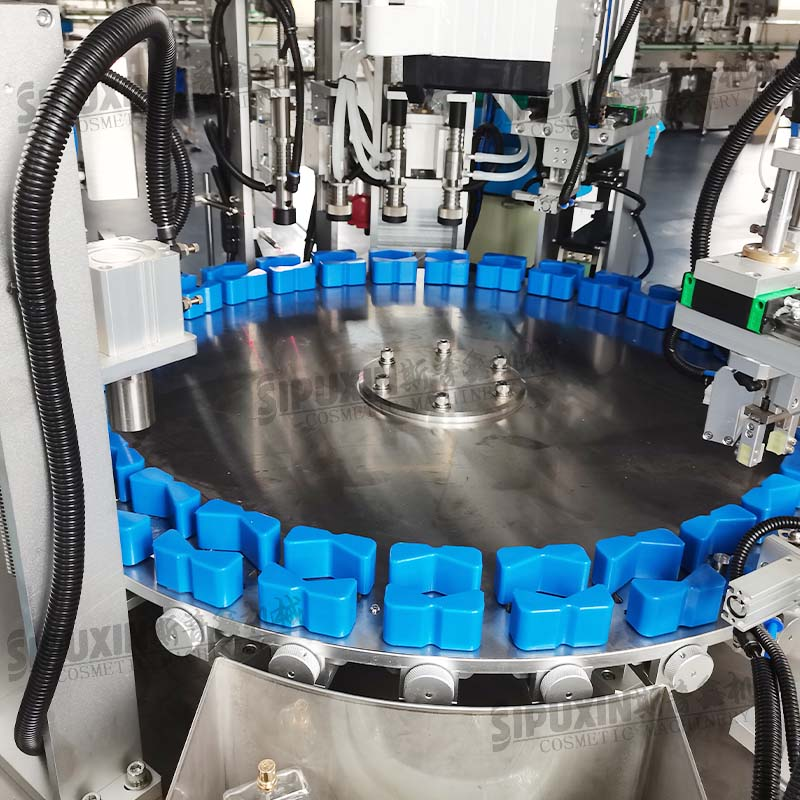

Rotary Chuck Turntable
Equipped with customized blue positioning molds to clamp perfume bottles and transfer them circularly to each processing station continuously.

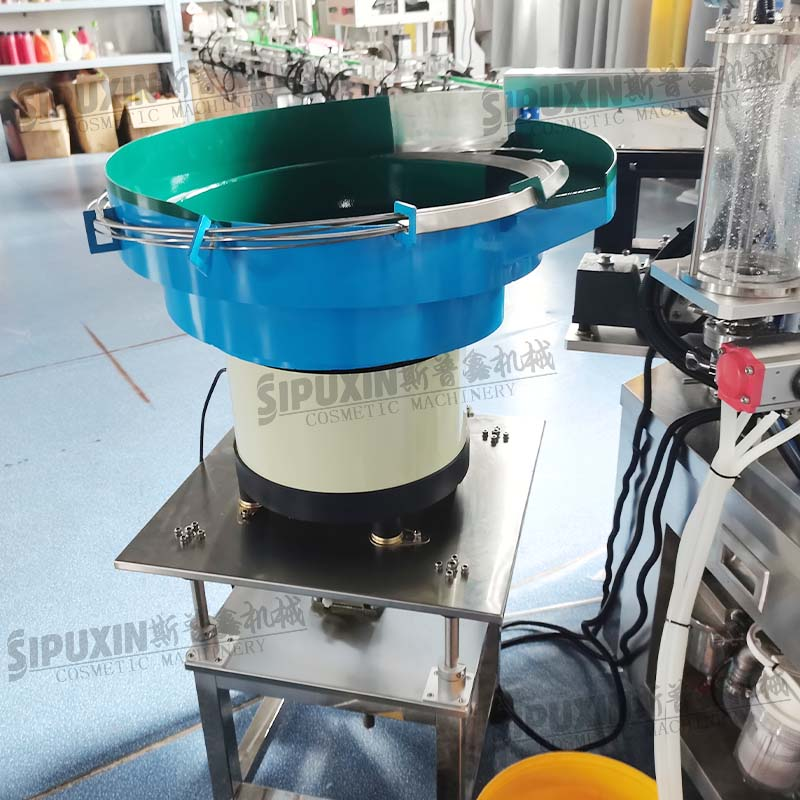

Vibratory Feeder
Automatic sorting, feeding and arranging plastic/aluminum middle sleeves, save manual cap placing labor.

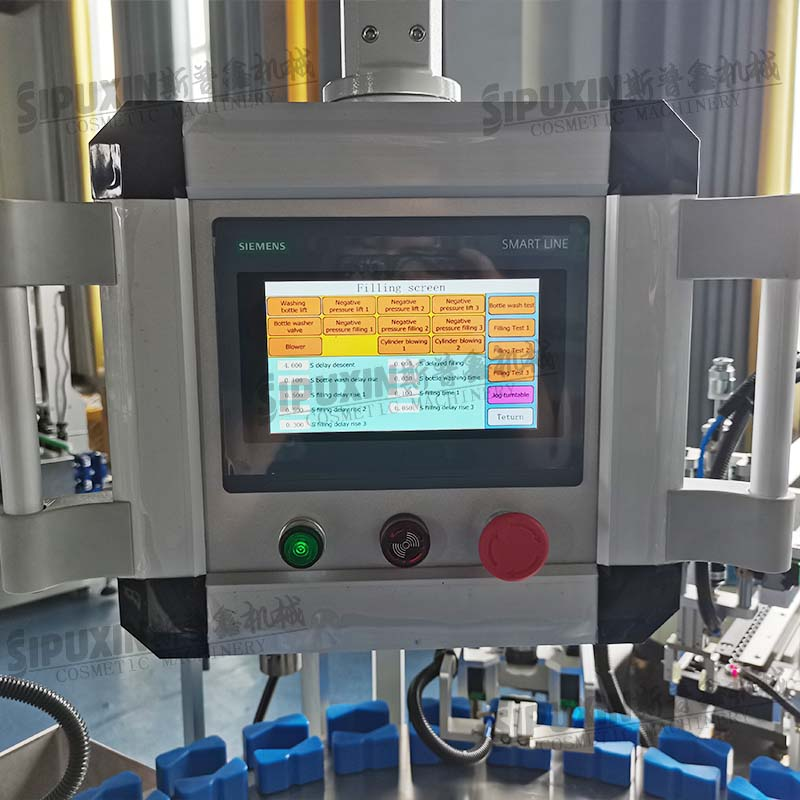

PLC Control Panel PLC
Siemens touch screen to set filling volume, running speed and all station parameters; equipped with start light and emergency stop button.
Core Advantages
1. All-in-one rotary design, complete filling-crimping workflow without manual transfer
2. High filling precision, no liquid leakage for low-viscosity perfume & essential oil
3. PLC automatic control, easy parameter adjustment for different bottle sizes
4. SUS304 stainless steel structure, clean and compliant with cosmetic standards
5. Stable running, high output for perfume factory mass production
Application
| Item | Parameter |
|---|---|
| Model | Rotary Chuck Automatic Perfume Filling Crimping Capping Machine |
| Working Process | Filling → Gland Pressing → Middle Sleeve Feeding → Crimping |
| Applicable Bottle | All glass perfume bottles |
| Filling Range | 5–100ml adjustable |
| Control System | PLC + Touch Screen |
| Automation Level | Fully Automatic Rotary Type |
| Main Material | SUS304 Stainless Steel |
| Supporting Device | Automatic vibratory cap/sleeve feeder |
| Application | Perfume, Cologne, Fragrance, Essential Oil Production |
