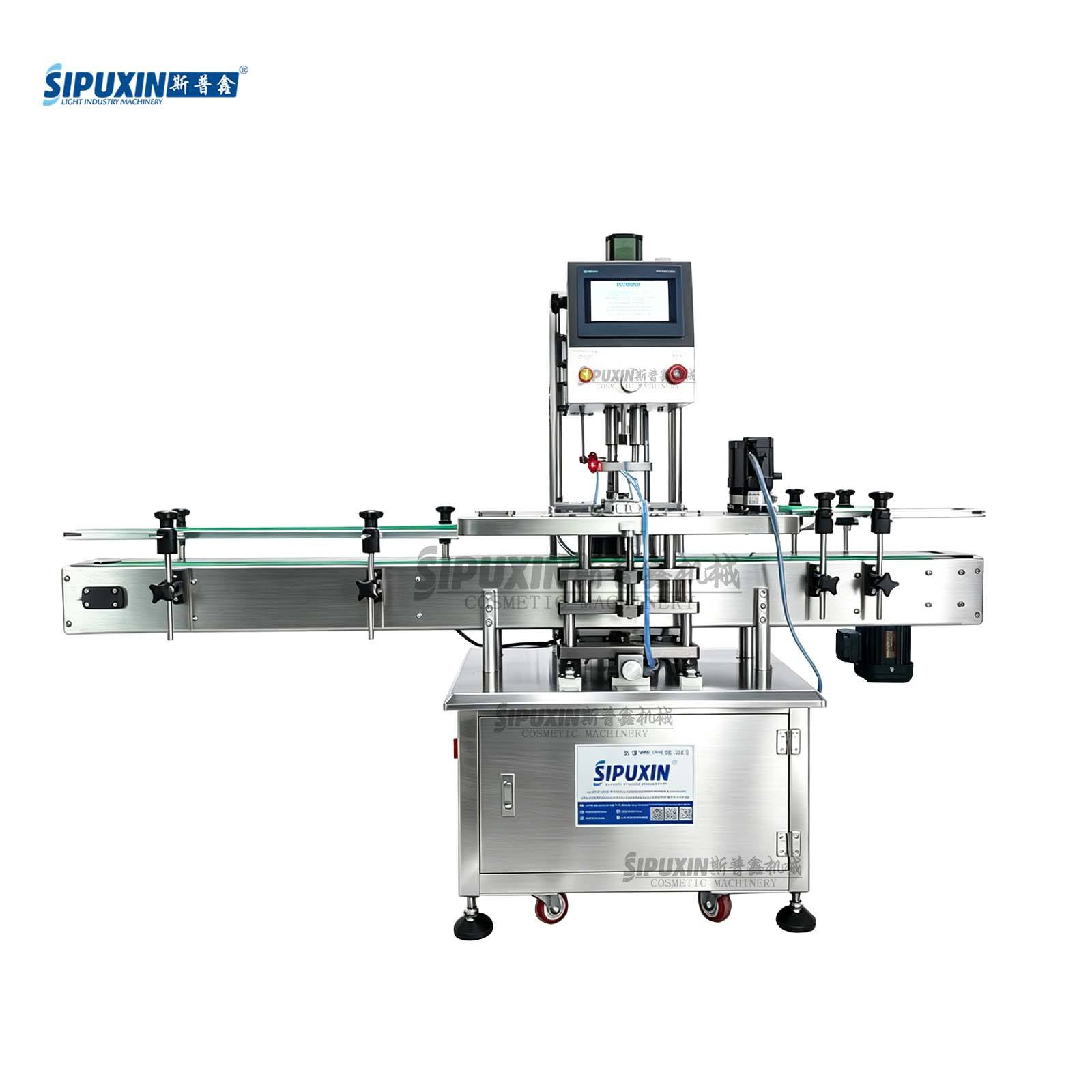

Automatic 4-Wheel Bottle Capping Machine, High Speed Linear Screw Capper for Cosmetic Food Beverage

Product Description



Performance

1.Linear design, forming a convenient and beautiful assembly line. The host speed adopts an imported frequency converter, which can perform stepless speed regulation. The use of a strong electromagnetic left turn cap torque converter completely solves the problem of traditional mechanical friction plates being tight and sometimes loose when turning the cap.

2.Before continuing with the cap chute on the spiral axis capping machine, the cap elevator is fed into the bottle cap to ensure proper alignment. The cover slide guides the seal towards two fingers to secure the seal. Fingers enable each approaching bottle to remove the current lid, preparing for sealing. The combination of closed containers is introduced into the capping station. The stabilizer keeps the lid stable, while the grab strap keeps the container in place. 3.When the combination passes through the machine, the rotating discs (usually three or four sets) are connected to the cover. The rotating disc generates the torque required to tighten the cover on the container.

Application

Advantages: 1. The compatibility range is relatively large. From a 30mm bottle to a 150mm bottle, one machine can handle it all the way 2. High efficiency. A 30mm small bottle can reach a capping speed of 150 bottles per minute.

Machine weight	About 100kg
Product name	can be customized
Material	SUS304/316L
Function	capping and crimping machine
Driven Type	Electric heating /penumatic driving way
Type	high capping speed
Advantage	Customized

Details Images

Coveyor motor

The driving way of coneyor is motor dirving.the speed of coneyor also can be adjusted.

Moniter detector

The monitor detector is sensitive and accurate,the place of detector also can be moved to the suitable place to detect the place of bottle.

Capping device

Capper hugging motoe ,the tightness of crimper can be adjusted according to the material of bottle cap.

4 crimper device

4 crimpers device which hug the bottle cap tightly without looseing and crimping the cover on the bottle mouth tightly.

Machine driving valve

motor

The air driving valve should be cleaned regularly to confirm there have not a mount of water vapour in the valve to lock the machine can't work normally. we will provide the manual for maintence.

Company Introduction

About Us

Guangzhou Sipuxin Light Industrial Machinery Equipment Co.,Ltd.with Yangzhou Sipuxin Light Industrial Machinery Equipment Factory as a solid backing,specializing in cosmetics,food,daily chemicals and other industries complete sets of equipmer manufacturers,to provide customers with a variety of special application fields of solutions .

The main products include vacuum homogenizing emulsifier,high-shear liquid detergent mixer,storage tank various cream,various bottle capping machine and other cosmetic and perfume whole-set production line,laboratory equipment,conveyor,etc.
