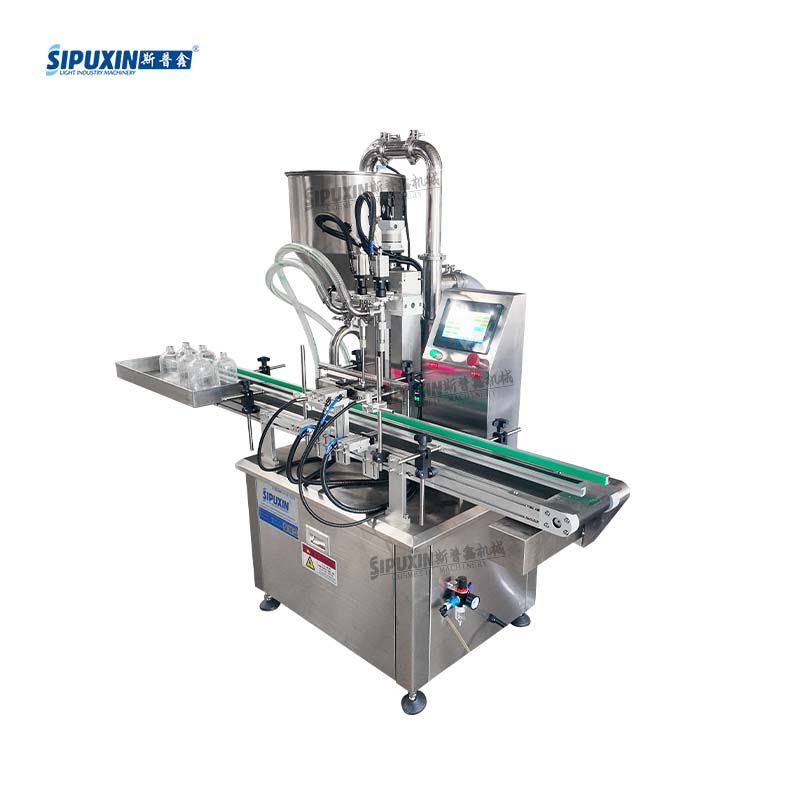

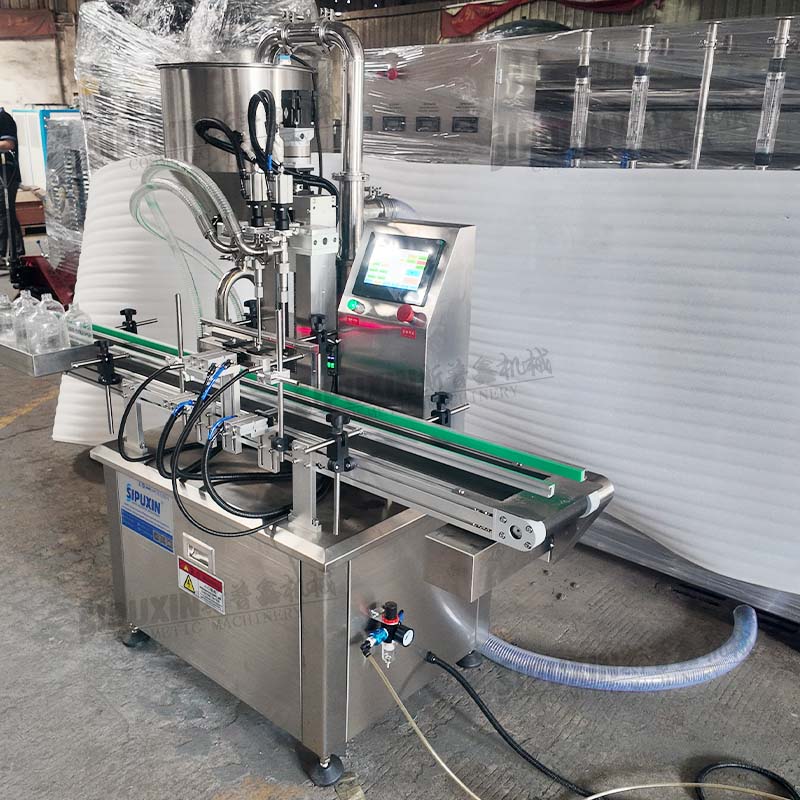

Automatic Double Head Gear Pump Filling Machine for Cosmetic Cream Lotion Shampoo
author: Bella 朱
2026-06-06
Automatic double-head gear pump filler adopts SUS316L gear pump,
equipped with PLC touch control panel, feeding hopper, filling nozzles and conveyor belt.

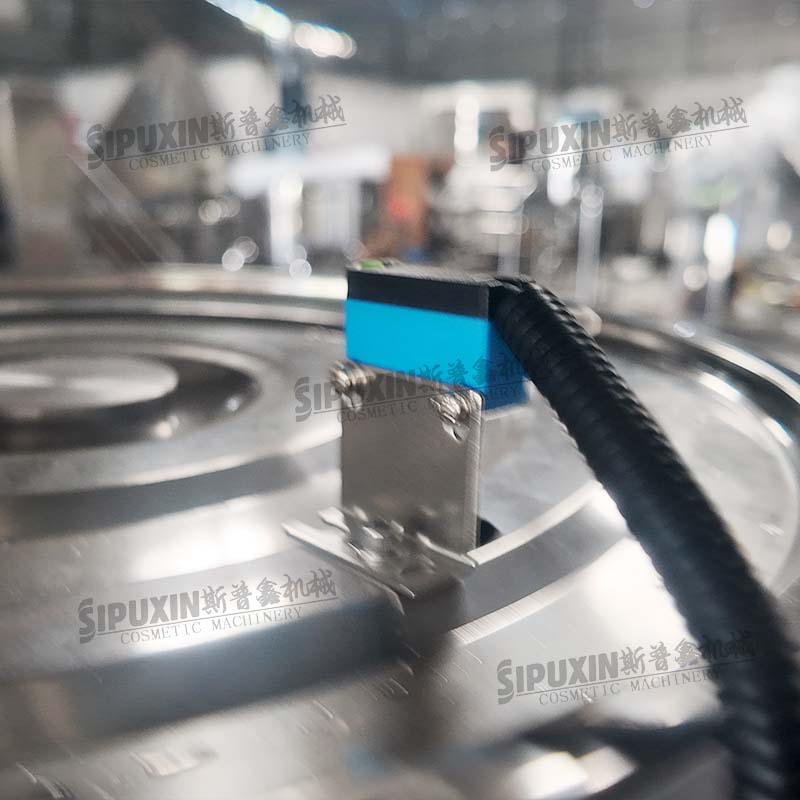

It realizes automatic bottle feeding, positioning and quantitative filling via photoelectric sensor,
widely used for thick liquid, cream, paste like cosmetic, pharmaceutical, food, daily chemical products.

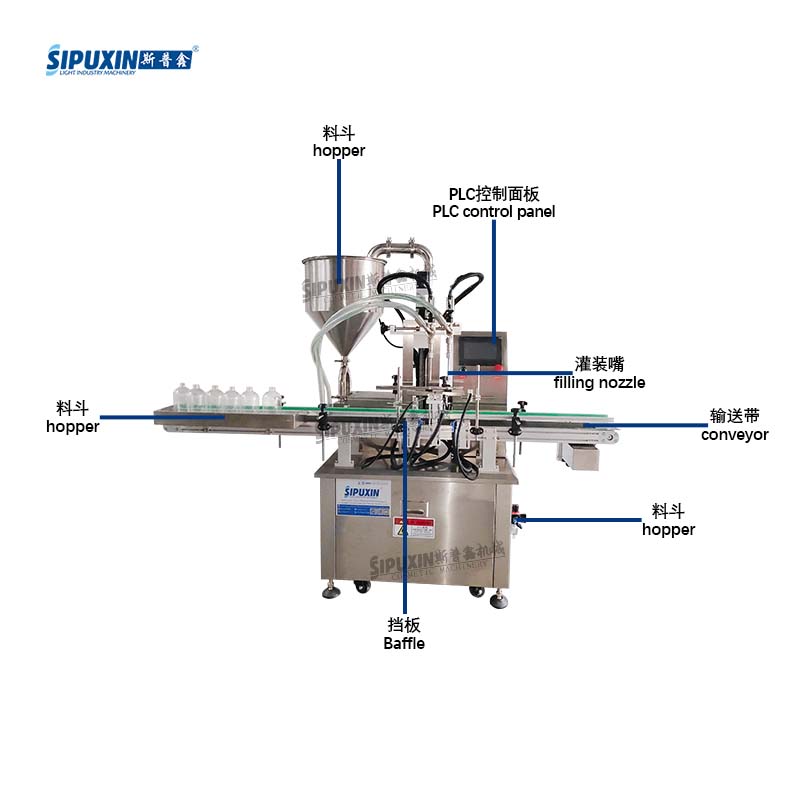

Full Automatic Double-head Gear Pump Filling Machine - Core Parameters
1. Hopper
Made of SUS304 stainless steel, store raw paste/liquid, connect directly with gear pump for continuous feeding.
2. PLC Control Panel
Touch screen + PLC system, set filling volume, speed and working mode digitally, easy parameter adjustment.

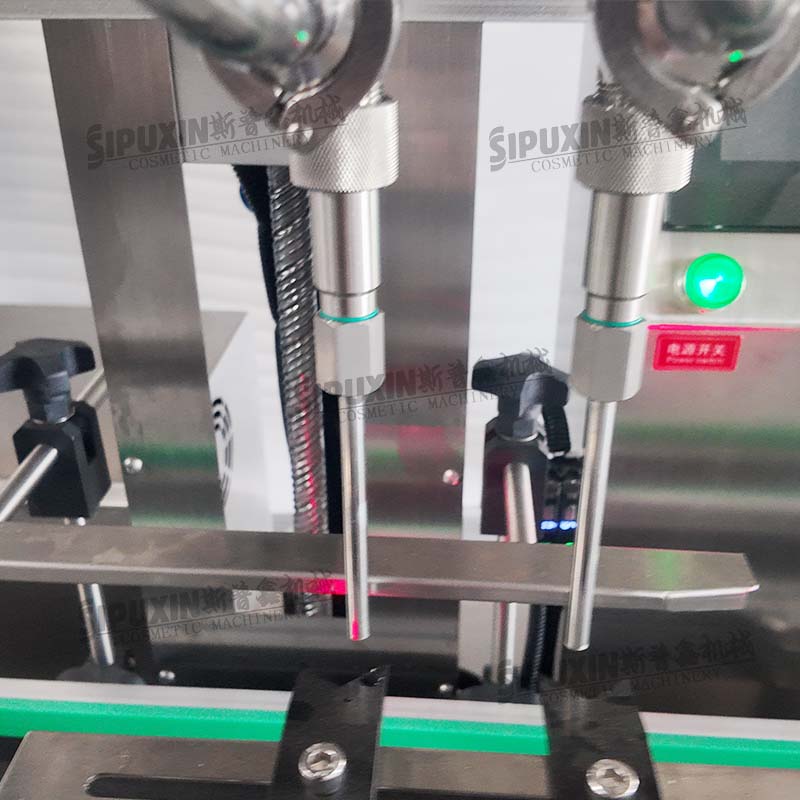

3. Filling Nozzle
Anti-drip filling nozzle, optional lifting design to avoid foaming and liquid dripping.
4. Conveyor Belt
Variable frequency conveyor, cooperate with photoelectric sensor to finish automatic bottle in-place & filling.
5. Baffle
Adjustable bottle baffle, fix bottle position to guarantee stable filling accuracy.

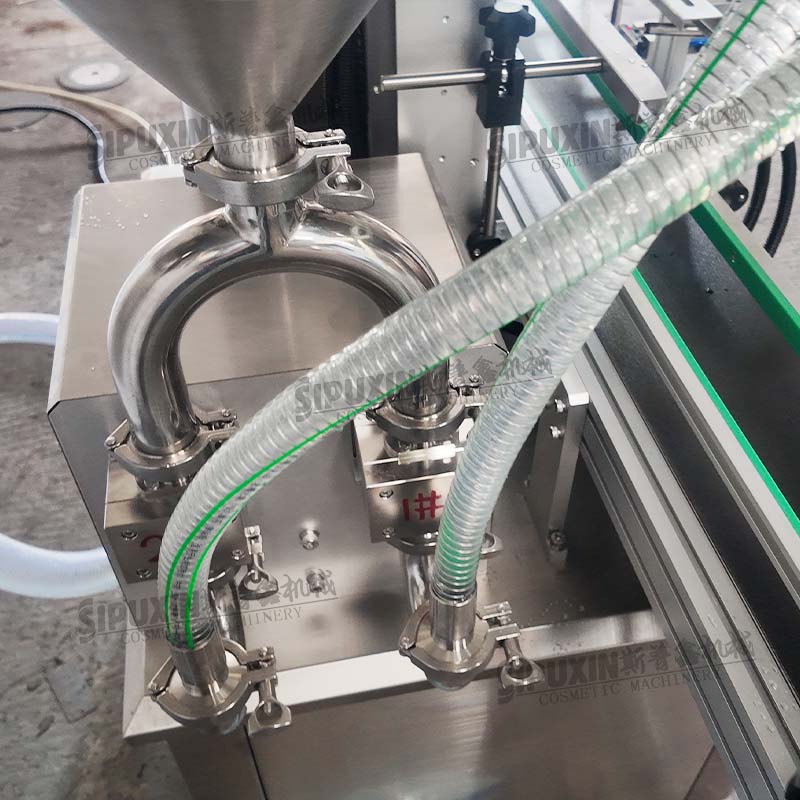

6. Double Gear Pump Unit
SUS316L food grade gear pump, core filling component for precise quantitative feeding.
7. Main Machine Frame
Whole SUS304 stainless steel frame, corrosion resistant, comply with GMP production standard.
| Parameter | Core Value |
|---|---|
| Filling Range | 5ml - 5000ml |
| Filling Accuracy | ±0.5% - ±1% |
| Total Power | 1.1KW |
| Rated Voltage | 220V/50Hz (Customizable 220V/60Hz) |
| Standard Filling Speed | 60 bottles/min |
| Speed Range | 50 - 80 bottles/min |
| Frame Material | SUS304 Stainless Steel |
| Wetted Parts | SUS316L Food Grade Stainless Steel |
| Net Weight | 195KG |
| Control Mode | PLC Touch Screen Automatic Control |
| Applicable | Cosmetic / Pharmaceutical / Food Paste & Liquid |
