500L/H Single Stage PVC RO Water Treatment System Industrial Reverse Osmosis Water Purifier for Cosmetic/Food Beverage Production
author: zhu
2026-07-17
Brief Machine Introduction
This 500L/H single-stage RO water treatment machine adopts full anti-corrosion PVC pipelines, equipped with quartz sand, activated carbon and precision filter pretreatment.
It runs automatically with pressure real-time monitoring, stably producing purified water for cosmetic, food and small factory production.
Compact integrated frame, easy operation and maintenance.
Usage & Application
Usage
1. Connect raw water inlet and power supply, check all filter cartridges and pipelines.
2. Turn on the machine; quartz sand and activated carbon tanks remove sediment, rust and residual chlorine first.
3. The booster pump delivers pre-treated water to RO membrane for desalination and purification.
4. Qualified purified water flows out for production use, while concentrated water drains separately.
5. Real-time pressure gauges monitor operating status; replace pre-filter media regularly for stable performance.
Application
• Cosmetic factory: Pure water for cream, serum, shampoo formulation and container cleaning
• Food & beverage plant: Purified water for drink, sauce and food processing
• Small workshop, laboratory: Water for experiment, equipment cleaning and circulation
• Mini bottled water filling, commercial drinking water supply

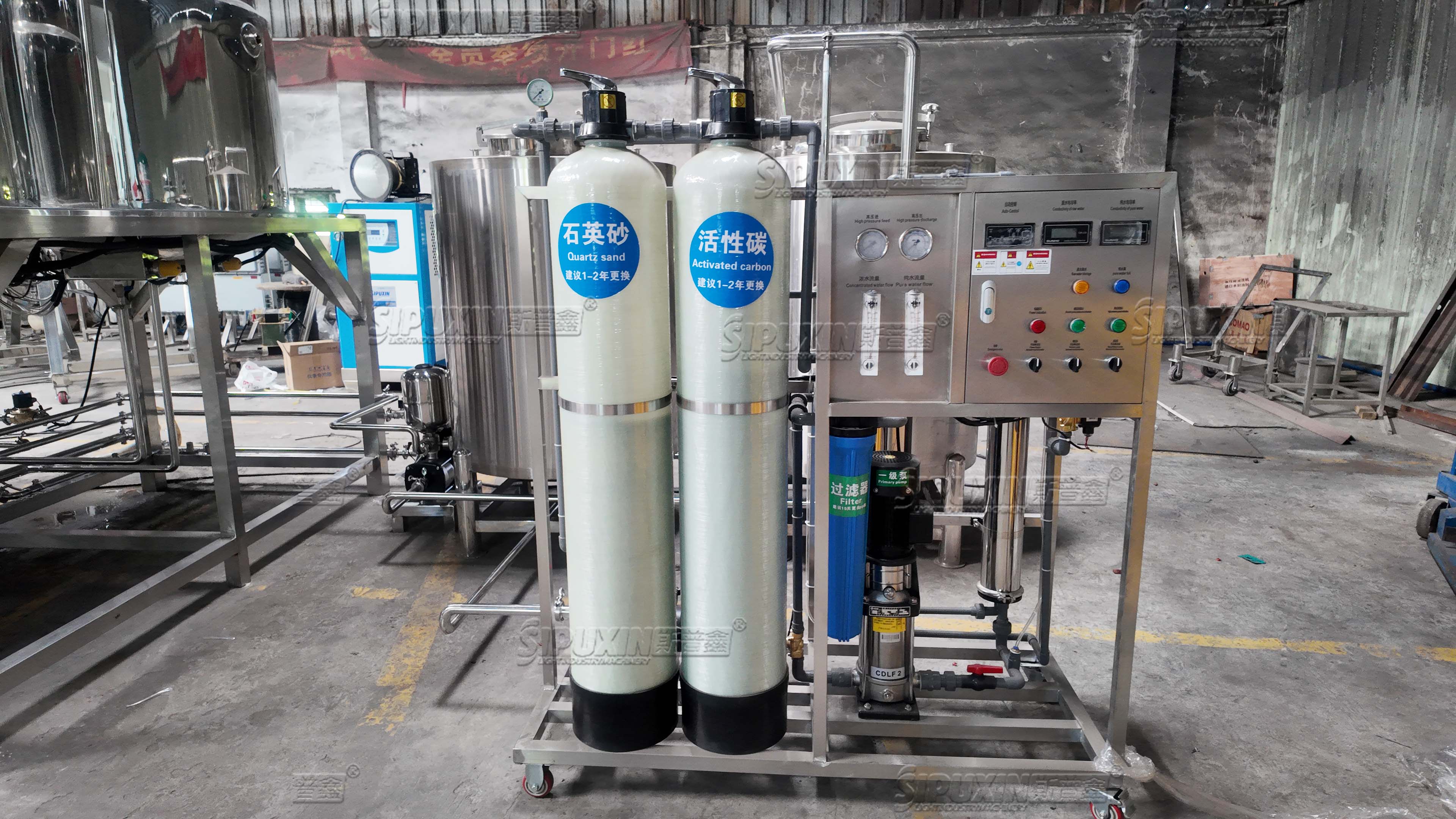

Machine Composition
1. Pre-filtration tanks: Quartz sand filter tank, activated carbon filter tank
2. Precision security filter

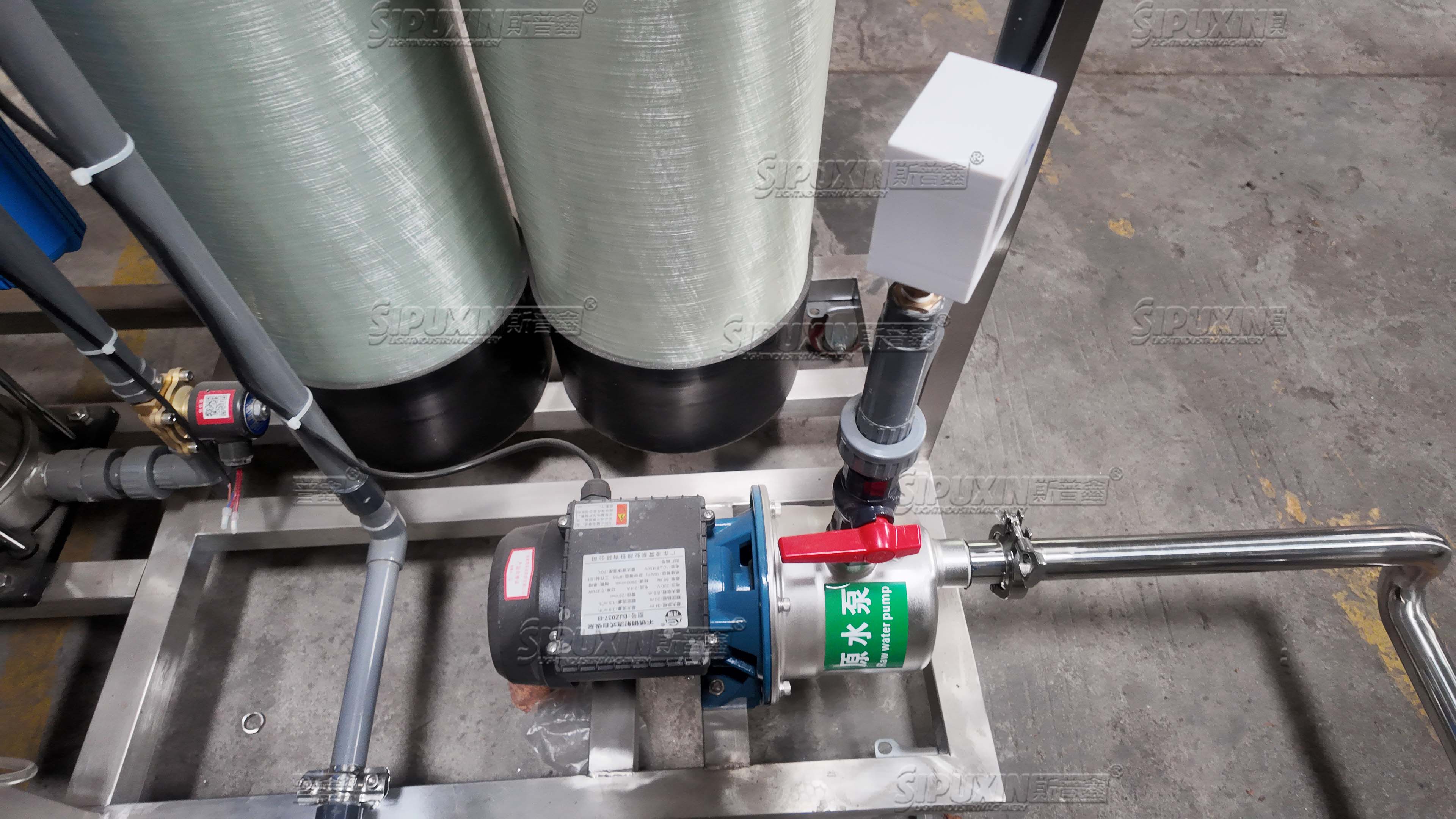

3. High-pressure booster pump
4. Single-stage RO membrane assembly with PVC pipeline
5. Stainless steel integrated frame with moving wheels
6. Intelligent control cabinet, pressure gauges and regulating valves
| Item | Specification |
|---|---|
| Model | SPX-RO-500L |
| Capacity | 500 L/H |
| Process | Single Stage Reverse Osmosis (RO) |
| Pipeline Material | PVC Anti-corrosion |
| Pre-treatment | Quartz Sand Filter + Activated Carbon Filter + Precision Security Filter |
| RO Membrane | 1pc 4040 RO Membrane |
| Booster Pump | High-pressure Vertical Pump |
| Control Mode | Automatic Electric Control with Pressure Gauges |
| Power | 1.5 KW |
| Voltage | 220V/380V (Customizable) |
| Desalination Rate | ≥97% |
| Frame Material | Carbon Steel Spray Plastic / Stainless Steel Optional |
| Overall Dimension | L1400W700H1600 mm |
| Net Weight | Approx. 220 KG |
| Certification | CE Certified |
| Warranty | 1 Year Whole Machine |
