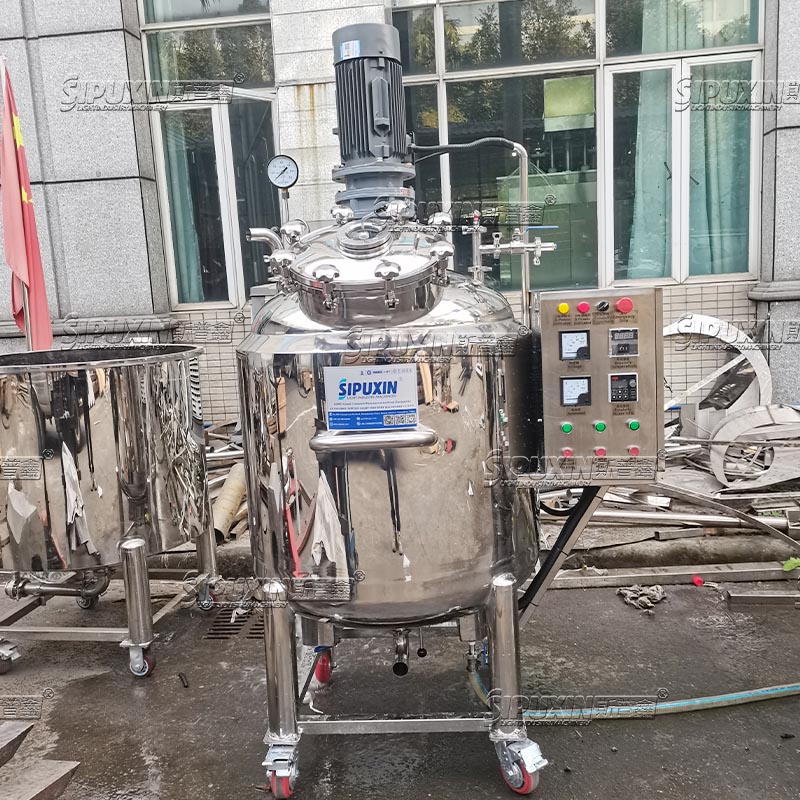

300L Electric Heating Moveable Mixing Tank
SPX-M0723
300L Electric Heating Movable Mixing Tank is an integrated processing equipment combining electric heating, temperature control, mechanical stirring and flexible transfer. It is designed for heating, dissolving, mixing, blending and thermal preservation of liquid, semi-liquid and paste materials in small & medium batches.
Quantity:
Technical Parameters
| Item | Standard Specification | Optional Configuration |
|---|---|---|
| Effective Volume | 300L | Customized: 200L / 500L |
| Tank Material | SUS304 Stainless Steel | SUS316L Stainless Steel |
| Heating Power | 9kW | 6kW / 12kW /15kW optional |
| Temperature Range | Room temperature ~ 180℃ | Up to 250℃ for thermal oil heating |
| Temperature Accuracy | ±2℃ | ±1℃ high-precision thermostat |
| Stirring Motor Power | 1.5kW | 0.75kW / 2.2kW / 3kW optional |
| Stirring Speed | 0~60 rpm (Variable Frequency) | 0~120rpm with high-speed homogenizer |
| Stirring Paddle | Anchor type | Paddle / Ribbon / Turbine type |
| Power Supply | 380V/50Hz, 3 Phase | 220V single phase |
| Mobile Wheel | 4-inch PU caster with brake | Heavy-duty stainless steel casters |
| Control System | Button control panel | PLC touch screen control |
| Optional Function | Normal pressure type | Vacuum system, explosion-proof motor, CIP cleaning |
