200L SS316 Perfume Making Machine Pneumatic Stirring Refrigeration Aging Dual-Stage Filtration Equipment For Cologne Floral Water Production

author: Bella zhu

2026-07-04

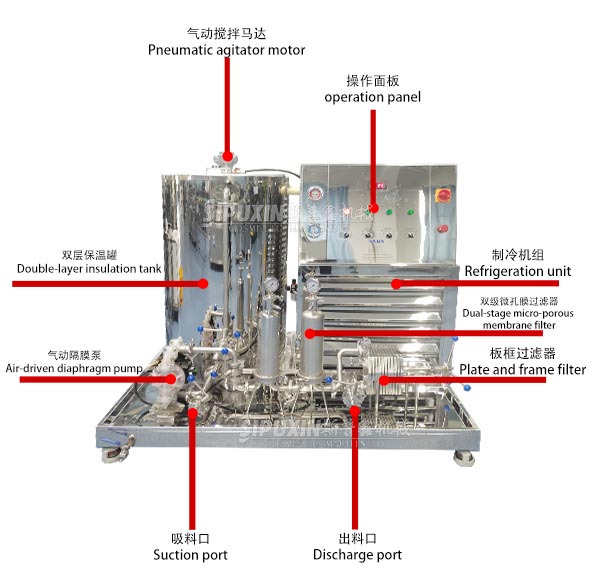

Machine composition

1. Pneumatic agitator motor: spark-free pneumatic stirring for flammable perfume liquid

2. Double-layer insulation tank: 200L SS316 mirror polished storage tank for heat preservation

3. Operation panel: digital temperature display, running indicator & emergency stop button

4. Refrigeration unit: adjustable low-temperature system for perfume aging

5. Air-driven diaphragm pump: closed liquid circulation & material transfer

6. Plate and frame filter: primary coarse filtration to remove large impurities

7. Dual-stage micro-porous membrane filter: fine filtration to eliminate wax crystal & tiny sediment

8. Suction port: raw perfume liquid feeding inlet

9. Discharge port: outlet for finished filtered perfume

Usage and Application

It realizes automatic mixing, low-temperature freezing aging and dual-stage circulating filtration in one closed unit.

Specially designed for perfume, cologne, floral water and other alcohol-containing aromatic liquids.

Widely used in daily chemical cosmetic factories, fragrance processing plants and perfume laboratories.

Core Advantages

1. Full pneumatic driving system, no electric spark, safe for alcohol flammable raw materials

2. Integrated mixing, refrigeration and filtration, compact all-in-one design, easy to operate

3. Double-layer SS316 anti-corrosion insulation tank, mirror polishing, no liquid contamination

4. Adjustable 0–25℃ low-temperature aging system to improve fragrance stability

5. Two-stage combined filtration, effectively remove wax crystal, sediment and fine impurities for transparent perfume

6. Totally closed circulation pipeline, reduce volatile essence loss and raw material waste

7. Easy disassembly filter elements, convenient cleaning and maintenance, long service life

8. Low noise & energy-saving operation

Item	Specification
Model	SPX-PF200 200L Perfume Machine
Effective Volume	200L
Tank Material	SS316 stainless steel
Temperature Control Range	0℃ ~ 25℃ adjustable
Filtration Precision	0.2μm / 0.45μm / 1μm optional
Stirring Mode	Pneumatic agitator motor
Circulation Pump	Air-driven diaphragm pump
Total Power	3.8 KW
Driving Mode	Pneumatic + Electric
Control System	Digital temperature operation panel
Optional Upgrade	PLC touch screen, automatic feeding system
