2000L Single Layer Homogenizer Mixing Tank For Shampoo Shower Gel Liquid Soap Production

author: Elaine Yao

2026-07-11

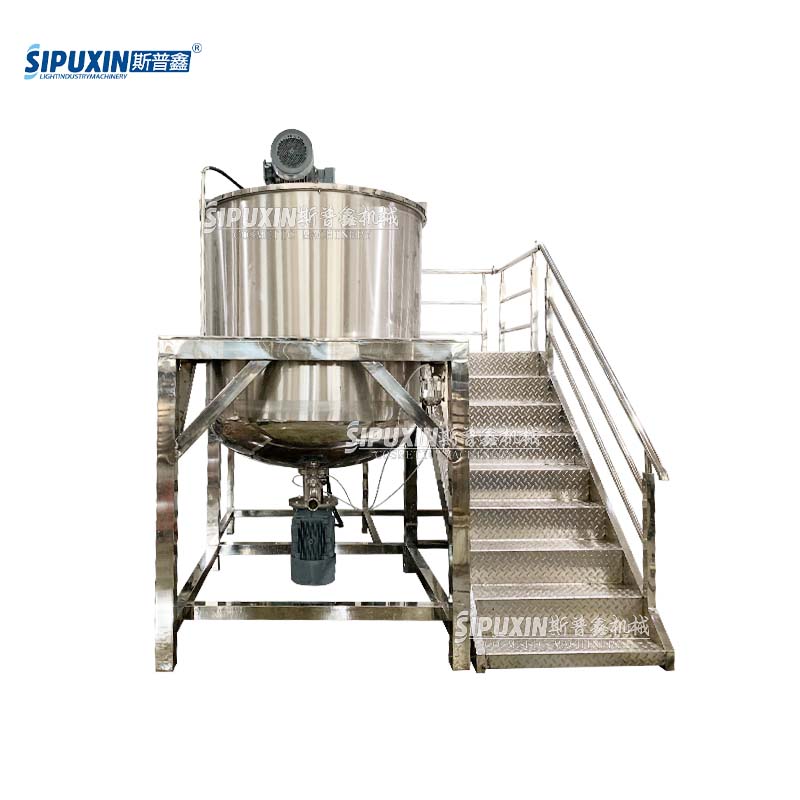

Sipuxin_2000L single layer homogenizing mixing tank

Machine introduction

1. Tank Body & Material

Main tank is integrally fabricated with food-grade SUS304 stainless steel; SUS316L is optional for pharmaceutical & high hygiene production.
Inner wall mirror polished (Ra≤0.8μm), seamless and no sanitary dead corners, easy to rinse and avoid material residue.
Single-layer design without heating/cooling jacket, dedicated to room-temperature liquid mixing to cut extra energy cost.

2. Dual Stirring & Homogenizing System

Top anchor low-speed agitator (20–60 RPM adjustable) fits closely to tank wall to stop materials sticking and realize overall even mixing.
Bottom high-shear homogenizer (0–3000 RPM adjustable) breaks raw material lumps for fine dispersion and emulsification.
Two motors with independent frequency converters; stirring and homogenizing speed can be set separately without mutual interference.

3. Complete Supporting Structure

Heavy-duty stainless steel support frame with strong shock resistance for stable long-time running.
Standard matched anti-slip platform, guardrail and climbing stairs for safe and convenient top feeding & inspection.
Bottom manual ball valve for discharging; pneumatic automatic discharge valve is available as upgrade.

4. Intelligent Control System

Independent PLC touch screen control cabinet with visualized operation panel.
Support one-key start/stop, timing setting, real-time speed display and overload alarm protection.
Equipped with leakage protection, emergency stop button and motor overload protection for safe operation.

5. Application Range

Daily chemical: shampoo, shower gel, hand sanitizer, detergent, disinfectant.
Cosmetic: facial toner, plant extract, low-viscosity water-based lotion.
Food industry: fruit syrup, thin beverage, low-thickness sauce.

6. Optional Customized Functions

Weighing batching system, vacuum defoaming unit, CIP automatic cleaning spray ball.
Feeding transfer pump, explosion-proof motor, larger tank volume or thicker stainless steel plate.

7. Factory & After-sales Advantage

Direct manufacturer with 25 years light machinery production experience, every machine fully tested before delivery.
1-year whole machine warranty (excluding wearing parts like homogenizer sealing rings).
Supply English operation manual, operation video and lifetime technical support & spare parts supply.

Model		SPX-50	SPX-100	SPX-150	SPX-200	SPX-250	SPX-300	SPX-350	SPX-450
Emulsification fineness(um)		2-50	2-50	2-50	2-50	2-50	2-50	2-50	2-50
Production capacity(T/h)		0.01-0.1	0.5-2	0.8-5	2-7	4-15	6-20	8-30	10-40
Motor	Power (Kw)	1.5	5.5	11	18.5	37	55	75	110
Motor	Voltage(V)	220	380	380	380	380	380	380	380
Grinding disc dia.(mm)		50	100	150	200	250	300	350	450
Discharge gate dia.(mm)		15	32	40	65	75	85	85	90
Feed inlet dia.(mm)		32	50	80	120	140	159	159	168
Water-cooling tube dia.		1/8''	1/4''	1/4''	1/4''	1/4''	1/4''	1/4''	1/4''
