1000L Stationary Vacuum Emulsifier Complete Production Line with RO Water Treatment
author: Elazai
2026-07-11
1.Solution Overview
High-quality cosmetic, skincare, pharmaceutical ointment, and food paste production requires stable emulsification, qualified purified water, and precise temperature control throughout the entire manufacturing process. To meet one-stop factory production demands, we provide a complete integrated production system consisting of a vacuum homogenizing emulsifier, RO reverse osmosis water treatment system, and industrial water chiller
This full-set solution covers raw water purification, material pre-mixing, vacuum emulsification, and automatic constant-temperature cooling, forming a closed-loop, standardized, and efficient production line. It is widely applicable for producing cream, lotion, serum paste, hair conditioner, body butter, medical ointment, and various high-viscosity emulsion products.

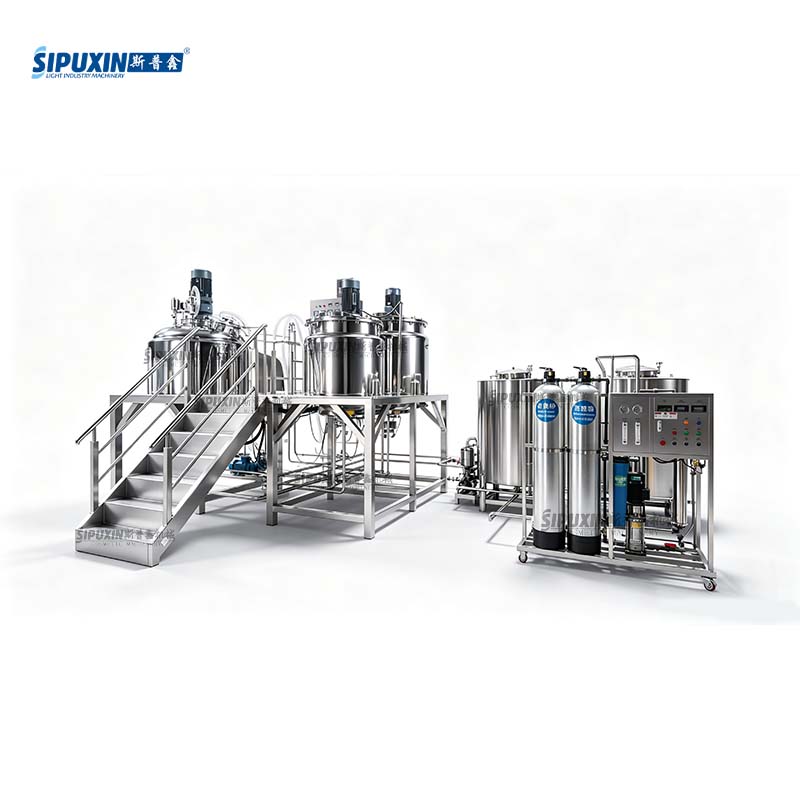

2. Full Equipment Configuration
The complete production unit includes the following core modules:
-

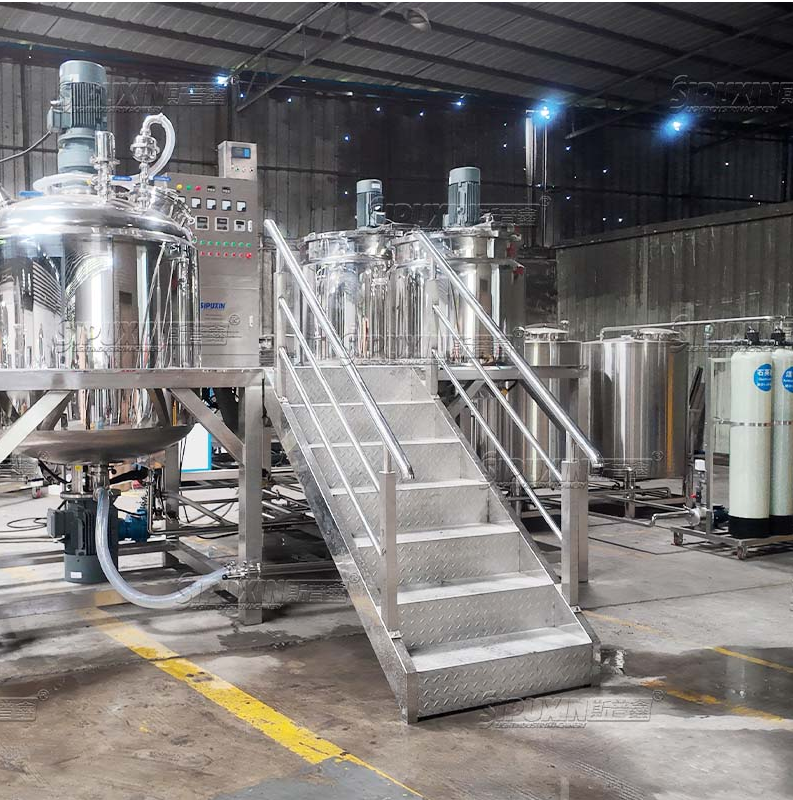

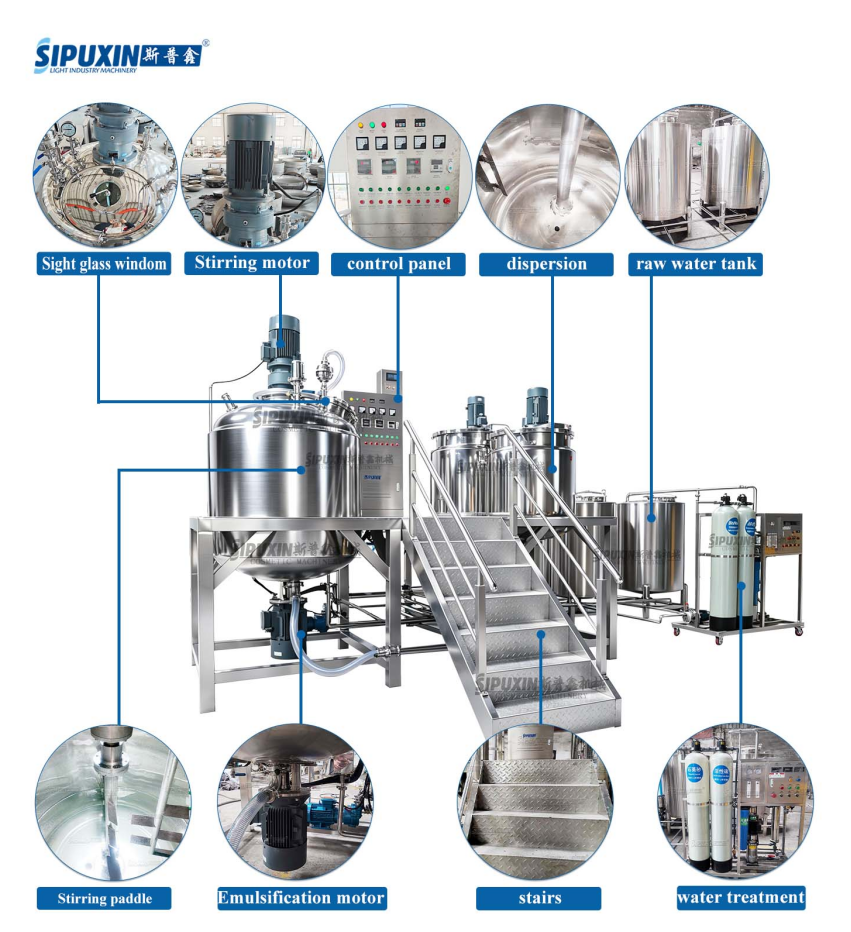

Vacuum Homogenizing Emulsifier Unit (main emulsifying tank + water phase tank + oil phase tank)
-
RO Reverse Osmosis Water Treatment System for cosmetic-grade purified water
-
Industrial Water Chiller Unit for rapid and constant temperature cooling
-
Water storage tanks, pipeline system, electric control system, and operating platform
-
3. Core Equipment Introduction
3.1 Vacuum Homogenizing Emulsifier
The vacuum emulsifier is the core equipment for fine emulsion production. Equipped with a high-speed bottom homogenizer and frame-type stirring system, it realizes strong shear, mixing, dispersion, and emulsification under full vacuum conditions.
Vacuum processing effectively eliminates bubbles, avoids particle agglomeration, and makes the final paste delicate, uniform, and stable without delamination. All material contact parts adopt SUS316L stainless steel, which meets GMP hygiene standards for cosmetic and pharmaceutical factories. The independent temperature and speed control system allows stable parameter storage and batch repeatable production.

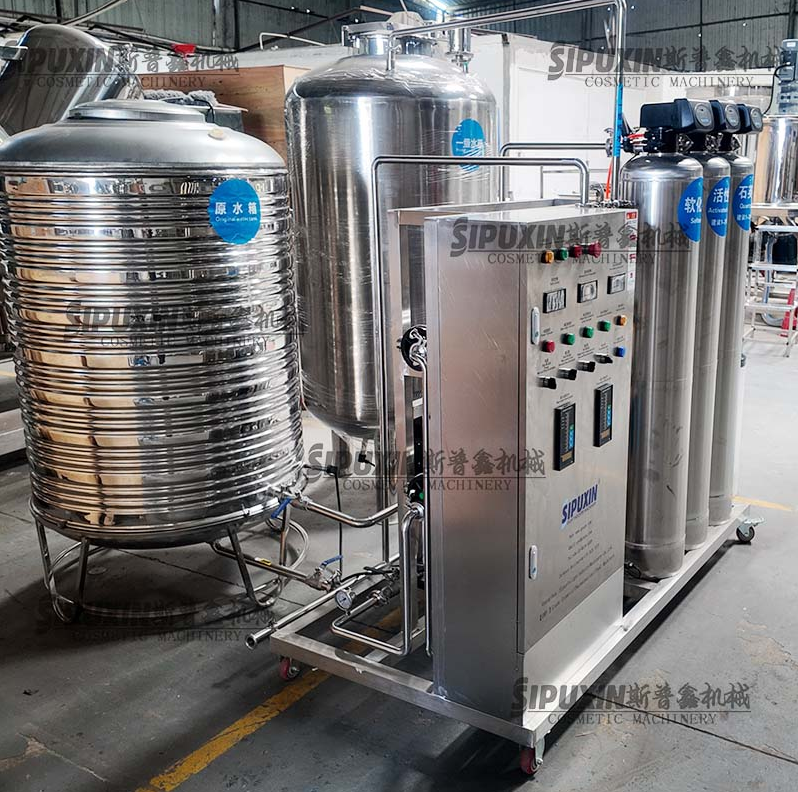

3.2 RO Water Treatment System
Ordinary tap water contains heavy metal ions, bacteria, impurities, and residual chlorine, which easily cause product deterioration, discoloration, odor, and short shelf life for emulsion products.
The RO water treatment system filters and purifies raw water through multi-stage filtration and reverse osmosis technology, removing impurities, microorganisms, and excess ions to produce standard purified water that fully meets cosmetic and pharmaceutical production requirements. The purified water is directly transported to the water phase tank for batching, realizing automatic water supply for the whole production line.

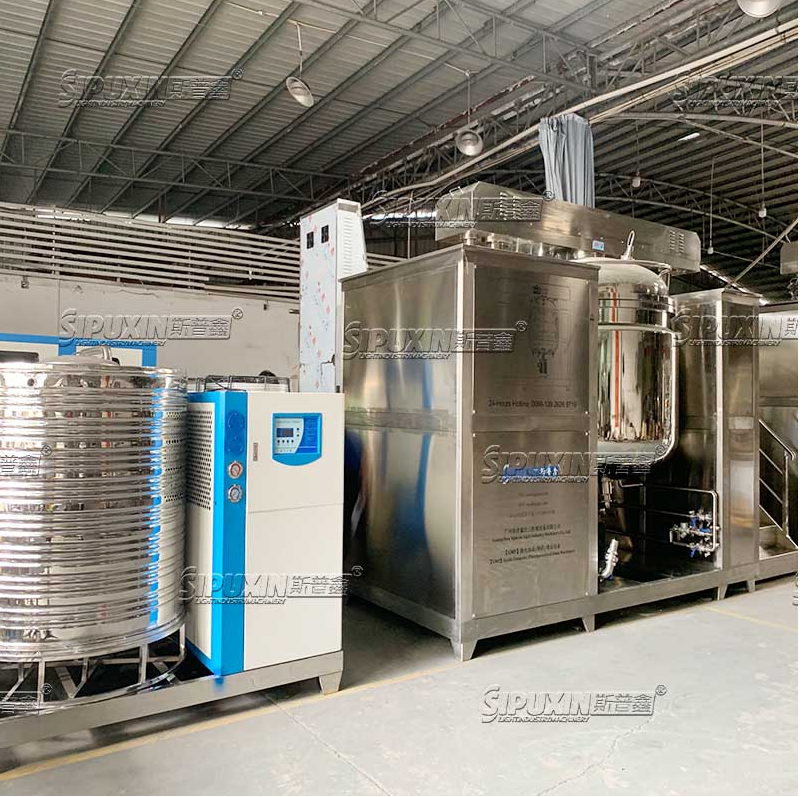

3.3 Industrial Water Chiller
Many emulsification reactions generate heat, and some thermal-sensitive formulas are prone to deterioration, discoloration, or active ingredient loss under high temperature. The supporting water chiller provides circulating constant-temperature cooling for the emulsifier jacket.
It realizes rapid cooling after high-temperature emulsification, shortens production cycle time, improves production efficiency, and ensures the stability and activity of heat-sensitive raw materials. The chiller maintains precise temperature control throughout the batch production, greatly improving product consistency.
4. Complete Working Process
-
Raw tap water is purified by the RO water treatment system into standard production purified water and stored in the water tank.
-
Purified water and oil-based raw materials are separately added into the water phase tank and oil phase tank for heating and pre-mixing.
-
Pre-mixed materials are automatically sucked into the main vacuum emulsifying tank.
-
High-speed homogenizing and stirring are carried out under vacuum to realize ultra-fine emulsification.
-
The water chiller starts circulating cooling to quickly lower the material temperature to the standard discharging temperature.
-
Finished paste is discharged and transferred to the filling and packaging process.
5. Application Scope
-
Cosmetics & Skincare: face cream, body lotion, hand cream, essence paste, mask cream, hair conditioner, hair mask
-
Pharmaceutical: medical ointment, antibacterial cream, external skin preparation
-
Daily Chemicals: cleaning paste, emulsified detergent products
-
Food Industry: sauce, cream, emulsified food ingredients
6. Solution Advantages
-
Full-process matching: Emulsification + water purification + constant temperature cooling three-in-one complete line, no need for separate equipment selection and complicated matching
-
Stable product quality: Standard purified water + vacuum emulsification + precise temperature control effectively avoid delamination, bubbles, deterioration and short shelf life
-
High production efficiency: Integrated automatic pipeline conveying reduces manual operation and shortens production cycle
-
GMP compliant: Full stainless steel hygienic design, easy cleaning, no dead corners, suitable for standardized workshop production
-
Flexible expansion: The modular design supports capacity upgrading and function expansion according to customer factory scale
7. Summary
The combination of vacuum emulsifier, RO water treatment system, and industrial chiller forms the most scientific and standard production configuration for cream and lotion manufacturing. It solves the common pain points of unstable water quality, uncontrollable temperature, and uneven emulsification in small and medium factories, helping customers achieve standardized, high-efficiency, and high-quality batch production.
